Adjustable Roll Feeding D Cut Square Bottom Paper Bag Making Machine 15KW Voltage 380V
Price:
$90,000.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
XUANHAI
Product Description
Product Description
Properties and uses：
Machine use roller paper, from primary color paper or printed web paper to square bottom paper bag one times production.The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production.
This machine is composed of roll unwinding (hydraulic feeding, automatic web guide, constant tension), side gluing, printing electric eye tracking, base paper into cylinder, fixed-length traction cutting, bag bottom indentation opening, bag bottom gluing, bag bottom molding, bag sending etc.The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
It can pretend 2 color /4 color printing group, bag surface window lamination device and handgrip hole device according to yourneed.
Can be matched with rope twisting, flat rope handlebar machine, rewinding machine, etc., to make the products more competitive and diversified.
This machine is composed of roll unwinding (hydraulic feeding, automatic web guide, constant tension), side gluing, printing electric eye tracking, base paper into cylinder, fixed-length traction cutting, bag bottom indentation opening, bag bottom gluing, bag bottom molding, bag sending etc.The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
It can pretend 2 color /4 color printing group, bag surface window lamination device and handgrip hole device according to yourneed.
Can be matched with rope twisting, flat rope handlebar machine, rewinding machine, etc., to make the products more competitive and diversified.
TECHNICAL PARAMETER | ||
Model | 330D | |

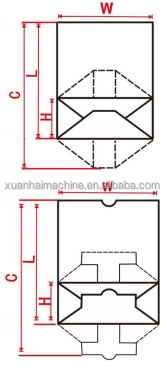

Paper Roll Length | 270-530mm（C） | |
Paper bag length | 225-470mm （L） | |
Paper bag width | 150-330mm （W） | |
Paper bag bottom width | 60-160mm （H） | |
Paper thickness | 80-160g/m2 | |
Die Cut Bag Width | 190-330mm | |
Die Cut Size | 80/90mmx30mm | |
Patch Paper Thickness | 100-150g/m2 | |
Patch Film Thickness | 0.3-0.6mm | |
Patch Paper Roll Width | 150mm | |
Patch Paper Roll Unwinding Diameter | 500mm | |
Max Bag Making Speed | 30-160pcs/min | |
Paper roll width | 450-1050mm | |
Roll paper diameter | 1200mm | |
Diameter of paper core | 76mm（3”） | |
Machine power | 3phase,380v ,15kw | |
Machine weight | 8000kg | |
Machine size | 10500x3700x1900mm | |
Electrical Components List
Name | Qty | Original | Brand | |||||
Control System | ||||||||
PLC SPOT Control | 1 | Japan | Mitsubishi | |||||
Touch Screen | 1 | Taiwan | Weinview | |||||
Servo Motor | 2 | Japan | Mitsubishi | |||||
Servo Drive | 2 | Japan | Mitsubishi | |||||
Counting Servo Motor | 1 | Japan | Mitsubishi | |||||
Counting Servo Driver | 1 | Japan | Mitsubishi | |||||
Bag Forming Inverter | 1 | Japan | Mitsubishi | |||||
Printing Tracking Electric Eye | 1 | German | SICK | |||||
Low Voltage Electrical Appliances | 1 | French | SCHNEIDER | |||||
Pneumatic components | 1 | Taiwan | AirTAC | |||||
Automatic Lubricator | 1 | China | ||||||
D-cut Control | ||||||||
Slitting Servo Drive | 2 | Japan | Mitsubishi | |||||
Positioning Patch Servo Motor | 2 | Japan | Mitsubishi | |||||
Positioning Patch Servo Drive | 2 | Japan | Mitsubishi | |||||
Gluing Position Servo Motor | 1 | Japan | Mitsubishi | |||||
Gluing Position Servo Drive | 1 | Japan | Mitsubishi | |||||
D cut Punching Position Servo Motor | 1 | Japan | Mitsubishi | |||||
D cut Punching Position Servo Drive | 1 | Japan | Mitsubishi | |||||
D cut Puncher | 1 | China | XK | |||||
Unwinding Air Shaft | 2 | China | ||||||
Magnetic Powder Brake | 2 | China | ||||||
Web/Tension Control System | ||||||||
Web Guide Control System | 1 | German | BEDOOK | |||||
Unwinding Paper Roll Air shaft | 1 | China | ||||||
Magnetic Powder Brake | 1 | China | WEIZHENG | |||||
Drive | ||||||||
Synchronous Belt | 1/set | China | BELDI | |||||
Synchronous Pulley | 1/set | China | HW | |||||
Bear | 1/set | China | LYC | |||||
Guide Roll | 1/sett | China | BAIXIAO | |||||
Gear | 1/set | China | HW | |||||
Glue Part | ||||||||
Bottom Glue Equably Motor | 1 | China | ||||||
Pneumatic Ink Separator Pump | 1 | China | ||||||
Middle/ Edge Water Rubber Gun | 1 | China | ||||||
Water Glue Pressure Bucket | 1 | China | HW | |||||
Details Images
More Products
Company Profile
Our Team
Exhibition
Clients
Packing & Delivery
FAQ
Q1:Where is your factory located? How can I visit there? A1: Our factory is established from 1988,located in Rui an,Wenzhou City, Zhejiang Province, China, about 1 hour by air and 3-4 hours by train from Shanghai. Q2: How does your factory do regarding quality control? A2: All machines are doing 24 hours running test to ensure quality. Q3: How about the payment term? A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory. Q4:What about warranty and do the engineers available to overseas? A4: one year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side. salary USD100/day. Q5:What about the service after sale? A5: we can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have english,spanish speaker. Q6: Do you need agent for overseas? A6: yes,we need you to be our agent. welcome to contact us.
