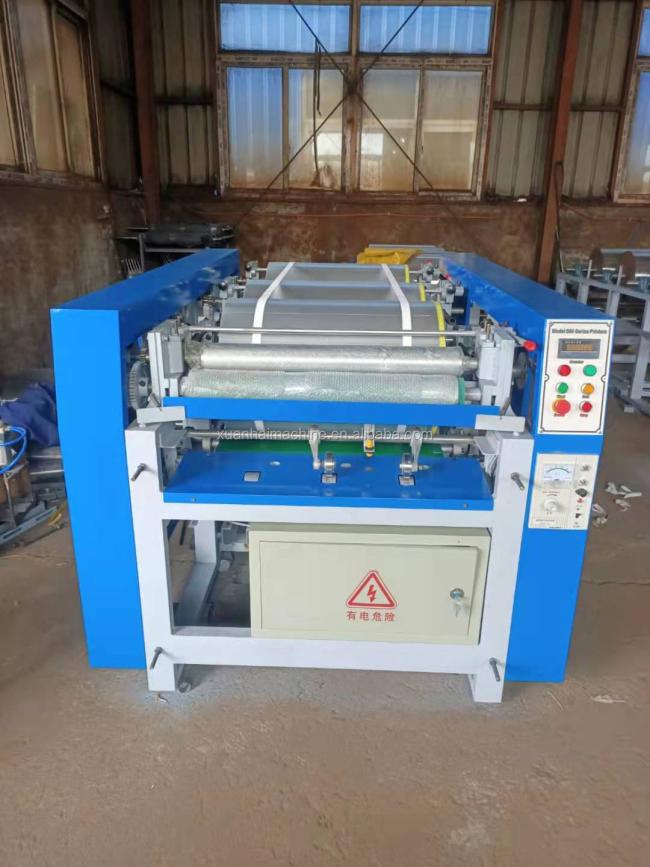

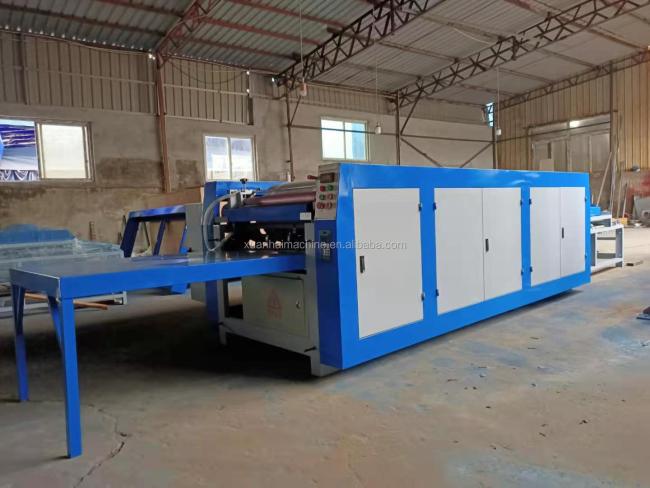

BIG paper bag sheet plastic bag printing machine
Price:
$2,000.00 - $5,000.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
XUANHAI
Product Description
Product Description
main parameters: 1. Machine model: 890 mm 2 Width of printing material: 880 mm 3. Printing width (width of printing roller surface): 650mm 3. Printing length: 1200mm 4. Printing speed: 2500-3000pcs/h 5. Template thickness (including double-sided tape): 4-6mm Two: unwinding part 1. 1 unwinding table Three: Traction part 1. Traction composition: rubber wheel chrome-plated roller 2. Number of groups: 1 group Four: Printing part 1. Printing composition: chrome plated roller anilox roller rubber roller 2. Circumference of plate roller: 1250mm 3. Printing plates: resin plates or offset plates 4. Transmission mode: gear driven 5. Off-reliance version adjustment: Manual 6. Ink cartridge device: manual Five, printing and conveying part 1. Embossing roller: 1 color and 1 strip Six: Motor part 1. Main motor: 3kw 2. The host uses a governor to control speed Seven: Receiving part 1. 1 table Eight: Main detailed configuration list 1. Main motor (speed regulation): 1 piece 3W (Jiangsu Nanhua) 2. Speedometer: 1 (Kezheng) 3. Aluminum guide roller: (Ruian) 4. Metal anilox roller: 1 color and 1 strip 5. Rubber roller: 1 color and 1 strip 6. Embossing roller: 1 color and 1 strip 7. Low-voltage electrical appliances: (China Chint) 8. Switch: (China Chint) 9. Electrical control box: 1 set (self-produced) 10. 1 set of main frame (self-produced) 11. Pneumatic components: (Orekai) 12. Power supply voltage: three-phase 380v
product details
More Products
Company Profile
Our Team
Packing & Delivery
FAQ
Q1:Where is your factory located? How can I visit there? A1: Our factory is established from 1988,located in Rui an,Wenzhou City, Zhejiang Province, China, about 1 hour by air and 3-4 hours by train from Shanghai. Q2: How does your factory do regarding quality control? A2: All machines are doing 24 hours running test to ensure quality. Q3: How about the payment term? A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory. Q4:What about warranty and do the engineers available to overseas? A4: one year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side. salary USD100/day. Q5:What about the service after sale? A5: we can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have english,spanish speaker. Q6: Do you need agent for overseas? A6: yes,we need you to be our agent. welcome to contact us.
