40mm 12V Coreless Brushless Motor 70W 8020rpm Long Lasting For Medical Equipment

40mm Coreless Motor 12V to 48V Slotless Brushless DC Motor Zero Cogging Micromotor 70W 8020rpm Customizable

Product Tag: 40mm Coreless Motor , 40mm Low Cogging Motor , 40mm Cogging Free Motor , 40mm Zero Cogging Motor , 40mm Ironless Motor ,  40mm Slotless Motor , 40mm Slotless Brushless Motor , 40mm Slotless Brushless DC Motor , 40mm Brushless DC Slotless Motor , 40mm Slotless BLDC Motor , 40mm BLDC Slotless Motor , 40mm Coreless Brushless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Slotless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Motor , 40mm Brushless DC Motor, 40mm DC Brushless Motor, 36mm Brushless Electric Motor , 40mm BLDC Motor , 40mm Brushless DC Electric Motor , 40mm Sensored Brushless Motor , 40mm Sensorless Brushless Motor

Introducing our compact Ø 40mm Slotless Brushless DC Motor, available in both sensorless and sensored configurations. Customization options are plentiful; we tailor the motor precisely to your specifications and dimensions.

Unlike traditional iron core brushless motors, this coreless brushless motor boasts a unique design without an iron core.

This innovative approach enhances efficiency and performance.

Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.

These 40mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.

To see the product catalogue on our Slotless BLDC Motor  Φ12-40mm , please

                 Check Here and download.

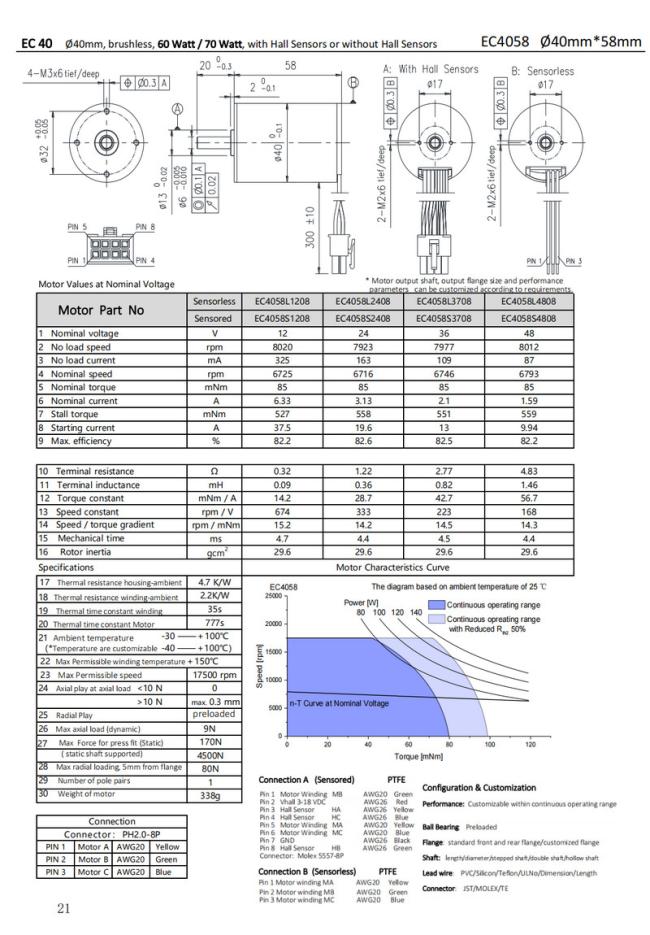

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
