Slotless Brushed DC Motor 22mm 5.37 Watt 7430rpm 6V Custom Brushed Servo Motor

22mm Brush DC Motor Slotless Type 5.37 Watt 7430rpm 6V to 48V Customizable

Product Tag: 22mm Electric Motor, 22mm Brush Motor, 22mm Micro Motor, 22mm Micromotor, 22mm Brushed Motor, 22mm DC Motor, 22mm Coreless Motor, 22mm Brush DC Motor, 22mm Coreless DC Motor, 22mm DC Coreless Motor, 22mm Brushed DC Motor

• Coreless windings are key to the precision coreless motors (micro motors) we offer.
• Our design combines a symmetrical winding, commutator, and motor shaft to ensure smooth operation and reduce vibrations.
• These coreless motors provide several benefits, like low inertia for fast acceleration, high efficiency, no cogging, and steady linear output. They are also great for speed control and servos.
• Our collection of brush-type coreless motors ranges from 8 mm to 40 mm in diameter, and we can easily customize sizes to meet your needs.

If you're currently using coreless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.

Key Specifications for this Ø22mm Coreless DC motor

• Motor Dimension: 22mm (motor diameter)*32mm (body length)
• Rated Voltage: 6V to 48V DC or Customized
• Rated Torque: 4.05mNm to 7mNm or Customized
• Rated Speed: 4650rpm to 7430rpm or Customized
• Rated Power: 5.37W or Customized
• Can be assembled with gearboxes, brakes and encoders.

To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please

            Check Here and download.

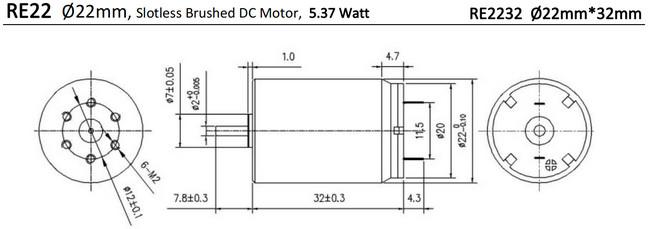

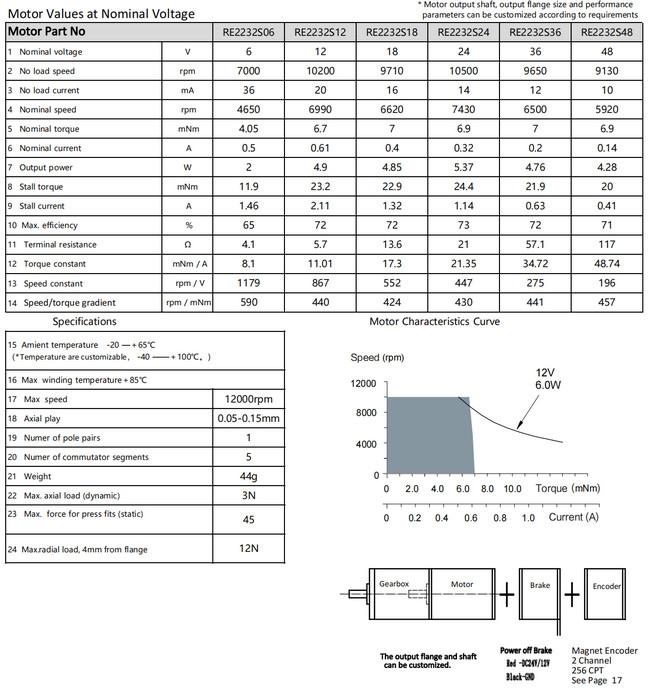

Please review the standard data and dimensions of the motor below.

Please note that we can provide deep customization based on your size and data requirements.
