22mm Coreless Motor Brush Type 9.2 Watt 10000rpm 6V to 48V Customizable

Product Tag: 22mm Electric Motor, 22mm Brush Motor, 22mm Micro Motor, 22mm Micromotor, 22mm Brushed Motor, 22mm DC Motor, 22mm Coreless Motor, 22mm Brush DC Motor, 22mm Coreless DC Motor, 22mm DC Coreless Motor, 22mm Brushed DC Motor

• Discover the importance of coreless windings in our precision coreless motors (micro motors).
• With an integrated design that includes a symmetrical winding, commutator, and motor shaft, these motors guarantee smooth and stable operation with minimal vibration.
• Enjoy the advantages of our coreless motors, such as quick acceleration due to low inertia, high efficiency, no cogging, and consistent linear output. They excel in speed regulation and servo applications, making them a versatile choice for various needs.
• Our brush-type coreless motors come in sizes ranging from 8 mm to 40 mm in diameter, and we’re happy to create custom sizes based on your specifications!

If you're currently using coreless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.

Key Specifications for this Ø22mm Coreless DC motor

• Motor Dimension: 22mm (motor diameter)*32mm (body length)
• Rated Voltage: 6V to 48V DC or Customized
• Rated Torque: 9mNm or Customized
• Rated Speed: 9450rpm to 10000rpm or Customized
• Rated Power: 9.2W or Customized
• Can be assembled with gearboxes, brakes and encoders.

To see the product catalogue on our  Brush Coreless Motor Φ8-40mm , please

            Check Here and download.

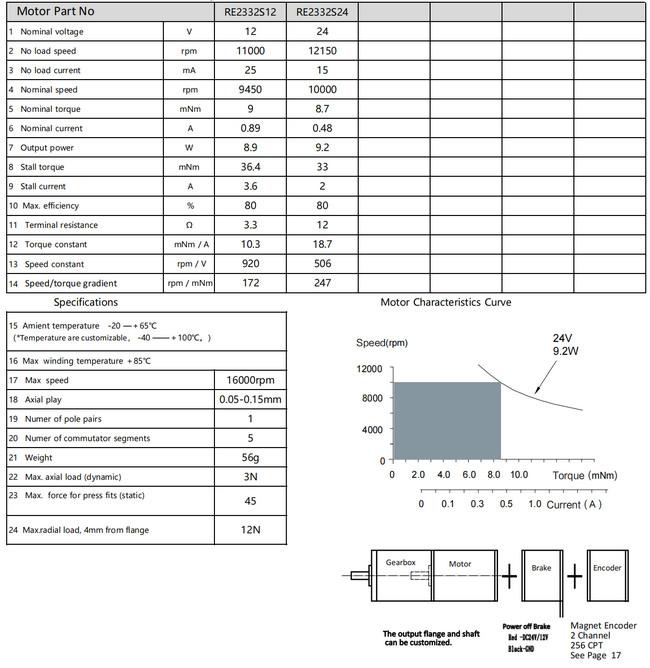

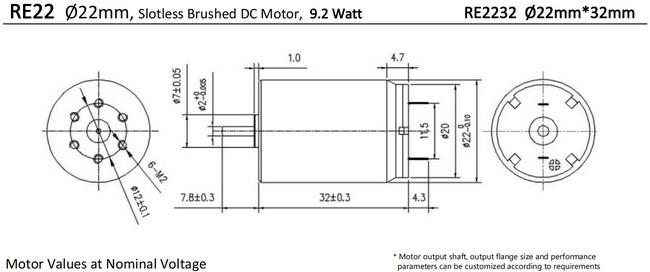

Please review the standard data and dimensions of the motor below.

Please note that we can provide deep customization based on your size and data requirements.
