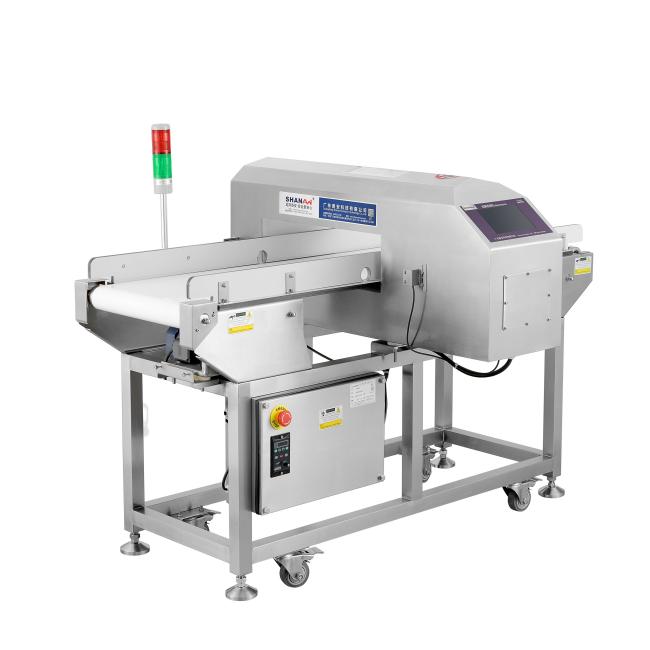

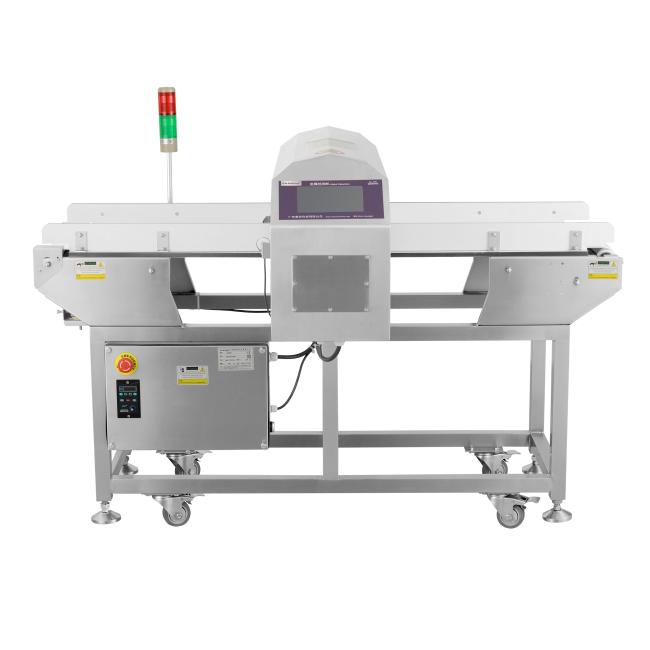

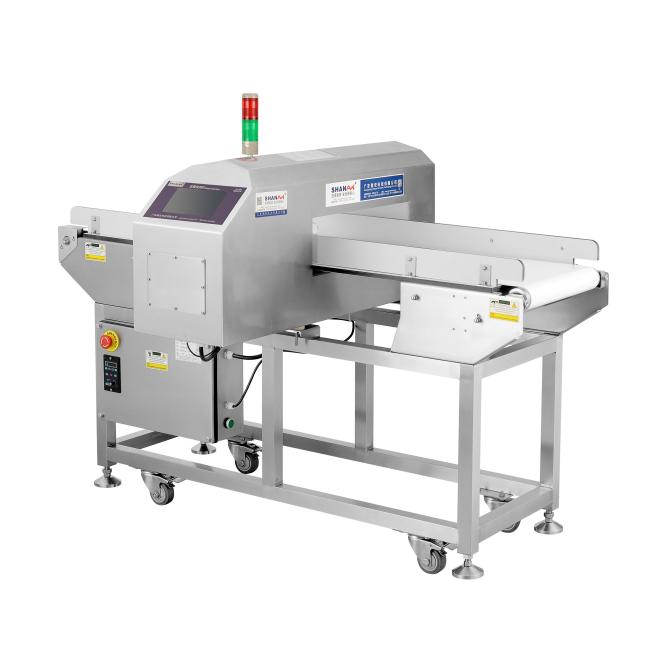

High Sensitivity Conveyor Belt Food Grade Metal Detector For Bakery / Meat Industry
High Sensitivity Conveyor Belt Food Grade Metal Detector For Bakery / Meat Industry
Basic information :
Self-frequency adjustment .Enjoys a variety of operating frequency, According to products style self automatic adjustment.stable features.
self-learning function and high sensitivity.can recognize different kinds of products.
Can store and records about 100 product parameter data .easy for different production line shift
Can according to customer production line design the belt height so achieve butt-joint .
other equipment:
- Two digital collection line keeps it good performance .
- Full Digital touch screen help it is easy to operate .
- Special design for strong anti-interference function for harsh production environment
- High standard shake-proof .water-proof keep it super performance and long service life.
- Improve design keep it Zero wrong alarm when tap the probe.
- succinctly detachable framework design let it easy for the operators to clean the equipment.
Reject system :
| Standard layout | Automatic stop by alarm and so on |
| Optional | Air blast (Especially for light food, like instant noodle.Small punches.) |
| Optional | Push rod(Especially for middle bag,small box.small container and so on) |
| Optional | Fall drop(Especially for some grain.nut.granule .and so on unpack products) |
Application :
| Food industry |
| Medical industry |
| Food additives |
| Baby products |
|
Other industry that need reject and detect metals |
Standard replace use Layout parts :
- One set of hex wrench
- Full sets of the range calibration test cards(Ferrous,non-ferrous ,Stainless steel)
- Warranty
- 12month labor and parts
- Full life technical support
- Packing and shipment
- Full machine takes of two layer package
- Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
- Eng package takes of Strong ploy wooden case that meet different country import standard
- Installation and use
- When you takes of the package .up the rubber base ,use wheel move it to your work place.
- Then down the rubber base and fasten it..keep all the base in a horizontal
- Then running the machine few hours before use ,No need complex installation .
- The user guide will make in book and Videos for customer reference .
Sensitivity reference:
|
Details Tunnel size |
40*12cm | 40*15cm | 40*20cm | 50*15cm | 50*20cm | 50*25cm | 50*30cm |
| Sensitivity Fe(mm) | 0.8 | 1.0 | 1.2 | 1.0 | 1.2 | 1.5 | 2.0 |
| Sensitivity SUS(mm) | 1.5 | 2.0 | 2.5 | 2.0 | 2.5 | 3.0 | 3.5 |
| Detection height | 120 | 150 | 200 | 150 | 200 | 250 | 300 |
| Detection width | 400 | 500 | |||||
| Belt speed |
10-35 meters per minute adjustable |
||||||
| Alarm method | Light and sound and optional reject | ||||||
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
