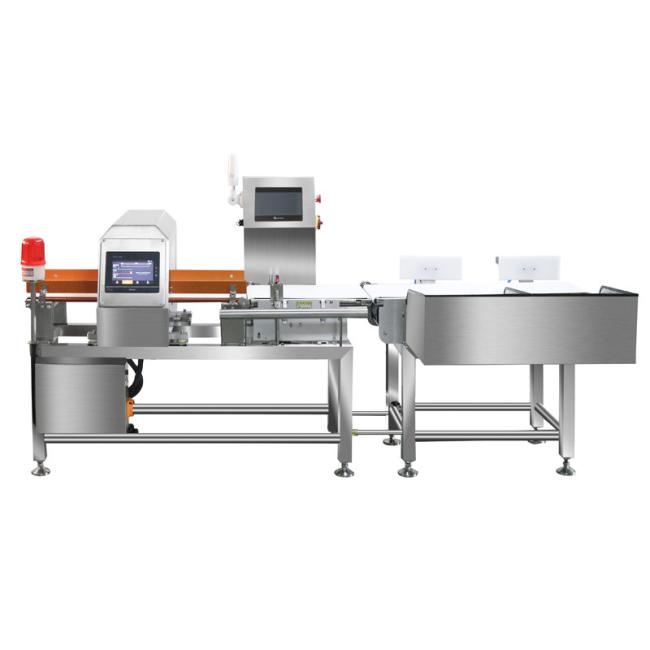

Stainless Steel Food Grade Metal Detector Adjustable Running Speed
Metal Detection Food Grade Metal Detector / Adjustable Running Speed
QUICK TO KNOW
Specification:
| Detected Height(mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
| Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
| Length(mm) | 1350 | ||||||
|
Detecting sensitivity(mm) |
Fe 0.8 | Fe 1.0 | Fe 1.2 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 |
| SUS 1.0 | SUS 2.0 | SUS 2.5 | SUS 2.5 | SUS 3.0 | SUS 3.5 | SUS 4.0 | |
| N-Fe 1.0 | N-Fe 1.5 | N-Fe 2.0 | N-Fe 2.0 | N-Fe 2.5 | N-Fe 3.0 | N-Fe 3.5 | |
| Speed of belt |
25-38M/min (Fixed speed) ; |
||||||
| Load ability | 20KG | ||||||
| Count function | 100 | ||||||
| Warning method | Atomatically with sound and light alarm | ||||||
| Reject Ways | Push rod or customized | ||||||
| Application | Fe, Non- Fe, Stainless steel inspection | ||||||
| Work Environment | Temperature -10℃-40℃ ,relative humility 20-95% | ||||||
Product advantages:
◆ Mechanism exported from Germany, Dual-channel metal detection system. Coil with a rectangular aperture (no points).
◆ Control system: ADLINE microprocessor controller.
◆ Conveyors: Joint-body PU (polyurethane) Conveyor.
◆ Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
◆ Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
◆ With memory and learning function, can store 100kinds of product testing parameters, detecting a wide range of materials.
◆ Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
◆ The combination of DSP and microcontroller data items on the test sample and treatment to improve detection.
◆ Special transport mechanism designed the maxi-Mize sensitivity of metal detectors.
◆ Flexible modular design can be customized according to different requirements.
◆ Mirror stainless steel with open transport system. Easy to clean .
◆ Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
◆ With superior shock interference.
The considerations on purchasing a metal detector:
|
Determine the types of metal that need to be tested. There are two main types of metals: ferrous and non-ferrous. The ferrous metal comes from iron. Non-ferrous metals are all others. Carefully inventory the types of metals that may eventually appear in your product. |
|
What size of metal contaminants do you need to filter? For this problem, you need to be pragmatic and realistic, because if you specify too much sensitivity, you will get too many false alarms and vice versa. |
|
Understand the operating environment and product characteristics - The operating environment includes temperature and whether water, dust or chemicals may come into contact with metal detectors and possible electric fields. In addition, is the product fresh or frozen, and the package is still exposed, scanned separately or in a box? All of these factors will be used to design the metal detector that best meets your needs. |
|
Reject System Considerations - The most common way is to use a propeller or blower to transport metal detection products. However, you can save space by stopping the conveyor and starting the warning light. Further more, an optional lockable collection container prevents unauthorized employees from accessing rejected products.
|
FAQ:
3. Do you have customers of our country before? Now our testing machines have been sold to more than 120 countries such as USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran, Brazil and so on.
