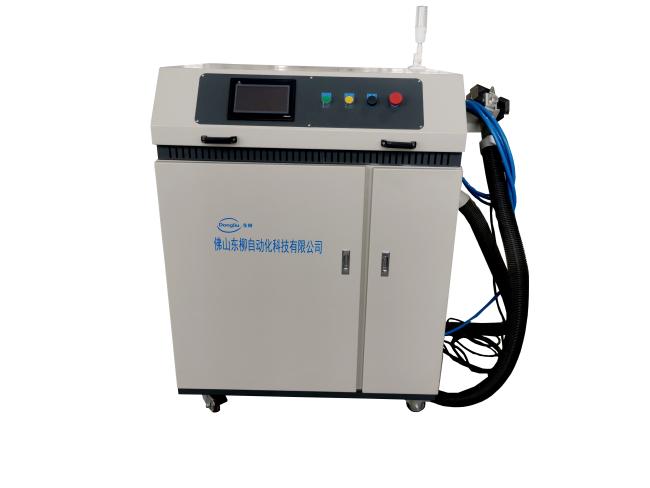

PLC Control Refrigerant Filling Charging Machine with High-efficiency Booster Pump for Air Conditioner Assembly Line
Price:
$32,000
MOQ:
1
Delivery Time:
Negotiable
Brand:
Dongliu
Product Description
Products Description
This product is suitable for filling refrigerants in various air conditioners,refrigerators, freezers,display cabinets,automobile
air conditioners,etc. The refrigerants are R22, R134a, R410a, R32, R290 ,R600，etc,.
air conditioners,etc. The refrigerants are R22, R134a, R410a, R32, R290 ,R600，etc,.
① More in line with the design scheme of mass production.The use of efficient pneumatic drive booster pump, more stable and reliable.
② Carefully designed powerful filling gun head, precision flow meter, to achieve accurate filling of refrigerant.
③ Equipped with industrial vacuum pump, the workpiece can be vacuumed and vacuum detection, and the charging process is more intelligent.
④ Complete process parameter setting control, can store up to 100 process parameters.
⑤High-quality original vacuum gauge test and control, higher stability. ⑥ Good touch screen display interface, real-time display of the parameters of the device
③ Equipped with industrial vacuum pump, the workpiece can be vacuumed and vacuum detection, and the charging process is more intelligent.
④ Complete process parameter setting control, can store up to 100 process parameters.
⑤High-quality original vacuum gauge test and control, higher stability. ⑥ Good touch screen display interface, real-time display of the parameters of the device
⑦ Dual display control of high-pressure and low-pressure pressure gauges
⑧ Can record the production process data, can store up to 10,000 quantities (optional)
⑨ Turbine flowmeter and mass flowmeter can be configured(optional)
⑩ Bar code identification filling function (optional)

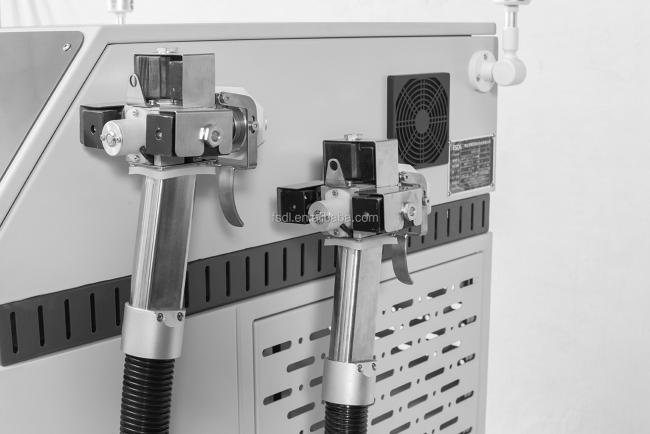

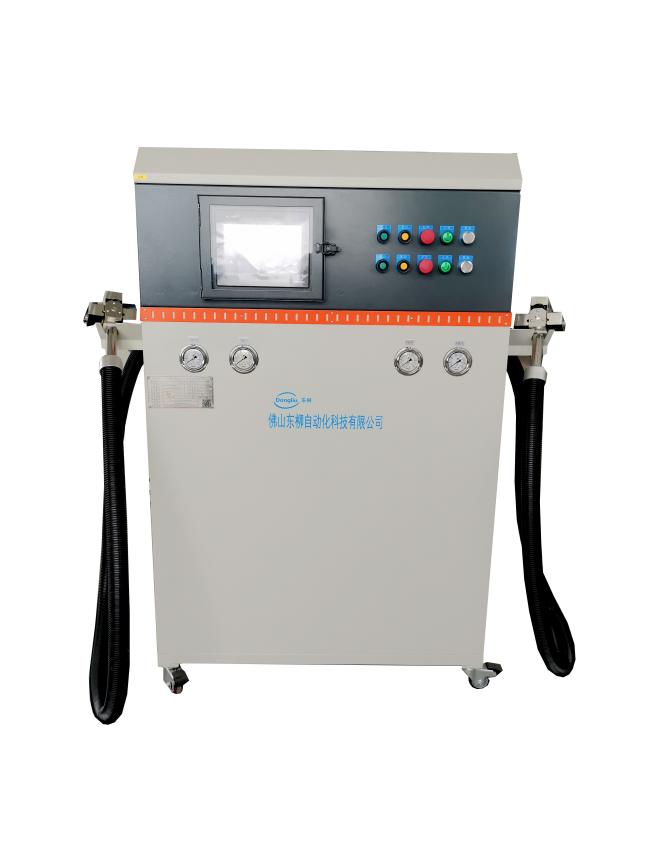

Double Gun Single Double Charging
Single Gun Single System Charging

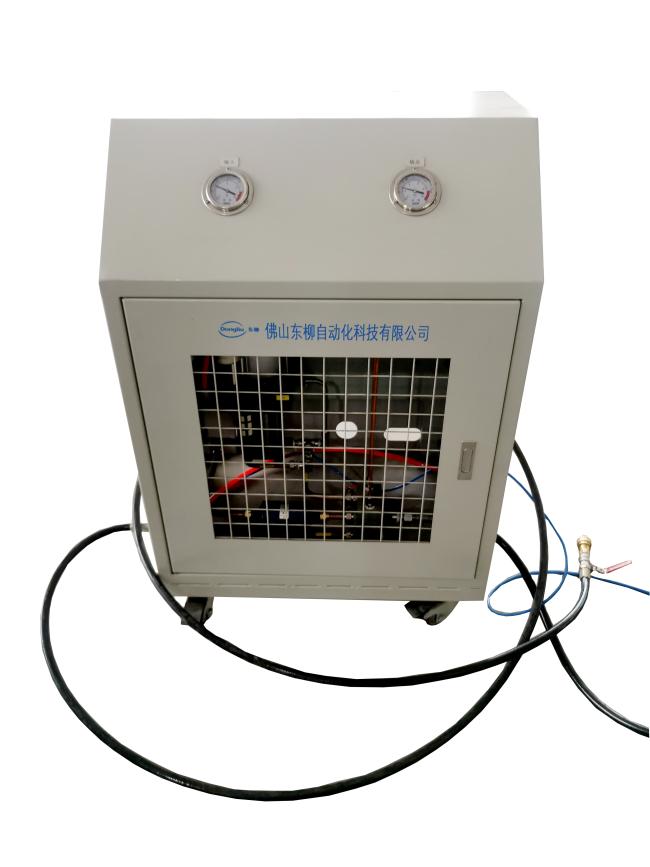

Booster Pump System
Product Paramenters
After-sales Service Provided | Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training |
Type | Filling Machine |
Applicable refrigerants | R134A,R22,R407C,R410A |
Charging range | 120-99,999g |
Charging speed（g/s） | 80-180 |
Pumping speed | 8L/S |
Refrigerant pressure supply | 1.8-3.5MPa |
Compressed air supply | 0.5-0.7MPa |
Power supply and rated | AC380V 50Hz/1.6KW |
Product volume/weight | L800*W850*H1500/320KG |
Warranty | 1 Year |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and Repair service |

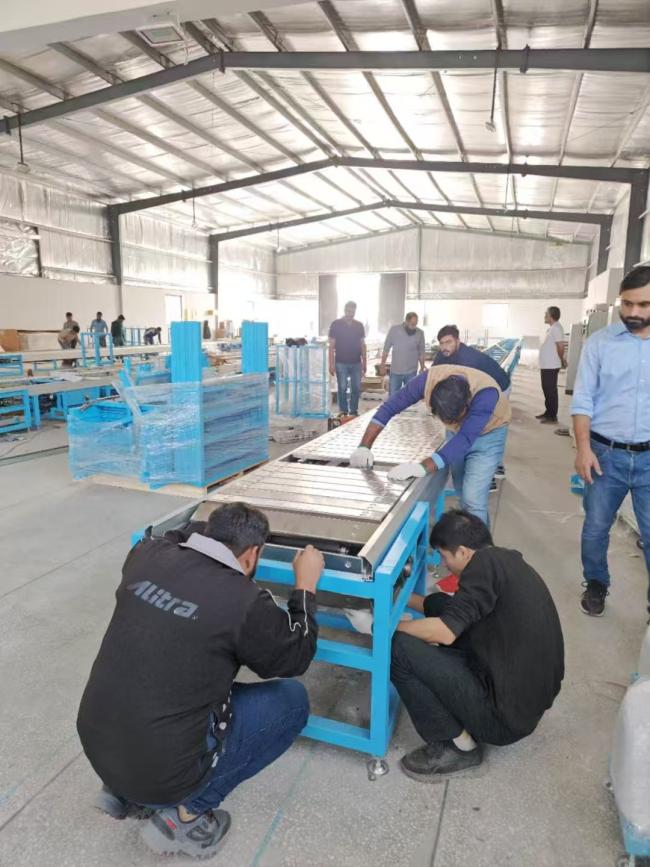

Overseas Project
Why Choose Us
Business Partner
Certifications
FAQ
Q1:Are you manufacturer or trading company?
A1:We are professional manufacturer of air conditioner & heating assembly line and auxiliary equipment.
Q2:How about installation overseas service?
A2:We will arrange 3-5 engineers oversea field installation ,commissioning and training is available .And customers will bear our engineers round-trip ticket, daily local transport cost,food and living charge.
Q3:What is the information will I offer to you before quotation?
A3:a. What is the size of your factory?
b.What is your production capacity per 8 hours?
C. What kind of refrigerant will you use?
d. What is the cooling capacity range BTU?
e. Do you prefer manual line or automatic line?
Other information as more as possible.
b.What is your production capacity per 8 hours?
C. What kind of refrigerant will you use?
d. What is the cooling capacity range BTU?
e. Do you prefer manual line or automatic line?
Other information as more as possible.
