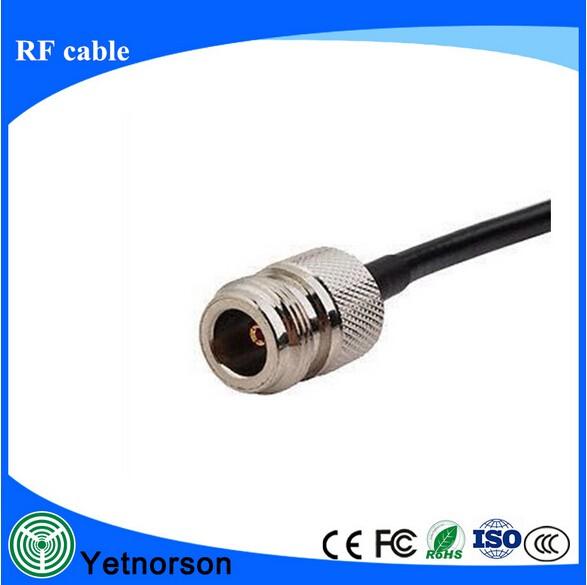

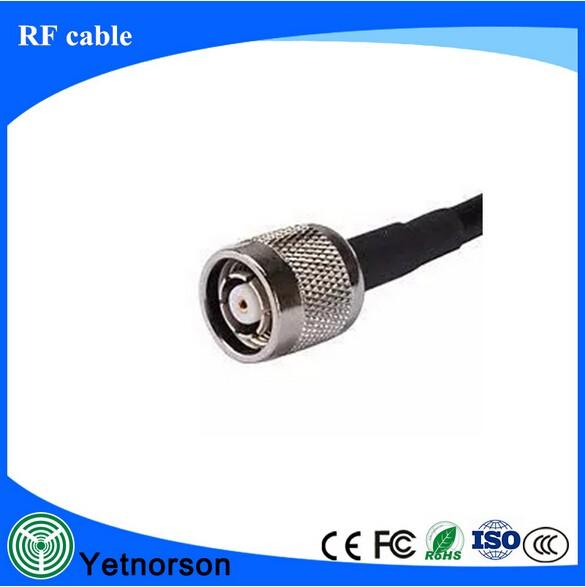

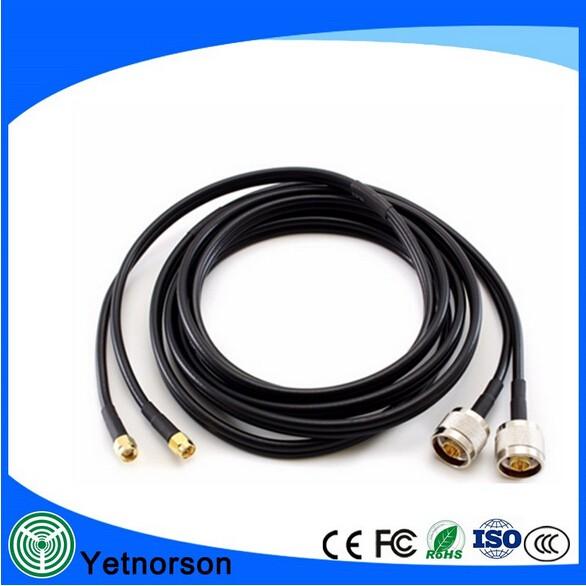

50 Ohm Impedance RF Coaxial Cable RG 58 LMR 200 LMR 400 for Frequency Range 0-6Ghz
RF coaxial cable RG 58 LMR 200 LMR 400 Impedance coaxial cable rg 50 ohm
Application :
Coaxial cables are used in high frequency transmission,especially for signal transmiters and receivers.
| SPEC\ | Structure of product | |||||
| Connector Technical Characteristics | Frequency Range(MHZ) | 174~862 | ||||
| Impedance (Ω) | 50Ω | |||||
| Insertion Loss | 0.6DB | |||||
| Plating | gold plated | |||||
| KV | 50±2 | |||||
| Insulator | PTFE | |||||
| RG Flexible Cables Technical Characteristics | Cable Type RG58 | |||||
| Center Conductor | 0.2 /Sliver Plated) | |||||
| Insulation Dimensions | Ø 0.5±0.1mm PTFE | |||||
| Screen Dimensions | Ø5 Sliver Plated | |||||
| Jacket Dimensions | Ø5 | |||||
| Nominal Impedance | 75Ω | |||||
| Environment Specifications | Operation temperature | -55~+150°C | ||||
| Operation Relative humidity | 55%~75% | |||||
| Testing voltage of spark | 2000V | |||||
| Testing voltage | 2000V | |||||
| Attenuation(Typical)(dB/m) | 470MHz | 0.31dB | ||||
| 665 MHz | 0.52dB | |||||
| 712MHz | 059dB | |||||
| 800 MHz | 0.61dB | |||||
| 862 MHz | 0.65dB | |||||

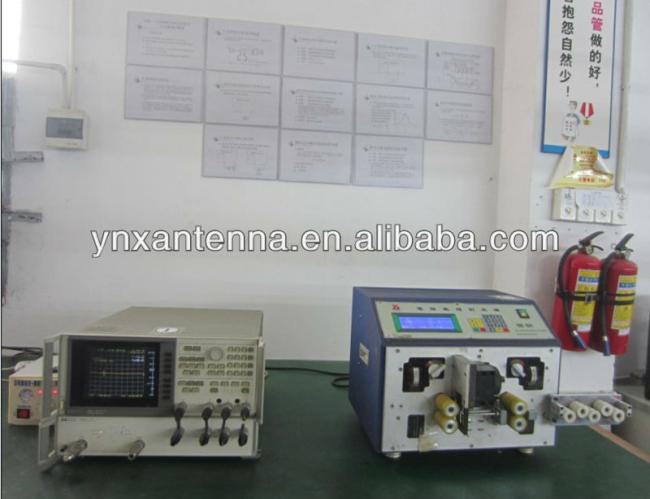

Return loss test chart
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation
