Professional Cold Glue Application System for Corrugated Board Manufacturing

Price Negotiable
Price: $3,900.00/sets >=1 sets
MOQ: 1 set
Delivery Time: Negotiable
Brand: 3A
Product Description
Product Description

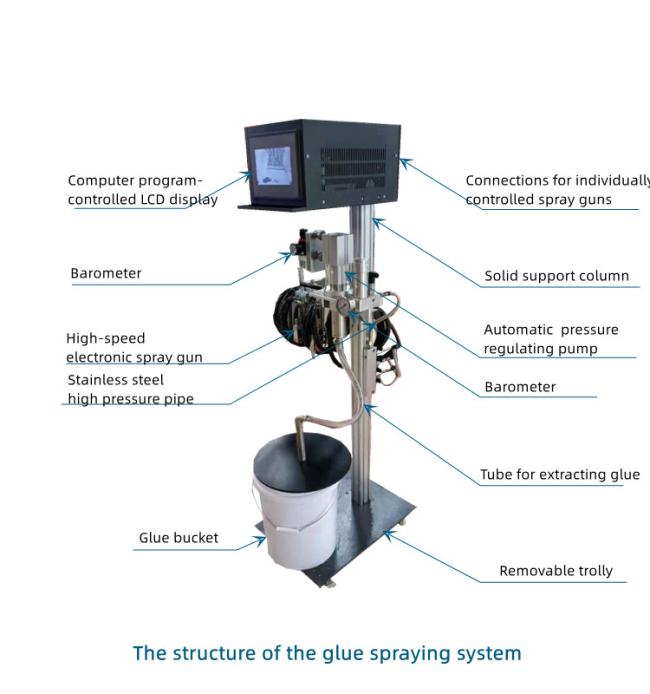

                3A brand---Folding Carton Spray Gluing System



It is a glue spray program control system equipped with a folder gluer. It can be flexibly installed on the folder gluer according to the individual requirements of the product, breaking through the structure and function of the original folder gluer, realizing precise dispensing and producing more types of boxes. The machine uses cold glue glue. The machine runs at high speed, sprays accurately, can be independently adjusted, operates cleanly, and saves glue. Simple and Convenient to Operate.



Detail features



        Performance Characte

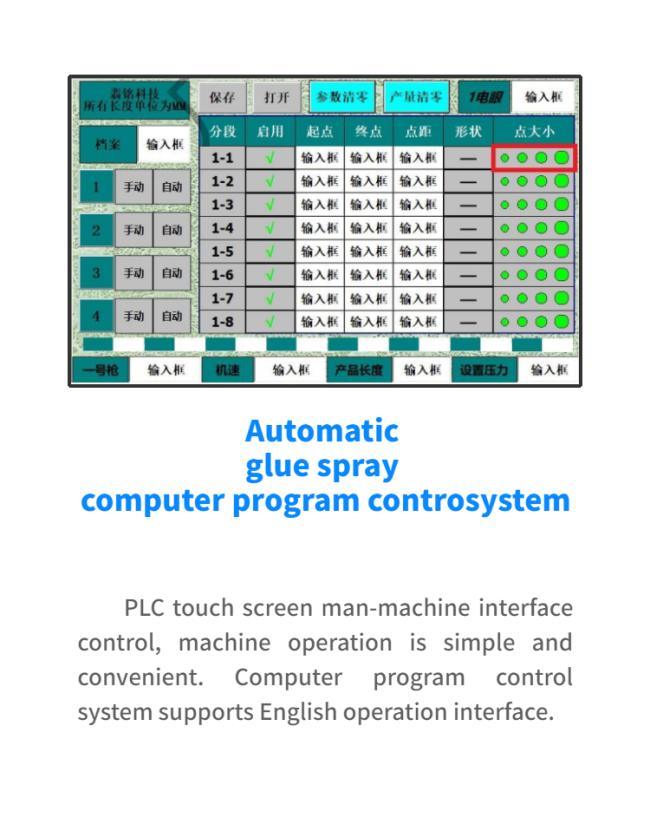

The glue position, length, distance can be precisely set by the controller to ensure the quality.

Each spray gun can be individually adjust .

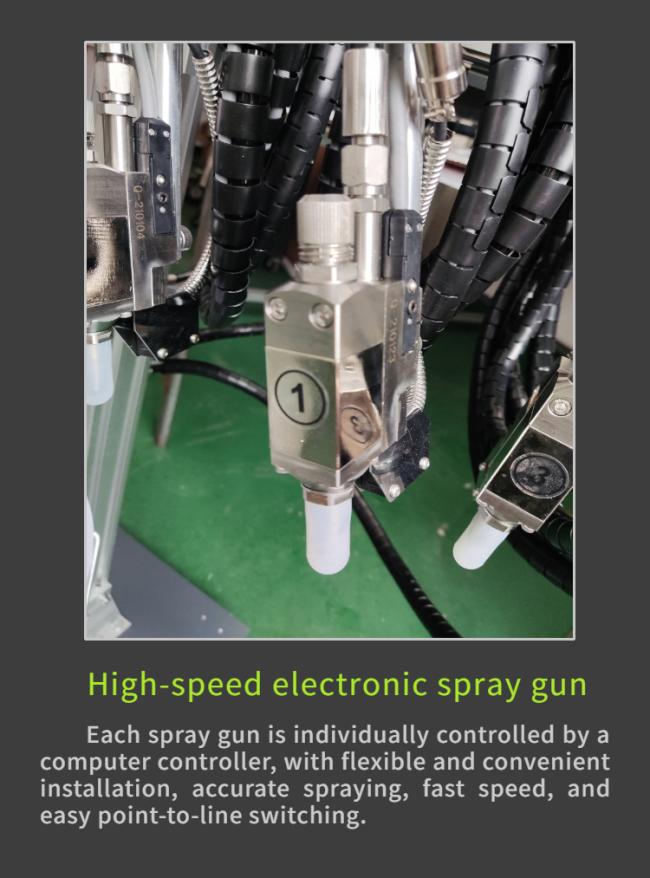

Super fast and no abrasion non-contact cold glue spray gun, completes precise cold glue dot and line spray gluing.


Reduce the consumption of glue, reduce the cost.

















                             glue pipe joints

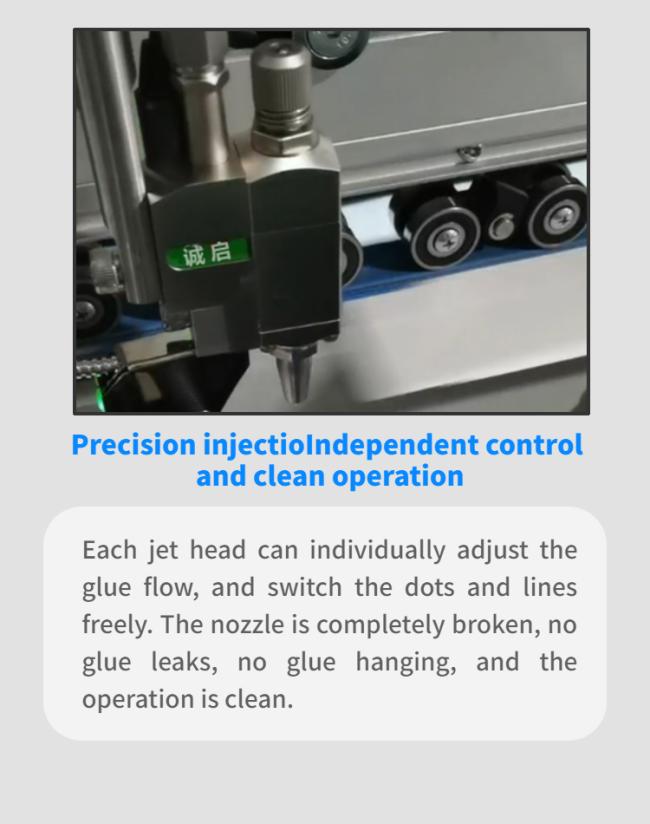

                              Independent control of each gun











                           PRODUCT SPECIFICATIONS











Maximum working frequency

500 points/sec

Maximum speed

300m/min

Spray precision

±1mm

speed within 100m/min

Pressure input

2-8Bar

Number of gun

2 (optional 4)

The electric quantity

2 (optional 4)

Glue

Cold glue

 Voltage

AC220V  50-60HZ













































                     Successful Project





    Easy to switch between dots and lines                          spray glue clean







Related Products

     More product information Production look factory information Please click on the link









                                             COLD GLUE  The maximum viscosity of glue is 3000mPas

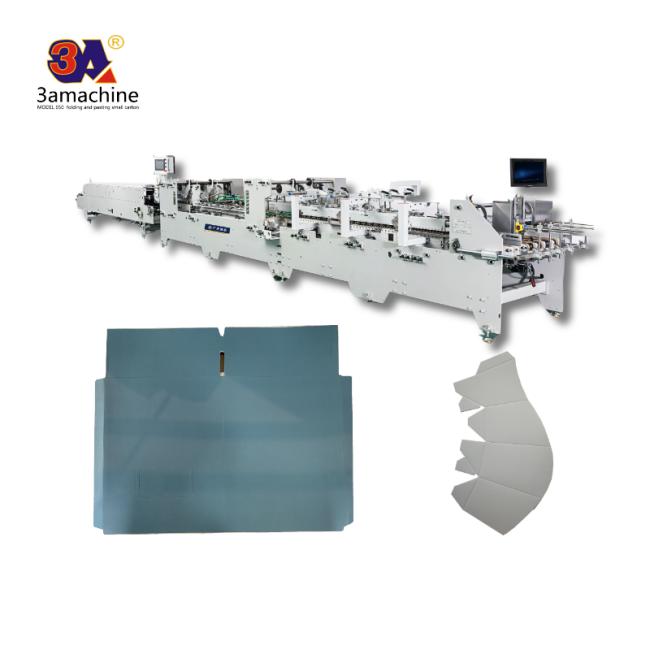

                                                      650 / 800  Straight –line box   FOLDER GLUER







                                                              530  MINI  FOLDER GLUER



                                                                    LOCK  BOTTOM FOLDER GLUER





                                                                         Used Refurbished Folder Gluer

Related Products













                   Related Products











Company Information



           We have been engaged in printing and packaging machinery for 32 years.We are a professional manufacturer of Folding Gluing Machine,Gluedispenser ,   Paper cutter computer programming system..   We also jointly sell All kinds of post-press packaging machinery.













Our Services



FAQ

 1. Who are we?
We are based in Guangdong, China, start from 2020,sell to Southeast Asia(56.00%),South America(10.00%),Africa(10.00%),South
Asia(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Central America(3.00%),Western Europe(1.00%). There are total about 51-100 people
in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Folder gluer,Gluer dispensing system,folding and pasting machine,Glue dispenser,glue machine

4. Why should you buy from us not from other suppliers?
We have been engaged in printing and packaging machinery for 32 years.We are a professional manufacturer of Folding Gluing
Machine,Gluedispenser , Paper cutter computer programming system.. We also jointly sell All kinds of post-press packaging
machinery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese
