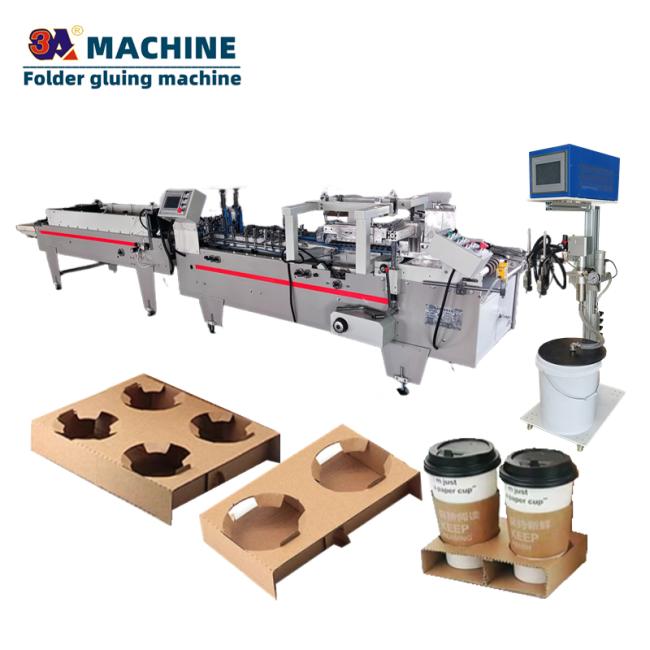

Coffee Cup Sleeve Folder Gluer Machine Suitable for Small Carton or Corrugated Paper 1.5
We specialize in the production of folder gluers and glue sprayers with good machine quality, punctual delivery and good after-sales service.
1.5 years warranty for main engine parts,
Free spare parts with purchase,
The machine is sturdy and durable, easy to install, simple to operate, and the effect of folding boxes and sticking boxes is perfect. The paper output part is independently controlled by the servo motor, which is more stable and the paper feeds more smoothly. Small size, small footprint, easy to transport.
Performance characteristics
1. This folder gluer is a special production equipment for cardboard cup holders, which is widely used in takeaway packaged coffee, milk tea, beverages, etc.
2. The machine is equipped with automatic glue spraying system as standard, with four controls and two guns. Meet the production process requirements of paper cup holders.
3. The machine is fully automatic, high speed, high output, stable, versatile and flexible. It is an ideal paper product processing equipment.
4. The machine is fully automatic, high speed, high output, stable, versatile and flexible. It is an ideal paper product processing equipment.
5. The paper discharge part of the machine adopts advanced servo motor to ensure high stability during high-speed operation.
6. The machine is controlled by computer program, with a high degree of automation, the main machine and the auxiliary machine can adjust the speed synchronously, and the operation is very easy convenient.
7. The machine is controlled by computer program, with a high degree of automation, the main machine and the auxiliary machine can adjust the speed synchronously, and the operation is very easy convenient.
8. With photoelectric automatic detection, automatic counting function.
9. The machine occupies a small area, light and convenient.

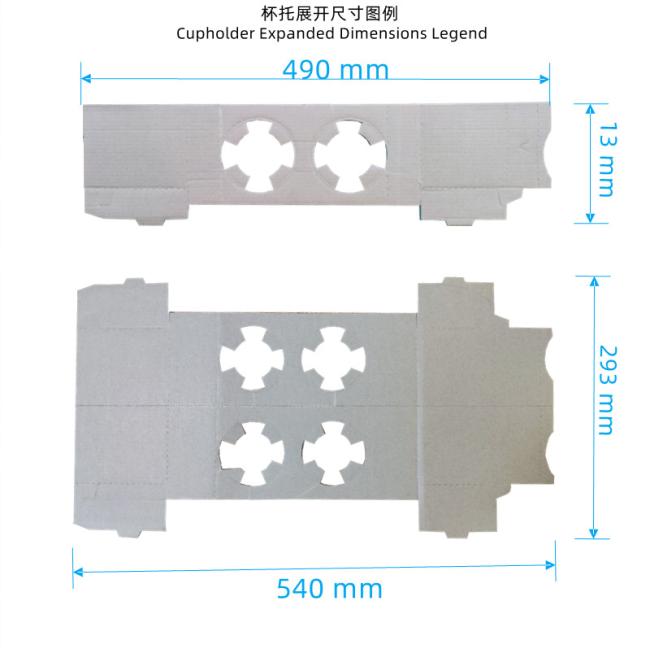

| Model | Box type | Box unfolded size |
| CQT-580C | Straight –line box | A:130mm—540mm B: 60—500mm |
CQT580

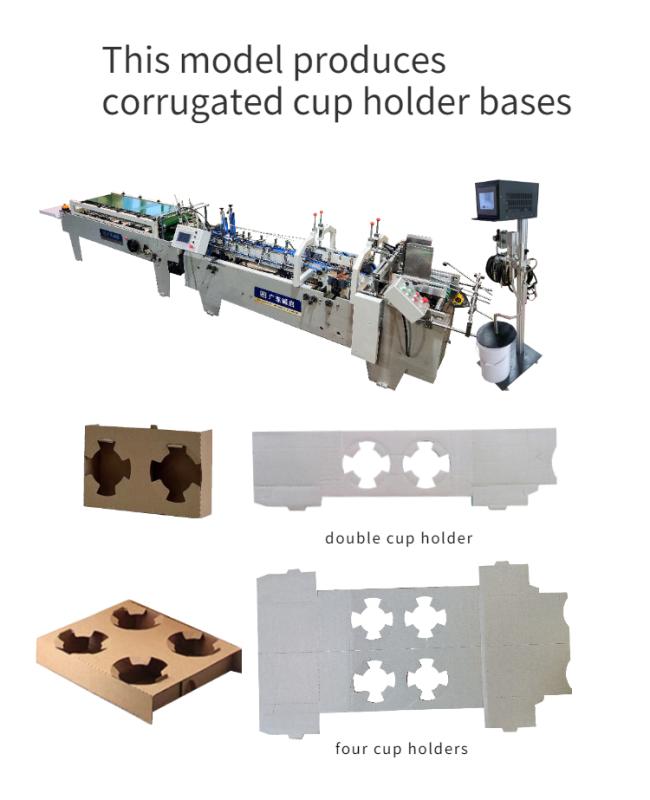

Packing Coffee Cup Holder Folder Gluer
The device is equipped with an automatic spray gun
Product parameters
| MODEL | CQT-580 Cup tray gluer structure diagram |
| Paper | Cardboard 250g-650g Corrugated paper E |
| Max liner speed | 220 Meter / Minute |
| Feeding paper | Automatic continuous paper feeding |
| Glue | Water soluble cold glue |
| Voltage | 380V3P |
| Power | 4.5 kw |
| Net weight | About 1100kg |
| Including packaging weight | About 1300kg |
|
Overall dimension | Host volume : 2.8m *0.85 m* 1.3m |
| Auxiliary volume : 3.0m * 0.8m * 1.3m | |
|
Package dimensions | Host volume: 3.1m * 1.15m *1.6m |
| Auxiliary volume: 3.3m * 1.1m * 1.6m |
Show details
Introduction of other equipment
650 / 800 Straight –line box FOLDER GLUER
530 MINI FOLDER GLUER
LOCK BOTTOM FOLDER GLUER
