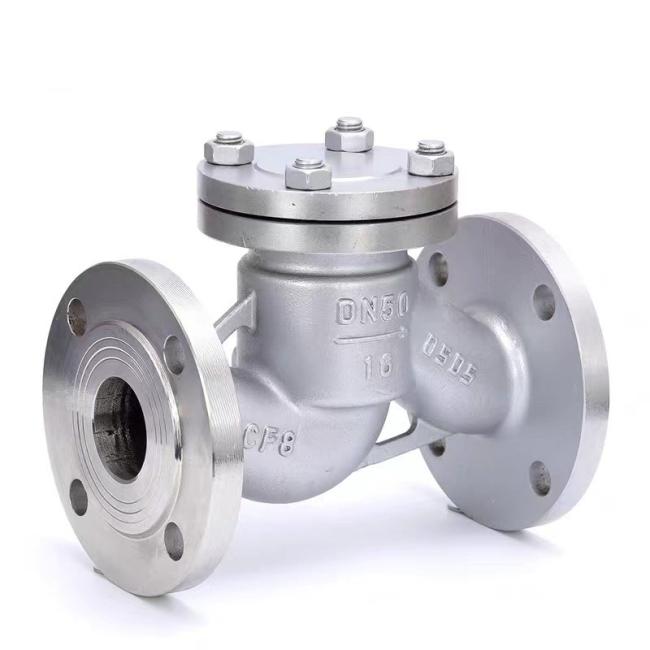

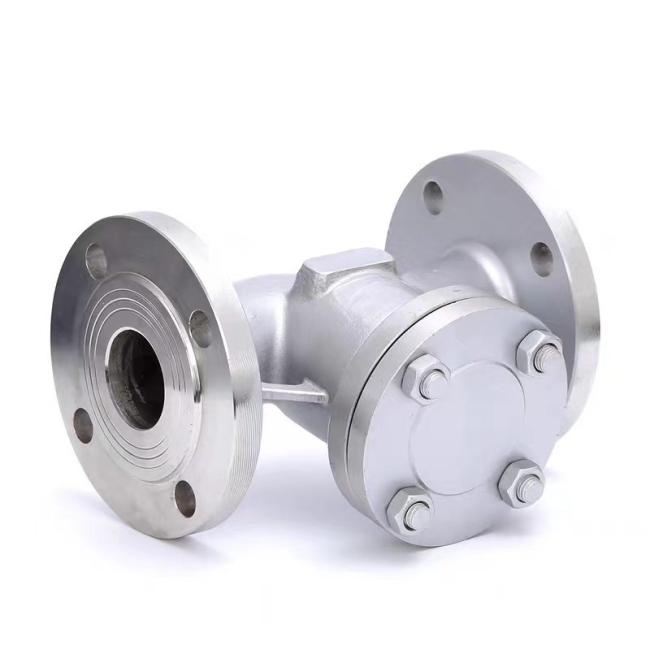

Full Bore Stainless Steel Hard Seal Flanged Lift Check Valve for Normal Temperature
Price:
0.7-2000 usd
MOQ:
1 piece
Delivery Time:
5-8 days
Product Description
Unit:MM
| PN(MPA) | DN | Dimensions(mm) | Peference value | |||||
| L | D | D1 | D2 | b | z-φ | H | ||
| 1.6 | 50 | 230 | 160 | 125 | 100 | 16 | 4-φ18 | 105 |
| 65 | 290 | 180 | 145 | 120 | 18 | 4-φ18 | 120 | |
| 80 | 310 | 195 | 160 | 135 | 20 | 8-φ18 | 130 | |
| 100 | 350 | 215 | 180 | 155 | 20 | 8-φ18 | 140 | |
| 125 | 400 | 245 | 210 | 185 | 22 | 8-φ18 | 165 | |
| 150 | 480 | 280 | 240 | 210 | 24 | 8-φ18 | 180 | |
| 200 | 600 | 335 | 295 | 265 | 26 | 8-φ23 | 215 | |
| 250 | 730 | 405 | 355 | 320 | 30 | 12-φ23 | 260 | |
| 300 | 850 | 460 | 410 | 375 | 30 | 12-φ25 | 315 | |
Main part material
| Part name | Main part material |
| Body | WCB,CF8,CF8M,CF3,CF3M |
| Disc | WCB,CF8,CF8M,CF3,CF3M |
| Double stud | 35CrMoA,25CrMoV,0Cr18Ni9,0Cr17Ni12Mo2 |
| Hexagon nut | 45,35CrMoA,25CrMoV,0Cr18Ni9,0Cr17Ni12Mo2 |
| Gasket | Flexible graphite + stainless steel |
| Bonnet | 25,1Cr18Ni9Ti,0Cr18Ni12mO2Ti,20Cr1Mo1V,25Cr2MoV |

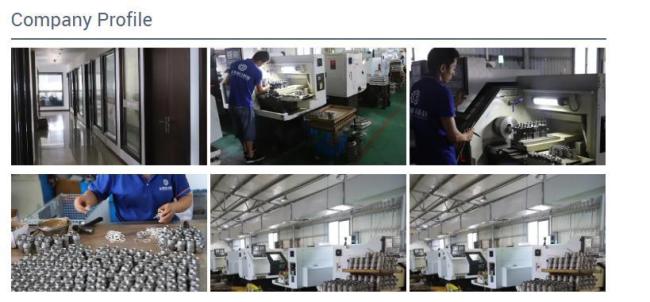

Wenzhou Fuchuang Valve Co., Ltd. is a design, manufacture, sales of all kinds of pipeline valves and supporting products manufacturing enterprises. The company has been established for many years, with strong technical strength, precision CNC machine tools and testing equipment, for a product quality laid a solid foundation. Over the years, the products for the whole country and exported to Europe, the Middle East, Africa, Southeast Asia and other countries.
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Southeast Asia(50.00%),South America(20.00%),North America(12.50%),SouthAsia(10.00%),Eastern Asia(2.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
mini ball valve,float valve,check valve,angle valve,stainless steel ball valve
4. why should you buy from us not from other suppliers?
We are a professional stainless steel ball valve manufacturer , we have 7 years of production experience ,with strong technical
strength ,sophisticated CNC machine tools and testing equipment, to lay a solid foundation for a quality .
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
