Hydraulic System Transport Trolley 350Kg Load Capacity CE Certified Overload Protection 1300mm Max Height

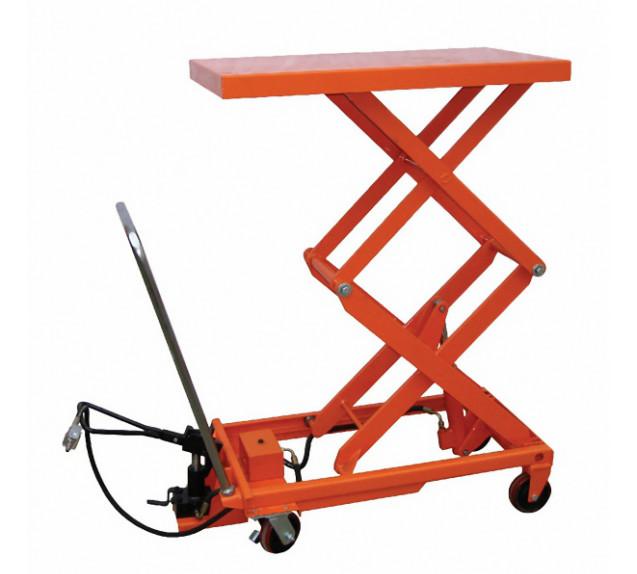

JTPL-350B Hydraulic Pneumatic Scissor Lift Table – CE-Certified Lifting Solution for Industrial and Workshop Use
The JTPL-350B Hydraulic Pneumatic Scissor Lift Table is a robust and reliable lifting platform designed to optimize workflow efficiency and enhance workplace safety in industrial, warehouse, and workshop environments. Combining hydraulic-powered stability with pneumatic control, this scissor lift table delivers smooth vertical lifting up to a maximum height of 1300 mm with a substantial load capacity of 350 kg (770 lb). Engineered in accordance with CE safety standards and equipped with integrated overload protection, rear wheel brakes, and a sturdy protection bracket, the JTPL-350B is built to perform consistently under demanding daily use.
Product Overview
Ideal for assembly lines, material handling, packaging stations, and equipment maintenance, the JTPL-350B offers a low starting height of just 345 mm, enabling easy loading and ergonomic operation. Its durable hydraulic system ensures long-lasting performance, while the pneumatic control interface provides intuitive and responsive lifting and lowering. The spacious work surface (905 × 512 mm) accommodates a wide variety of tools, parts, and materials, making it a versatile addition to any operational setting.
Key Features & Benefits
-
Hydraulic-Pneumatic Operation: Ensures smooth, stable, and precise lifting with minimal operator effort.
-
CE-Certified Design: Manufactured in compliance with European health, safety, and environmental standards.
-
Integrated Safety Systems: Features overload protection to prevent damage and rear wheel brakes to secure the table during operation.
-
Protection Bracket: Reinforced frame design enhances durability and operator safety.
-
Low Entry Height: Starting height of 345 mm allows for easy loading without lifting or straining.
-
High Load Capacity: Supports up to 350 kg (770 lb), suitable for a wide range of industrial applications.
-
Durable Construction: Made from heavy-duty welded steel for long-term reliability in tough working conditions.
| Model | TFY35 |
| Load Capacity | 350Kg,770lb |
| Lowest Height(mm) | 345 |
| Max.Height(mm) | 1300 |
| Table Dimensions(mm) | 905×512×55 |
| Total Length | 1300 |
| Length of Handle | 980 |
| Net Weight(Kg) | 123 |
