Mini Chain Hoist 4 Way Electric Hoist 1000 Kg Made In China Japan Standard 380v 3 Phase Electric Chain Hoist
This electric hoist offers exceptional versatility to meet various industrial needs. It features a trolley for easy movement of heavy loads, enhancing its mobility. Advanced safety features include an electronic limit load device and heat protection, ensuring secure lifting. The durable construction, with high tensile alloy steel hooks and a carbonized load chain, guarantees long-term reliability and performance.
- Large power motor, high speed, Ip54.
- With the modularized electronic control system,the
- hoist has good quality sealing.The material is age
- resisting, improving the safe life.
- Adopt disc electromagnetic brake, braking torque
- is large, fast, reliable and low noise.
- Alloy steel forged hook,with heat treatment.the
- hook won't be fractured even if overload.
- Aluminium alloy gearbox,light weight but tough,
- anti-corrosion.
- Switch control, lP 65,with voltage security.
This 380V three-phase hoist is designed to be compact yet robust, featuring a hook suspension system and a grade 80 zinc-plated chain. It includes integral upper and lower electric limit switches and a motor with IP55 rating, offering protection against dust and water. The control pendant operates with IP65 protection and an emergency stop button. The gearbox is lifetime lubricated, and the hoist provides a 3-meter lift height.
Warning: Not suitable for lifting passengers.
Approvals: EN ISO9001:2008
Standards: Complies with EC Machinery Directives 2006/42/EC, 98/37/EC, Low Voltage Directive 2006/95/EC, and EN6024-1:2006 for safety and general requirements of electrical equipment.

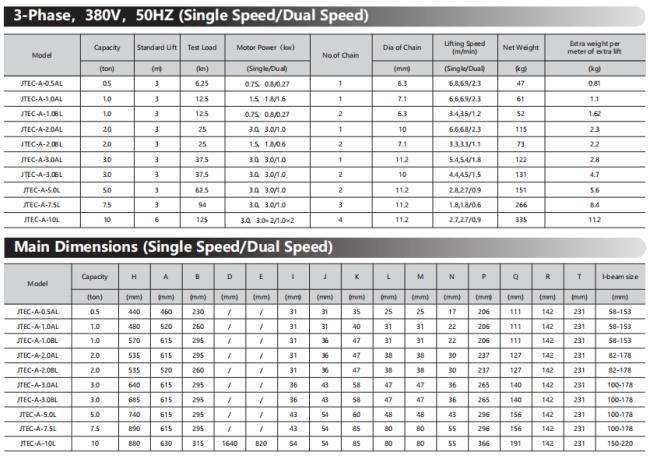

| 3-Phase,380V,50HZ(Single Speed/Dual Speed) | |||||||||
| Model | Capacity | Standard Lift | Test Load | Motor Power(kw) | No.of Chain | Dia of Chain | Lifting Speed (m/min) |
Net Weight | Extra weight per meter of extra lift |
| (ton) | (m) | (kn) | (Single/Dual) | (mm) | (Single/Dual) | (kg) | (kg) | ||
| JTEC-A-0.5AL | 0.5 | 3 | 6.25 | 0.75,0.8/0.27 | 1 | 6.3 | 6.8,6.9/2.3 | 47 | 0.81 |
| JTEC-A-1.0AL | 1.0 | 3 | 12.5 | 1.5,1.8/1.6 | 1 | 7.1 | 6.6,6.9/2.3 | 61 | 1.1 |
| JTEC-A-1.0BL | 1.0 | 3 | 12.5 | 0.75,0.8/0.27 | 2 | 6.3 | 3.4,3.5/1.2 | 52 | 1.62 |
| JTEC-A-2.0AL | 2.0 | 3 | 25 | 3.0,3.0/1.0 | 1 | 10 | 6.6,6.8/2.3 | 115 | 2.3 |
| JTEC-A-2.0BL | 2.0 | 3 | 25 | 1.5,1.8/0.6 | 2 | 7.1 | 3.3,3.3/1.1 | 73 | 2.2 |
| JTEC-A-3.0AL | 3.0 | 3 | 37.5 | 3.0,3.0/1.0 | 1 | 11.2 | 5.4,5.4/1.8 | 122 | 2.8 |
| JTEC-A-3.0BL | 3.0 | 3 | 37.5 | 3.0,3.0/1.0 | 2 | 10 | 4.4,4.5/1.5 | 131 | 4.7 |
| JTEC-A-5.0L | 50 | 3 | 62.5 | 3.0,3.0/1.0 | 2 | 11.2 | 2.8,2.7/0.9 | 151 | 5.6 |
| JTEC-A-7.5L | 7.5 | 3 | 94 | 3.0,3.0/1.0 | 3 | 11.2 | 1.8,1.8/0.6 | 266 | 8.4 |
| JTEC-A-10L | 10 | 6 | 125 | 3.0,3.0×2/1.0×2 | 4 | 11.2 | 2.7,2.7/0.9 | 335 | 11.2 |
