We provide professional Straight Running Double Hinge Stainless Steel Chain, support the conveying of various types , and provide a variety of conveying types.
The Straight Running Double Hinge Stainless Steel Chain is an advanced conveyor chain designed for heavy-duty material handling. Specifically engineered for long-distance conveying of items such as glass bottles, it offers exceptional performance in industries where cleanliness and durability are paramount, such as wine production.

  *Corrosion Resistance: Constructed from cold-rolled austenitic stainless steel, such as grades 304 or 316, the chain provides superior resistance to corrosion, making it suitable for use in moist or chemical environments.
  *High Load Capacity: The double hinge design allows for the conveyance of heavy loads, meeting the demands of robust applications.
  *Flexibility: Offers greater adaptability with the ability to navigate tight bends while maintaining structural stability and load-bearing capacity.
  *Low Maintenance: The simple structure of the chain facilitates easy cleaning and maintenance, contributing to a low total cost of ownership.
  *Durability: The stainless steel material ensures the chain's wear resistance and extended service life.
  *Food Safety: Compliant with food-grade standards, it is ideal for use in food processing and packaging applications.

PRODUCT SPECIFICATIONS

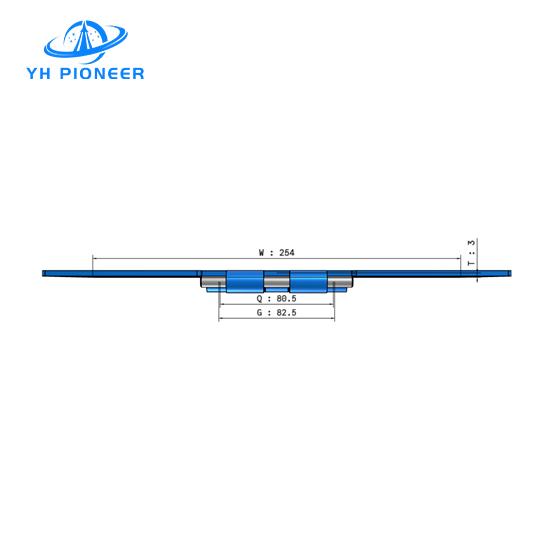

  *Width: 254.0 mm
  *Weight per Meter: 7.73 kg
  *Working Load: 3500N, with a maximum recommended length of 15 meters for optimal performance.
  *Maximum Speed: 50 meters per minute with lubrication, and 30 meters per minute dry.
  *Opposite Bending Radius: 150 mm.
PRODUCT MATERIALS
