Straight Running Stainless Steel Table Top Chain
We provide professional Straight Running Stainless Steel Table Top Chain, support the conveying of various types , and provide a variety of conveying types.
The Straight Running Stainless Steel Table Top Chain is a robust conveyor chain designed for high-load material handling. It is particularly well-suited for the transportation of glass bottles and other heavy-duty metal items, making it an ideal solution for the beverage industry, especially wine conveyance.
PRODUCT ADVANTAGE
*Corrosion Resistance: Made from cold-rolled austenitic stainless steel, the chain offers excellent resistance to corrosion, making it suitable for environments with high cleanliness standards such as food, beverage, and pharmaceutical industries.
*High Load Capacity: The single hinge design allows the chain to handle substantial loads, accommodating the demands of heavy-duty conveying applications.
*Ease of Maintenance: The stainless steel construction facilitates easy cleaning and maintenance, reducing the overall cost of upkeep.
*Durability: The wear-resistant and impact-resistant properties of stainless steel ensure a long service life for the chain.
*Hygiene and Safety: Compliant with food-grade standards, it is suitable for use in food processing and packaging where hygiene is critical.
*Stability: The single hinge design ensures stable and precise conveyance, reducing the risk of product damage.
PRODUCT SPECIFICATIONS

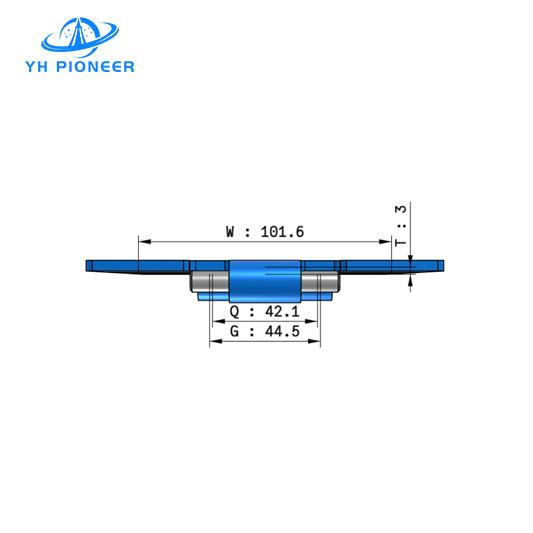

*Width: 101.6 mm
*Weight per Meter: 2.97 kg
*Working Load: 2250 N, with a maximum recommended length of 15 meters for optimal performance.
*Maximum Speed: 50 meters per minute with lubrication, and 30 meters per minute without.
*Reverse Bending Radius: 150 mm.
PRODUCT MATERIALS
Chain Material: Constructed from stainless steel, commonly types 304 and 316, known for their corrosion resistance and cleanliness, making them ideal for use in sensitive industries.
PRODUCT APPLICATIONS
*Glass Bottle Conveying: Effective for handling the weight and fragility of glass bottles with care.
*Heavy-Duty Material Handling: Capable of managing the demands of transporting heavy loads in various industrial settings.
*Beverage Industry: Particularly recommended for wine conveyance, where the use of lubricants is suggested to enhance efficiency and reduce wear.
*Automated Production Lines: Enhances the efficiency and reliability of automated processes in manufacturing and logistics.
PRODUCT PARAMENTERS
|
Product name
|
Straight Running Stainless Steel Table Top Chain |
|
Application
|
Mainly suitable for various kinds of glass bottles, and long distance heavy duty conveying. Especially for wines conveying. |
|
Material
|
Stainless Steel |
|
Working load
|
Working load 2250N,Max.length 15m |
|
Maximum speed
|
50M/min lubrication, 30M/min dry |
|
Width
|
|
|
Weight
|
|
|
Opposite bending raduis
|
150mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
