Stainless Steel Conveyor Chain Plate With Rubber For Enhanced Grip Noise Reduction
Durable Stainless Steel Conveyor Chain Plate with Rubber for Enhanced Grip and Noise Reduction

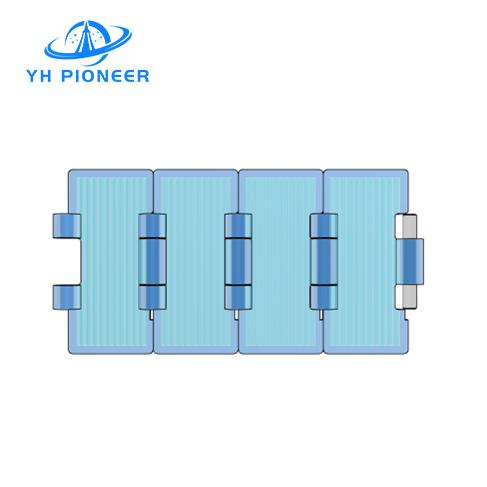

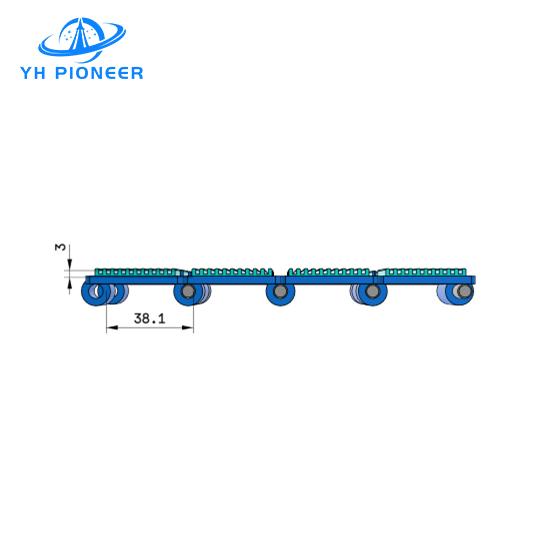

Straight Running Stainless Steel Chain with Rubber Top
We provide professional Straight Running Stainless Steel Table Top Chain, support the conveying of various types , and provide a variety of conveying types.
The Straight Running Stainless Steel Chain with Rubber Top is an engineered conveyor chain designed for elevating conveyor applications. This chain combines the strength and corrosion resistance of stainless steel with the high friction and shock absorption properties of rubber, creating a durable and reliable material handling solution.
PRODUCT ADVANTAGE
* Enhanced Friction: The rubber top increases the chain's coefficient of friction, providing better grip and preventing slippage of materials during elevation.
* Vibration Absorption: The rubber material dampens vibrations, leading to a smoother and quieter conveying process.
* Corrosion Resistance: The stainless steel construction ensures the chain is suitable for environments with high cleanliness and corrosion resistance requirements.
* Wear Resistance: The rubber attachment enhances the chain's durability, extending its service life through increased resistance to wear.
* Easy to Clean: The stainless steel surface allows for easy sanitation, meeting hygiene standards for various industries.
* Load Capacity: The robust stainless steel chain structure is designed to handle heavy loads with ease.
* Versatility: Adaptable to various materials, including those that require gentle handling.
* Low Maintenance: The durable rubber top reduces the frequency of replacements, minimizing long-term operational costs.
PRODUCT SPECIFICATIONS
* Width: 101.6 mm
* Weight per Meter: 2.97 kg
* Working Load: 2250 N, with a maximum recommended length of 15 meters for optimal performance.
* Maximum Speed: 50 meters per minute with lubrication, and 30 meters per minute without.
* Reverse Bending Radius: 150 mm.
PRODUCT MATERIALS
* Chain Base Material: Made from cold-rolled austenitic stainless steel, such as grades 304 or 316, known for their excellent corrosion resistance and strength.
* Rubber Material: The rubber top is made from nitrile rubber, chosen for its wear resistance, elasticity, and impact absorption properties.
PRODUCT APPLICATIONS
* Elevating Conveyors: Especially in applications where materials need to be gently and reliably lifted or lowered.
* Food Processing: For its hygienic and non-corrosive properties, suitable for handling food products.
* Pharmaceutical Industry: Where cleanliness and precision in material handling are crucial.
* Chemical Industry: Capable of withstanding corrosive materials without degrading.
* General Industrial Applications: Applicable to any industry requiring the transportation of materials in a controlled and elevated environment.
PRODUCT PARAMENTERS
|
Product name
|
Straight Running Stainless Steel Chain with Rubber Top |
|
Application
|
Mainly used in elevating conveyor. |
|
Material
|
Cold Rolled Austenitic Stainless Steel |
|
Rubber Material
|
Nitrile rubber |
|
Chain plate width
|
|
|
Rubber width
|
|
|
Rubber Thickness
|
3mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
