Flat Top Modular Belt with rubber
We provide professional Flat Top Modular Belt with rubber , support the conveying of various types , and provide a variety of conveying types.
The Flat Top Modular Belt with rubber top is an innovative conveyor belt designed for applications requiring enhanced friction and gentle handling of items. This belt is particularly effective for the transportation of cartons, plastics, and other items that require a non-slip surface and a quiet operation.
PRODUCT ADVANTAGE
*Rubber Top Design: The belt features rubber sections attached via special processes such as injection molding, ensuring a strong bond between the rubber and the belt.
*Wear Resistance: The rubber surface improves the belt's durability and extends its service life.
*Noise Reduction: The rubber material helps to minimize noise during operation, providing a quieter working environment.
*Shock Absorption: The elasticity of the rubber absorbs vibrations, reducing impact on both the belt and the conveyed items.
*Adaptability: Versatile for use in various working environments, including but not limited to food, beverages, and packaging machinery.

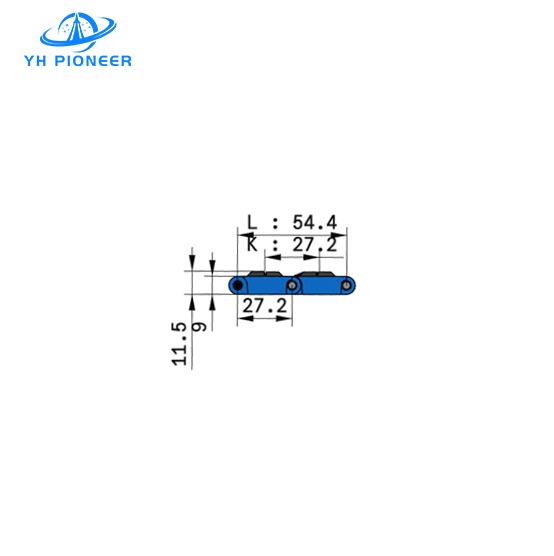

PRODUCT SPECIFICATIONS
*Belt Material: A combination of Polypropylene (PP) and rubber for the belt surface.
*Pin Material: Polypropylene (PP) for the pins, ensuring compatibility and durability.
*Standard Module Width Multiplier: 2, with a standard belt width of 304.8 mm.
*Center Distance Between Rubber Sections: 1 module width.
*Distance from End Face to Flight: 25.2 mm.
*Standard Belt Width: W = 152.4 mm multiplied by the number of standard modules (N).
PRODUCT MATERIALS
The base of the chain plate is typically made from materials such as steel, aluminum, or plastic sheets, with plastic options including engineering plastics like Polyoxymethylene (POM) and Polypropylene (PP).
The rubber attachments are made from materials like Natural Rubber (NR), Silicone Rubber (SI), Nitrile Butadiene Rubber (NBR), and Polyurethane (PUR), which offer wear resistance, oil resistance, and impact absorption.
PRODUCT APPLICATIONS
*Box and Plastic Item Conveying: For the transportation of cartons and plastic items where increased friction is necessary.
*Food and Beverage Industry: Suitable for environments that require cleanliness and hygiene.
*Packaging Machinery: Provides a quiet and reliable transport solution in packaging processes.
PRODUCT PARAMENTERS
|
Apply to
|
It is mainly suitable for the transportation of various cartons, plastics and other items to increase the friction of the conveyor belt |
|
Modular belt material
|
PP+Rubber |
|
Pin material
|
pp |
| The multiply of standard modular belt width | 2-10 |
| Modular belt width | 304.8mm |
| Centrial distance between rubber | 1-5 |
| The distance between belt side and cleat | 25.2-59 |
| Modular belt width | Standard modular belt width: W=152.4*N |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
