We provide professional Seamless Case Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.

The Seamless Case Conveyor Chain is an innovative conveyor chain designed for the safe and smooth transportation of various items. Its zero-gap surface design ensures the secure conveyance of goods, making it ideal for a wide range of applications where reliability and efficiency are paramount.

  * Zero-Gap Surface Design: Provides a safe and smooth conveyance of items, reducing the risk of product damage or spillage.
  * Flexibility in Operation: Capable of flexible movement in both horizontal and vertical directions with a small side bend radius.

  * High-Strength Workload: Special connections and pins ensure the chain can handle high workloads, even in harsh environments.
  * Ease of Cleaning: Suitable for various working environments, offering high work load capacity and long service life.
  * Low Friction Coefficient: Provides smooth, reliable, and low-noise conveyance.

PRODUCT SPECIFICATIONS

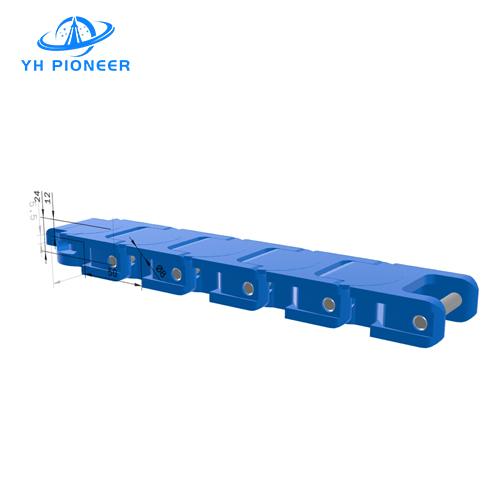

  *Product Name: Seamless Case Conveyor Chain
  *Application: Suitable for smooth and safe conveyance of various items with a zero-gap surface design.
  *Chain Plate Material: Polyoxymethylene (POM) in grey, with a temperature range of -30°C to +90°C.
  *Pin Material: Cold-rolled austenitic stainless steel.
  *Chain Plate Load at 25°C: 2670N/m for POM.

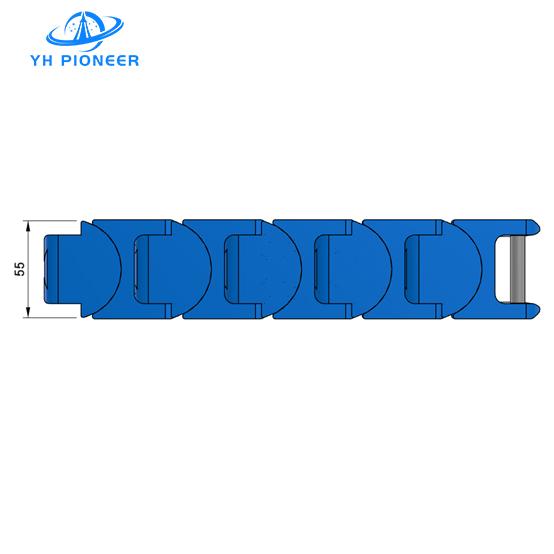

  *Chain Plate Width (CW): 55.0 mm
  *Weight: 1.46 kg/m
  *Minimum Turning Radius (R): 125.0 mm
  *Reverse Bending Radius (RD): 63.5 mm

PRODUCT MATERIALS
