Carbon Steel Conveyor Chain Plate With EPDM Clamps For Bottle Elevation And Turning

We provide professional D-type Snap-on Sideflex Conveyor Chain with Bearings, support the conveying of various types , and provide a variety of conveying types.

The D-type Snap-on Sideflex Conveyor Chain is a specialized conveyor chain designed for the precise handling and transportation of bottles and cans in automated production lines. This chain is engineered to excel in applications requiring turning and climbing conveyance, offering a reliable and efficient solution for the movement of containers through various angles and inclines.

  * High Friction Clamping Blocks: Provide excellent grip and secure holding of bottles during the conveyance process, ensuring they do not slip or fall.
  * Durable Construction: The POM material offers high wear resistance, and the EPDM rubber blocks are designed for durability and a good grip.
  * Temperature Resistance: Capable of stable operation in a wide temperature range from -40°C to +90°C.
  * Customizable Material and Specifications: Available in different materials and specifications to suit various load and conveying length requirements.
  * Easy Maintenance: The modular design allows for simple and quick part replacement.

  * Efficient and Reliable: Offers a high-performance chain drive solution suitable for multiple industrial uses.
  * Versatile: Adaptable to different environments and requirements due to the choice of materials and design flexibility.

PRODUCT SPECIFICATIONS

  * Product Name: D-type Snap-on Sideflex Conveyor Chain
  * Application: Suitable for turning and climbing conveyance of bottles and cans
  * Material: Blue Polyoxymethylene (POM) for the chain plates, with light grey Terpolymer Ethylene Propylene Diene Monomer (EPDM) rubber for the clamping blocks
  * Base Chain: Standard 12A roller chain, available in carbon steel and stainless steel
  * Working Load: 3200N for carbon steel, 1600N for stainless steel
  * Maximum Speed: 50 meters/minute with lubricant; 30 meters/minute with dry conditions
  * Maximum Conveying Length: 30 meters for carbon steel, 24 meters for stainless steel
  * Packaging: Each piece is 1.524 meters long

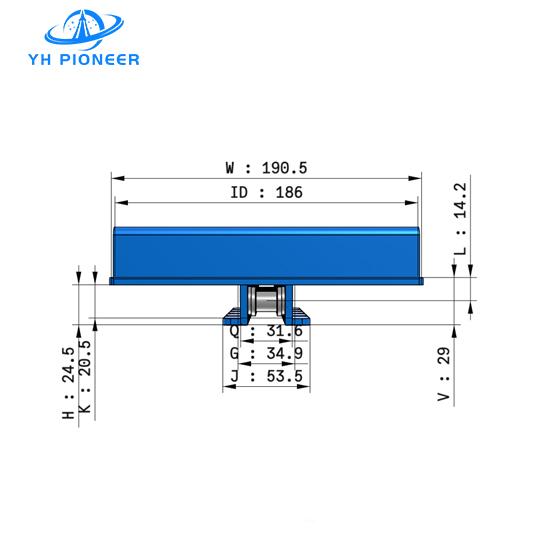

  * Width: 190.5 mm
  * Rubber Width: 186 mm
  * Weight: 4.50 kg/m
  * Reverse Bending Radius: 150 mm
  * Turning Radius: 500 mm

PRODUCT MATERIALS

  * Chain Plates: Made from POM, known for its strength and rigidity.
  * Clamping Blocks: Crafted from EPDM rubber for high friction and durability.
  * Base Chain: Constructed with carbon steel or stainless steel for robust support and resistance to various loads.

PRODUCT  APPLICATIONS

Bottle and Can Conveyance: Ideal for the turning and climbing conveyance of bottles and cans in production lines.
Industrial Automation: Provides a high-efficiency and reliable chain transmission solution for various industrial applications, including food, beverages, pharmaceuticals, and more.
