Robust POM Seamless Snap - on Conveyor Chain with Low-Friction Bearings for Industrial Applications

We provide professional Seamless Snap-on Sideflex Conveyor Chain with Bearings, support the conveying of various types , and provide a variety of conveying types.

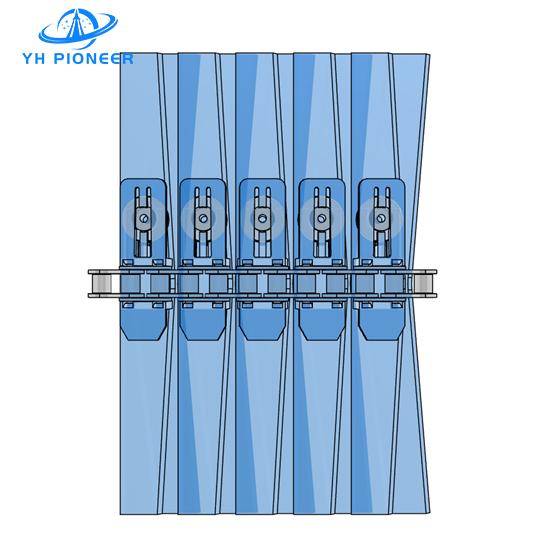

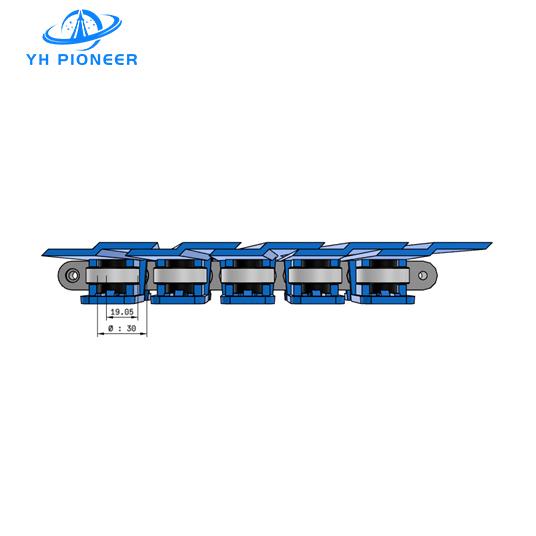

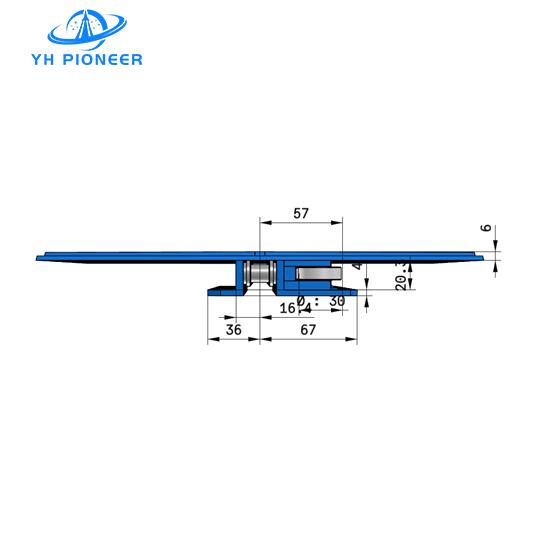

The Seamless Snap-on Sideflex Conveyor Chain with Bearings is a high-performance conveyor chain system specifically designed for spiral turning conveyors. This innovative chain offers a seamless and efficient solution for material handling in industries requiring precise and reliable conveying, particularly in automated production lines.


  *Smooth Material Conveyance: Designed for use on spiral turning conveyors, ensuring stable and smooth material transportation around turns and spirals.
  *Durable Construction: The POM card plates offer a temperature-resistant and wear-resistant surface, suitable for a wide range of environments.
  *Standard Roller Chain Base: The base chain is available in carbon steel and stainless steel to cater to varying load capacities and environmental requirements.
  *Low Friction and High Wear Resistance: Bearings made from POM or 6200Z (bearing steel) reduce friction and increase the durability of the chain.
  *High Precision and Efficiency: Capable of high-speed operation, reaching up to 50 meters/minute with lubrication, and 30 meters/minute with dry conditions.
  *High Load Capacity: With a working load of 3200N for carbon steel and 1600N for stainless steel, the chain is suitable for heavy-duty conveying tasks.
  *Extended Conveying Length: Supports long-distance conveying with a maximum length of 30 meters for carbon steel and 24 meters for stainless steel.
  *Convenient Installation and Maintenance: The modular design and packaging length of 1.524 meters facilitate easy installation and maintenance.
  *Directional Flexibility: The card plates with bearings are available in left and right orientations, adapting to different installation requirements.

PRODUCT SPECIFICATIONS
  *Product Name: Seamless Snap-on Sideflex Conveyor Chain with Bearings
  *Application: Suitable for spiral turning conveyors
  *Material: Polyoxymethylene (POM) in a light blue color, with a temperature range of -30°C to +90°C
  *Base Chain: Standard 12A roller chain, available in carbon steel and stainless steel
  *Maximum Speed: 50 meters/minute with lubricant; 30 meters/minute with dry conditions
  *Working Load: 3200N for carbon steel at 25°C, 1600N for stainless steel at 25°C
  *Maximum Conveying Length: 30 meters for carbon steel, 24 meters for stainless steel
  *Packaging: Each piece is 1.524 meters long
  *Width: 304.8 mm
  *Weight: 5.66 kg/m
  *Reverse Bending Radius: 150 mm
  *Turning Radius: 500 mm

PRODUCT MATERIALS
  *Card Plates: Made from POM, providing a strong and rigid surface that is also temperature resistant.
  *Base Chain: Constructed with carbon steel or stainless steel for robust support and resistance to various loads.
  *Bearings: Made from POM or 6200Z (bearing steel) for smooth operation and reduced wear.

PRODUCT  APPLICATIONS
Spiral Turning Conveyors: Ideal for horizontal turning and spiral conveying applications in industries such as food, beverages, chemicals, and pharmaceuticals.
