We provide professional Conveyor Separate Three-Row Roller Guide Rail, support the conveying of various types , and provide a variety of conveying types.

The Conveyor Separate Three-Row Roller Guide Rail is an advanced conveyor system component, meticulously designed to offer exceptional guidance and protection for materials during transit. Engineered with a triple-row roller structure, this guide rail is tailored for multi-row conveyance applications, ensuring a smooth and efficient transportation process with reduced friction and noise. Its robust construction and strategic material selection make it an optimal choice for industries seeking a high-performance and low-maintenance solution.

  *Crafted from a composite of POM and stainless steel, the guide rail exhibits resistance to acids, alkalis, and static electricity, along with excellent wear and corrosion resistance.
  *The triple-row design is specifically adapted for multi-row conveyance, reducing the friction between the conveyor belt and the guide rail, and allowing for variable heights to facilitate installation.
  *The guide rail is designed to prevent equipment from falling, thereby reducing downtime and the incidence of accidents.
  *It features a compact and rational structure that conserves installation components and space, with a lightweight profile that does not compromise strength and durability.
  *Installation is straightforward, and the low maintenance cost contributes to improved production efficiency and profitability.
  *The guide rail can be flexibly bent to fit various production line spaces, making it suitable for limited spatial applications where it achieves excellent operational results.

PRODUCT SPECIFICATIONS

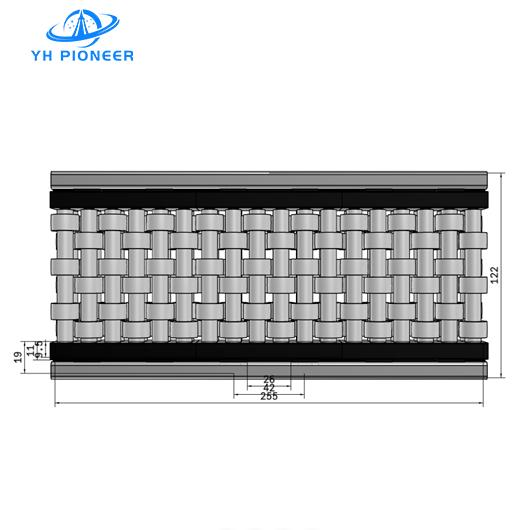

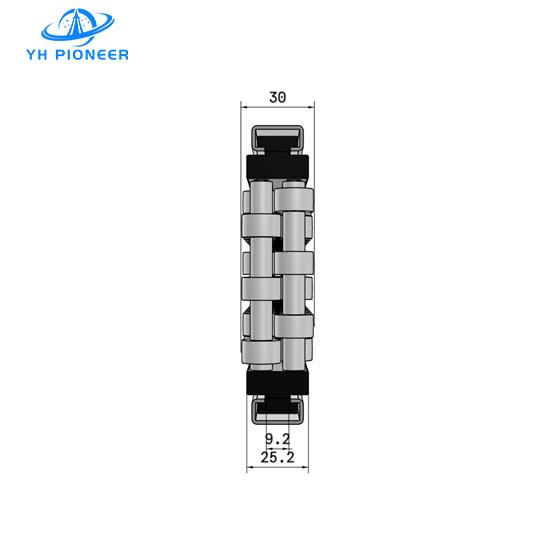

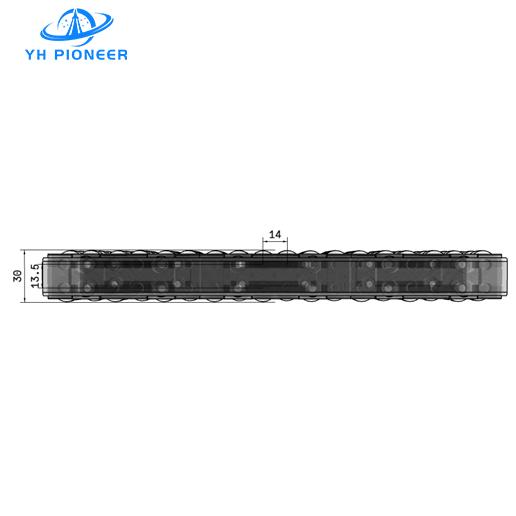

Product Name: Conveyor Separate Three-Row Roller Guide Rail
Material: Polyoxymethylene (POM) plus Stainless Steel for enhanced durability and wear resistance
Length: 1024 mm to suit various conveyor system requirements
Roller Color: Available in White or Green for high visibility during operation
Weight: 5.87 kg/PC for stability and support

PRODUCT MATERIALS

Rollers: Made from Polyoxymethylene (POM) for a low-friction, wear-resistant surface
Support Frame: Constructed with stainless steel for high strength and durability
Sheath: Optional protective sheathing for added durability and visual appeal

PRODUCT  APPLICATIONS

  *The Conveyor Separate Three-Row Roller Guide Rail is widely used in the protection of materials along the sides of conveyors in industries such as packaging, logistics, food processing, and pharmaceuticals.
  *It is particularly effective in applications involving the transportation of heavy or bulky items, offering flexibility for both straight and curved conveyor systems.
  *The guide rail's design significantly reduces friction and noise during operation, enhancing the overall efficiency of the conveyor system.
  *Its adaptability allows it to be easily integrated into existing conveyor systems, even in areas with limited space, ensuring a high return on investment through improved safety and reliability.
