Small Assembly Line
We provide professional Small Assembly Line that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

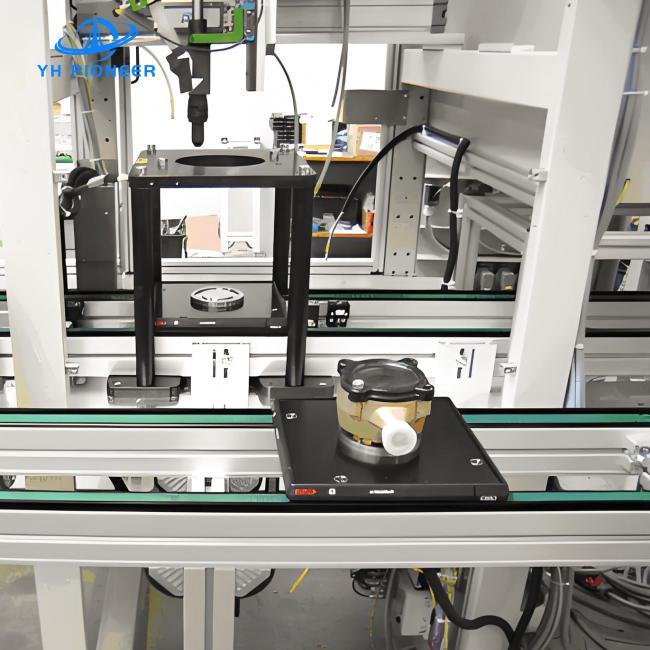

The Small Assembly Line is a specialized production system designed for the efficient assembly of water meters. Engineered to meet the specific needs of water meter manufacturing, this assembly line offers a high degree of automation, ensuring precision and consistency in the assembly process. It is tailored to enhance productivity, reduce labor costs, and maintain high-quality standards in the production of water meters.
PRODUCT PARAMENTERS
|
Driving pressure
|
4.5 ~ 6.5kgf/cm2
|
|
Operating voltage
|
110V ~ 250V
|
|
Feeding
|
XY axis feeding and bowl feeder feeding
|
|
Dimensions
|
5700 (L) X1400 (W) X1600 (H) (mm)
|
|
Weight
|
about 1250kg
|
*It can be modified according to customer requirements.
This is a customizable product, please contact us for detailed parameter information.
TECHNOLOGICAL ADVANTAGE
High Efficiency: Achieves rapid and precise assembly of water meter components, reducing manual labor and production time.
High Quality: Ensures consistent assembly quality and performance through precise process control and inspection systems, minimizing defects and customer complaints.
High Flexibility: Capable of quick changeovers and adjustments to accommodate different models and specifications of water meters, enhancing production versatility.
Low Labor Costs: Reduces the need for manual operations, lowering labor costs and management pressures, while improving work safety by reducing human errors and risks.
Space-Saving Design: The mid-section of the line adopts a "U" shape, saving floor space and facilitating quick material transport and processing efficiency.
Standardized Operations: Standardized automated processes not only improve product quality but also increase assembly efficiency, reduce material waste, and lower production costs.
PRODUCT SPECIFICATIONS
Driving Pressure: Operates within 4.5 to 6.5 kgf/cm², ensuring stable performance.
Operating Voltage: Compatible with 110V to 250V, adaptable to various power supply systems.
Feeding: Features XY axis feeding and bowl feeder feeding for efficient part supply.
Dimensions: 5700 (L) x 1400 (W) x 1600 (H) mm, designed for optimal space utilization.
Weight: Approximately 1250 kg, indicating robust construction.
PRODUCT MATERIALS
Frame: Constructed from aluminum alloy for lightweight and corrosion resistance.
Contact Parts: Made from stainless steel to ensure hygiene and durability.
Mechanical Components: Fabricated from steel for strength and stability.
Power Unit: Includes a motor and reducer for reliable power transmission.
Conveyor System: Utilizes a chain-based system for smooth material transport.

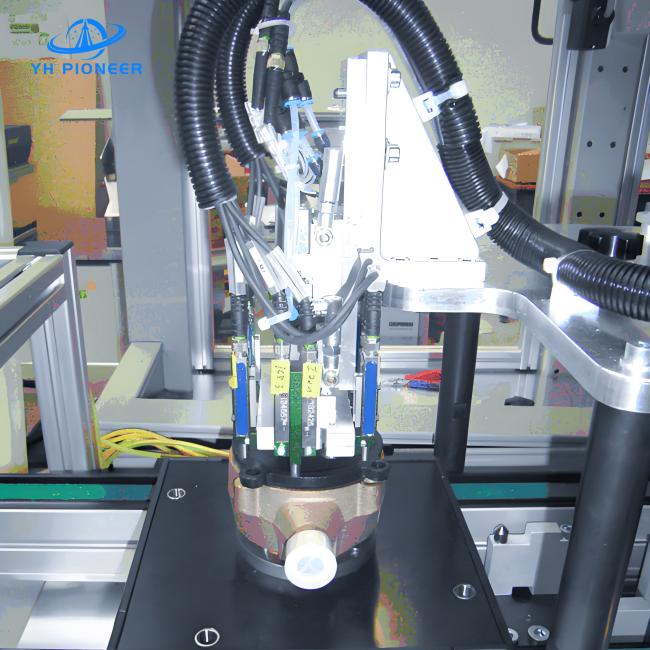

Mechanical Modules: Comprises modules for wheel assembly, housing assembly, and core assembly, facilitating automatic loading, main assembly, and transfer operations.
Control System: Equipped with PLC control and a touchscreen HMI for precise operation and control.
Inspection System: Features aging test equipment, pressure testing stations, and flow testing stations to ensure product quality.
Packaging System: Capable of automatic glue application, drying, laser marking, and packaging.
PRODUCT APPLICATION
Water Meter Manufacturing: Ideal for the full automation of mechanical and smart water meter assembly, including the automation of shell, core, gasket, glass, Teflon washer, and cover assembly.
Electronics Industry: Suitable for the assembly and testing of electronic components, enhancing production efficiency and product quality.
Medical Devices: Used for the assembly of surgical instruments and pharmaceutical packaging, ensuring product quality and safety.
Appliance Manufacturing: Applicable for the assembly and testing of home appliances such as televisions, refrigerators, and washing machines.
Automotive Manufacturing: Employed in the assembly of automotive parts, including body welding, engine assembly, and chassis assembly.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Small Assembly Line remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
