Magnetic Hold permanent lifting magnets accomplish what most electromagnets do without a need for electrical power. They utilize
rare earth permanent magnets to produce an attraction that can be used for holding, loading, unloading and transporting heavy
ferrous steel pieces. Our lifting magnets are designed with safety and simple operation in mind.

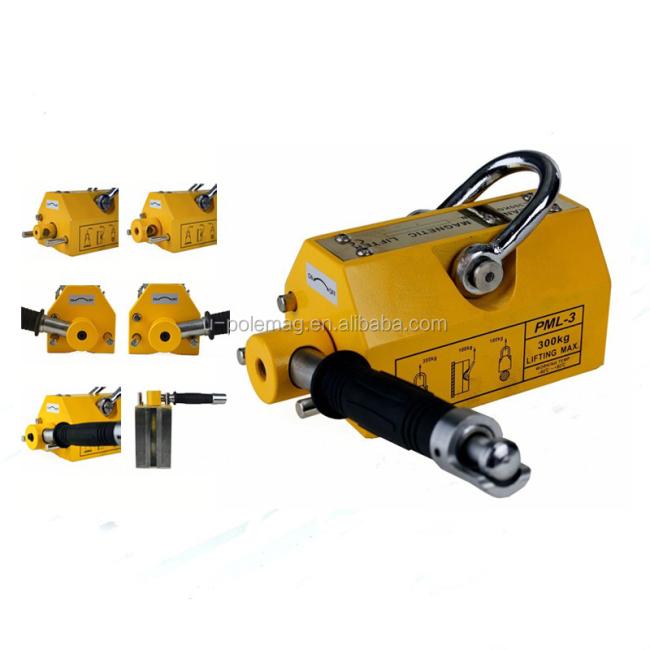

Video Technical Support PML-300 SDF3.5 Permanent Magnetic Lifter
Price:
$600.00/pieces 1-19 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
U-Polemag
Product Description
Description
Information | ||
Product Name | Permanent Lifting Magnet / Magnetic Lifter | |
Material | NeFeB Magnet + Fe37 | |
Size | 400x250x77mm | |
Dead Weight | Approx 7.5Kgs | |
Pull Force | From 100Kgs to 7000Kgs | |
Safe Factor | 3.5 | |
Certication | CE | |
Mark /Label: | Support | |
Product Show

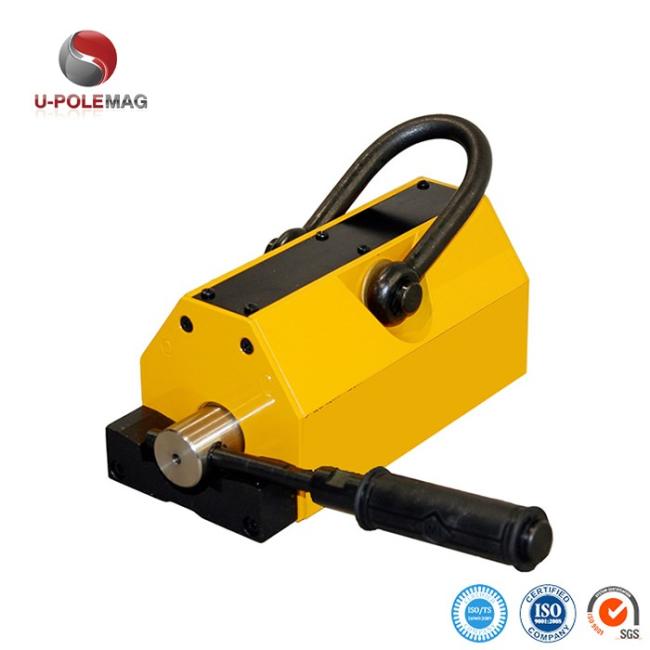

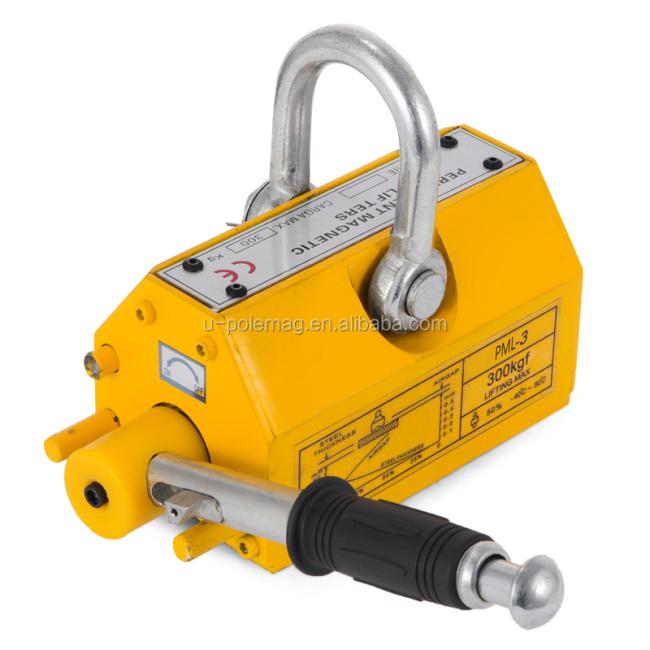

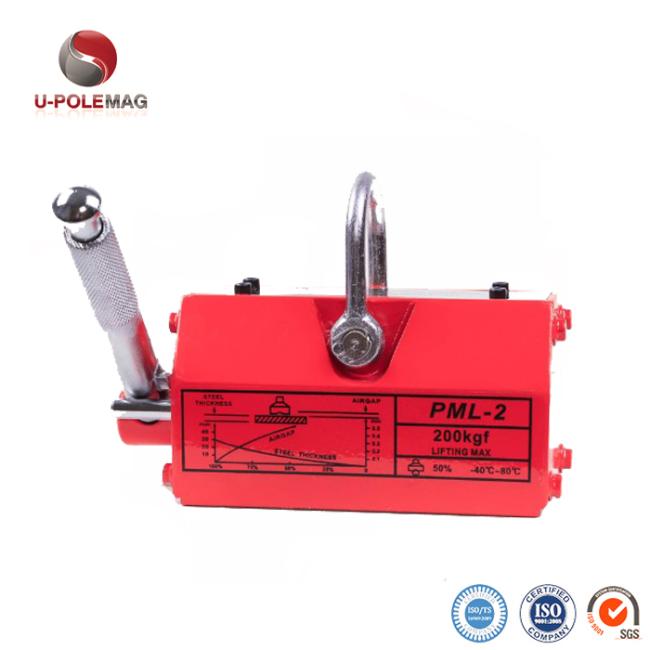

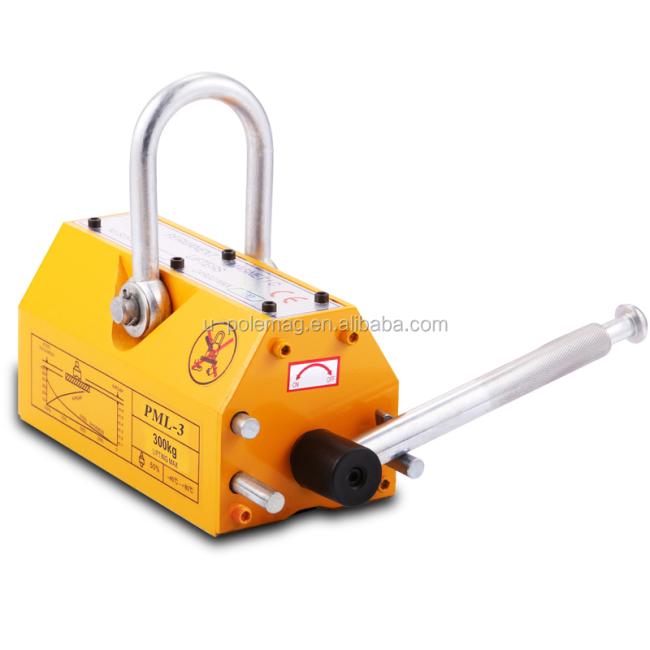

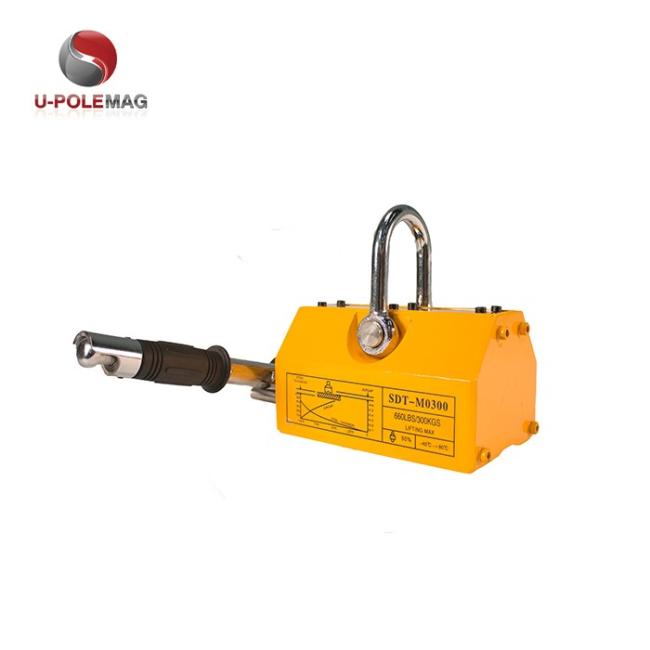

Permanent Lifting Magnet
Benefits of Permanent Lifting Magnets

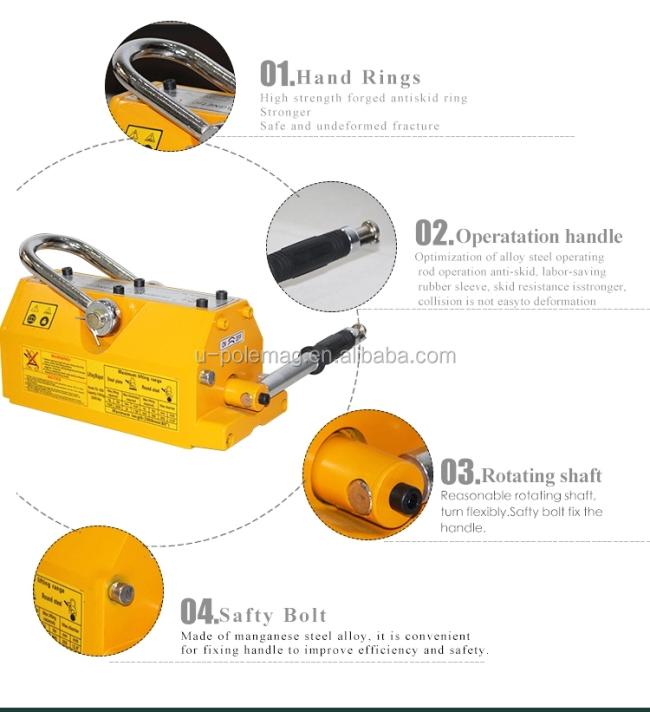

* Consistent strength with an on/off handle which features a safety device to prevent accidental movement of the on-off handle
* Does not require electricity
* Ease of use, usually requiring only one person to operate
* Compact and lightweight
* Causes less damage to the transported material, compared to a typical crane or hook.
SAFETY NOTES:
①Never stand under load being lifted. Always use extra caution. Only use magnetic lifts on material that does not flex or bend. The surface of the lift and the load need to be clean & free of chips, oil, slag, dirt, etc. Lift must be centered on the load. Not recommended for paint or finish coated surfaces. Operating Temperature shall be -40°C to +80°C and without strong vibration and impact.

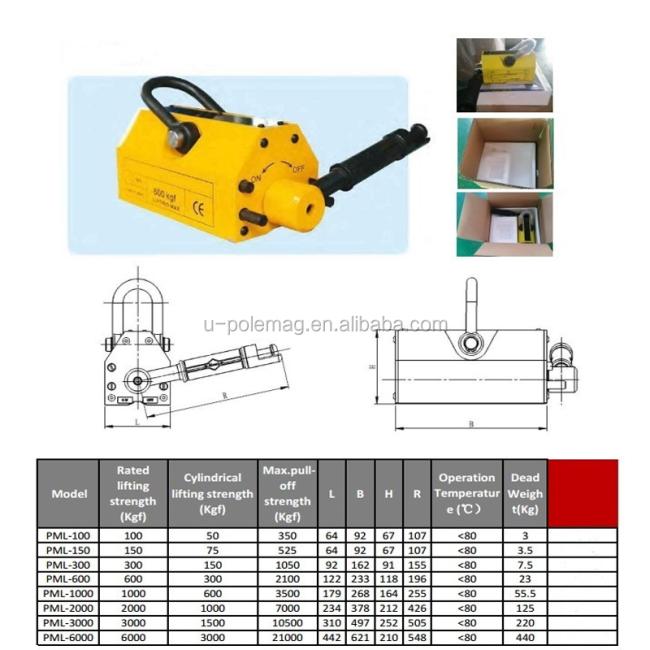

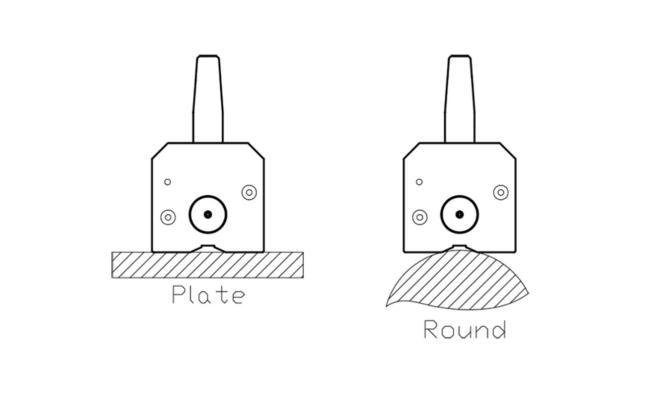

②Our different permanent lifting magnets PML-100, PML-300, PML-600 and son have a Rated lifting power of 100Kgs, 300kgs, 600 Kgs respectively for flat objects and 50, 150 and 300 Kgs respectively for cylindrical objects. Lifting magnets can be used in multiples to lift loads larger than the maximum weight requirements. When utilizing multiple magnets, the magnets must be spaced evenly using a spreader bar. Contact us to discuss your lifting needs and find out how we can help you make your process easier and more efficient.
Operating Instructions
* The workpiece surface (magnetic ferrous surface) and the magnet pole surface must be clean and smooth to achieve maximum
efficiency. Ground and machined surface are ideal but a good clean surface on a ferrous or casting is acceptable provided a
sufficiently flat area available for a good magnetic contract with the workpiece
* There should be no air gap/inclusions between the magnet pole and the job surface
* Place the magnet on the ferrous surface. Unlock the lever by pulling it out and then turn it to the “ON“ position. Once it is
made “ON”, lock it by releasing it. For making it “OFF”, please follow the similar procedure. (Do not place on wooden surface
OR non-magnetic surface - it will not be possible to operate Lever to “ON” position)
* Move the load smoothly, avoid shocks and collisions
* To place/drop the lifted material, operate the lever to the “OFF” position
efficiency. Ground and machined surface are ideal but a good clean surface on a ferrous or casting is acceptable provided a
sufficiently flat area available for a good magnetic contract with the workpiece
* There should be no air gap/inclusions between the magnet pole and the job surface
* Place the magnet on the ferrous surface. Unlock the lever by pulling it out and then turn it to the “ON“ position. Once it is
made “ON”, lock it by releasing it. For making it “OFF”, please follow the similar procedure. (Do not place on wooden surface
OR non-magnetic surface - it will not be possible to operate Lever to “ON” position)
* Move the load smoothly, avoid shocks and collisions
* To place/drop the lifted material, operate the lever to the “OFF” position
Quality Assurance :

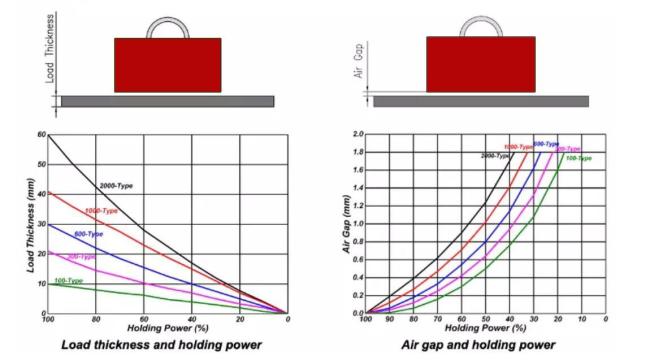

1）Safety Curve Capabilities of Permanent Lifting Magnet：
2）Pull Force Testing of Permanent Lifting Magnet
You May Like
Our Service
Strict Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Engineering Service
As custom magnet manufacturers, engineering is at the heart of our business
Valued Service
Internation exhibitions every year in USA and Germany for visiting and meeting
Our Company
Factory
60,000M2 Factory
200 workers
200 workers
Workshop
Our Workshop
Warehouse
Our warehouse
Friendly and Professional Sales Team
Our Team
Certifications
Packing & Delivery
1. Special logistics packaging
2. Suitable carton size
3. Wooden Box
Why PML’s Permanent Magnetic Lifters?
* These magnetic Lifters are ruggedly built
* High Lifting Capacity with respect to size & weight
* Works without Electrical Power
* No maintenance and operational costs
* Very easy to use - Save time & energy
* Made with high energy rare earth magnets (NdFeB)
* Mechanical Switching by turning a lever with a lock
* The system against switching off accidentally
* No damage to the workpiece being lifted
* Easily transportable
* Reliable
* High Lifting Capacity with respect to size & weight
* Works without Electrical Power
* No maintenance and operational costs
* Very easy to use - Save time & energy
* Made with high energy rare earth magnets (NdFeB)
* Mechanical Switching by turning a lever with a lock
* The system against switching off accidentally
* No damage to the workpiece being lifted
* Easily transportable
* Reliable
FAQ
Q1. Can I have a sample order for magnet lifter ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How long is your delivery time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for magnet lifter ?
A:We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4.How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for magnet lifter?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
