N45 Neodymium Magnet F50x50x10mm About 190g for Industrial and Heavy Duty Applications
Price:
$0.99/pieces 100-499 pieces
MOQ:
100 pieces
Delivery Time:
Negotiable
Brand:
U-polemag
Product Description
Product Name | N45 High Performance application block magnet neodymium |
Size | F50x50x10mm as requests |
Grade | N45 |
Coating | Nickel |
Weight | 190g |
Magnetism Direction | Thru 10mm direction |
Tolerence | +/-0.05mm |
Sample | About 10-15 days |
Products Show

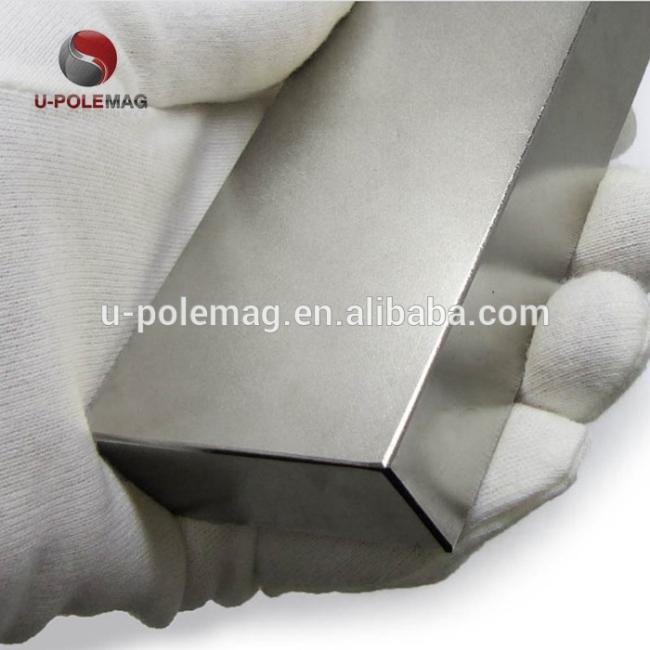

N45 Neodymium Block Magnet
Specification:
Shape : Rectangle
Material : NdFeB magnetic materials
Product Size : 30*30*5mm
Grade : N45
Usage:
1. Acoustic field: the speaker, receiver, microphone, alarm, stage audio, car audio and so on.
2. Electronics: permanent magnetic actuator vacuum circuit breakers, magnetic relays, meter, sound meter, a reed switch, sensors.
3. Electrical field: VCM, CD / DVD-ROM, generators, motors, servo motors, micro-motors,motors, vibration motors.
4. Machinery and equipment: magnetic separation,magnetic machinery.
5. Healthcare: magnetic health products and so on.
6. Wedding corsage badges, etc., can be replaced with a magnet attracts
every other clothes pins, so as not to damage the dress.
7. For the overlying metal drawing board for fixing the drawing paper. Magnetic blackboard whiteboard fixed file drawings.
8. Advertising magnets available to replace the original fixtures, at any time
convenient to replace the ad content.
9. Models piling, you can use small magnets to connect two widgets.
10. Studio, bulk magnet can be used to adsorb screws and other parts, even wrenches and other tools
! Warning
These magnets are very powerful which should be handled with great care.Do not allow children to play with them unsupervised as they could get injured.Especially pay attention to the samll magnets , please place in somewhere children can't reach.
Care should be used when handling two magnets as they can pull together with such force that pieces of the magnets can splinter off and cause injury.
Keep the magnets away from pacemakers and magnetic storage devices such as mobile phones, bank cards and computers.
Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter
following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel
plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets
much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,
silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
