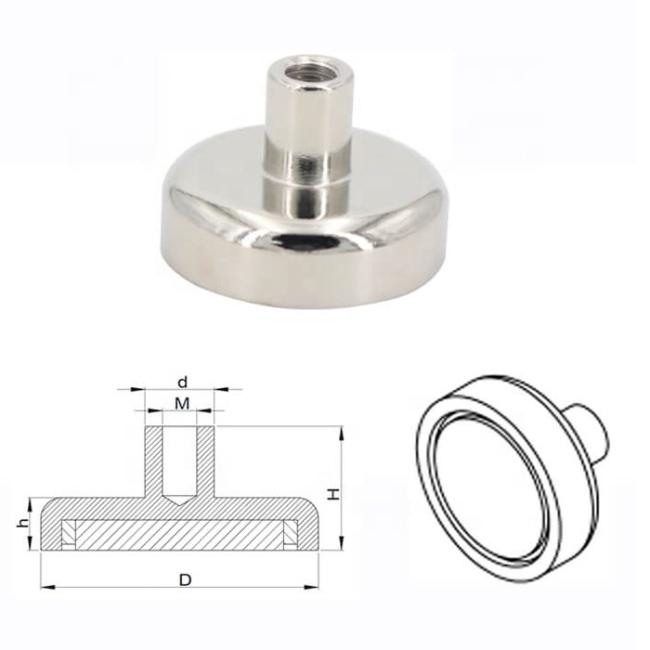

Composite Material Round NdFeB Magnet Neodymium Pot Magnet D60mm with 160kg Force
Neodymium Pot magnet with screw socket D60mm with 160kg force, is made of a super strong neodymium magnet encased inside a chrome plated steel cup. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 200kg! At the same time, the steel cup also protects the magnet from being damaged when frequently used. The counter sunk hole on the magnet is provided for the convenience of applications.
Features:
* These magnets have only one surface of magnetic attraction. This type of construction prevents further spread of magnetic field. Due to this, other items or machine parts in the vicinity of the pot magnets do not become magnetized.* These magnets have ability to retain their magnetic force indefinitely.
* The magnetic force of these magnets are only affected by the increased temperature and external magnetic force.
Applications:
This pot magnet can be used for magnetic holdings, magnetic fishing, magnetic mounting, car signs, magnetic devices and much more.
Precautions:
* The permanent pot magnets must not be exposed to radioactive radiations for longer duration as it might effect their magnetic strength.
* This can work within permissible temperature. If these magnets are used beyond permissible temperature limit it might again affect their magnetic strength.
Product Name | Neodymium Pot magnet with screw socket D60mm with 160kg force |
Material | Q235 steel +NdFeB magnet |
Coating | Nickel |
Size | D60x15m-M8 or other size |
Breakaway | 160kg or higher |
Advantage | Large, strong Neodymium (N35) pot magnets with a M8 threaded collar on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force. |
Used | metal and steel industry, tool shops, used to position ferrous-magnetic work pieces |

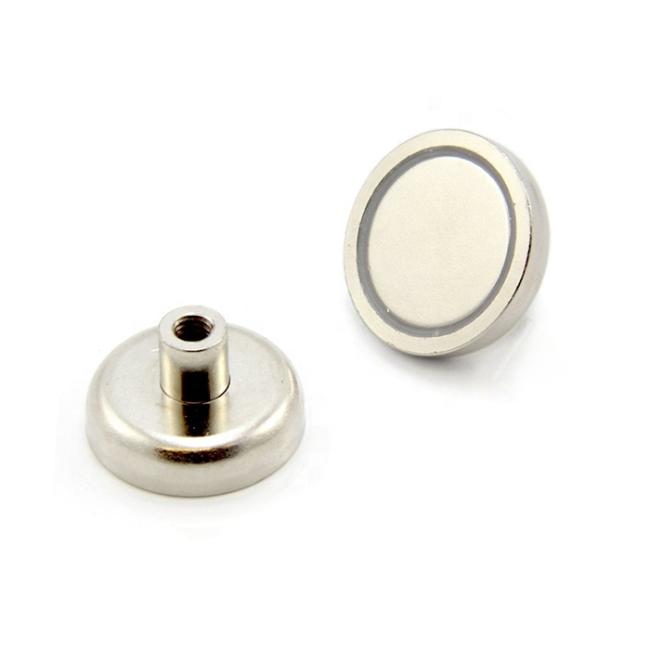

Neodymium NdFeB Shallow Pot magnet with Screw

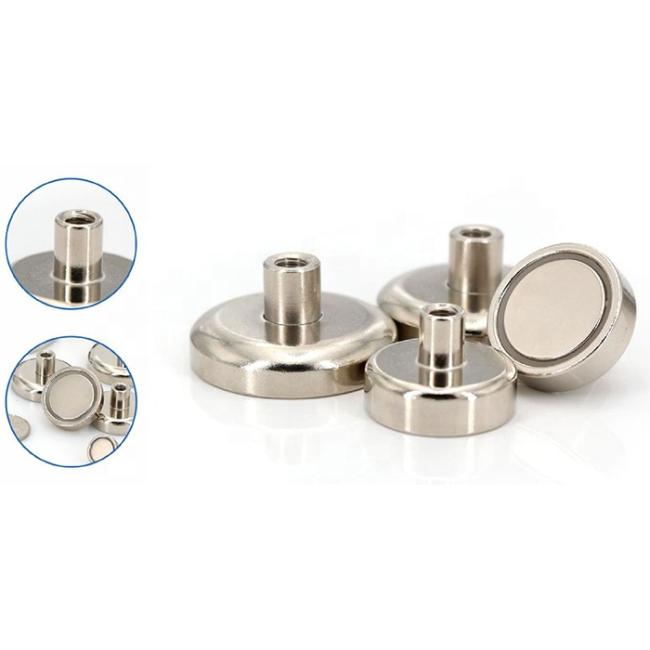

Pot magnet (NdFeB), with screwed nut, Nickel coating, body stamping machining

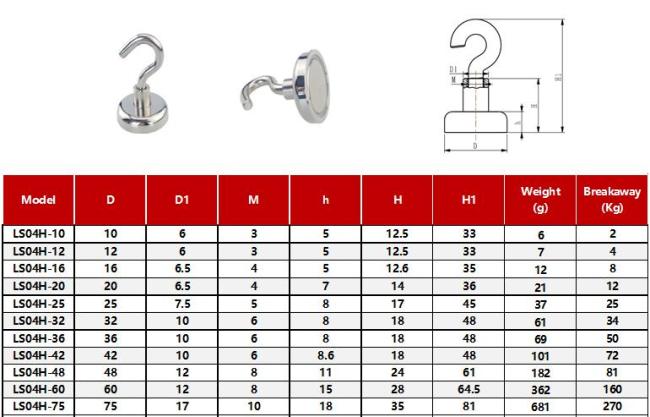

Hook magnet (NdFeB), with hook, Nickel coating, body stamping machining

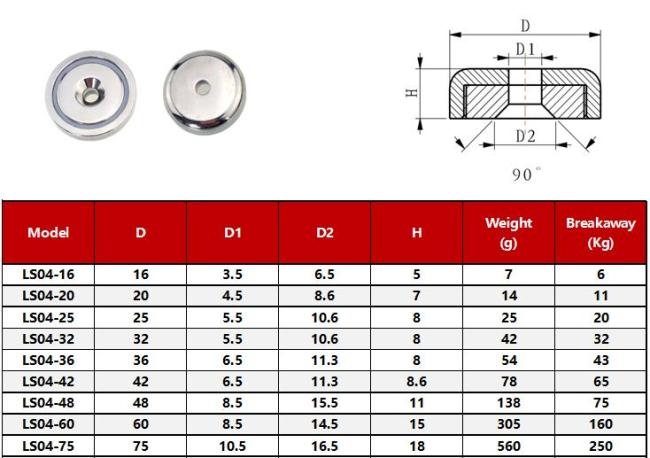

Pot magnet (NdFeB), with counter bore, Nickel coating, body stamping machining
Pot magnet (NdFeB), with external thread, Nickel coating, body stamping machining
Pull force description
If any questions about size or pull force , please feel free to contact us. Customization is welcome.
Packing Details : regular carton package for Neodymium POT Magnet
Delivery Details : In generally 30 days for batch order
Our Service : Prompt response ,Customized package , Amazon FBA
1. Netural Paper Box
2. Anti-magnetization package
3. Carton package
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer of neodymium magnets and magnetic assemblies over 20 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
