Speed Heat-Seal Desiccant Packing Machine for Manufacturing Plant Weight KG 1800
SL-SBZB450RF series is designed and developed for packaging pressing or forming desiccants, and requires a specific desiccant product packaging film, and adopts a heat-sealing sealing method. The packaging speed is fast, the heat sealing effect is good, and it is equipped with a vibrating hopper for conveying and sorting materials.
| Item | Technical Parameters | ||
| SL-SBZB450RF Packing machine | Packing speed | 100-200pcs/min | According to the size |
| Product size range | D:18mm* H: 9.5mm | ||
| Total power | 4.0KW | ||
| Air supply | 0.6Mpa | ||
| Wrapper material | Desiccant paper; AIHUA paper | ||
| Wrapper size | Width: Max.130mm | ||
| Machine body | Spheroidal graphite casting | Strong and stability | |
| Frock clamp | Alloy steel | Strong and stability | |
| Contact area | SUS and PU | Food grade | |
| Wrapper holder | Single | As required | |
| SL-SBVF | Contact area | SUS 304 | |
| Frame | Stainless steel | ||
| Part | Brand & Origin | Remarks |
| Servo Motor: | Panasonic(Japan) | Paper Feeder |
| Touch Screen: | Omron(Japan) | Easy to Operate |
| Material Sensor: | Leuze(Germany) |
|
| Color Mark Sensor: | Leuze(Germany) |
|
| Oversize Material Sensor: | Leuze(Germany) |
|
| PLC Controller: | Siemens(Germany) | Integrated, Intelligent |
| Frequency Converter: | Delta(Taiwan) | Motor Speed Control |
| Circuit Breaker: | Schneider(Germany) |
|
| Solid Relay: | Omron(Japan) |
|
| Switch Power Supply: | Omron(Japan) |
|
| Arranging Sections: | Five | As Required |
| Frame: | Stainless Steel |
|
| Servo Motor Control: | Schneider(Germany) |

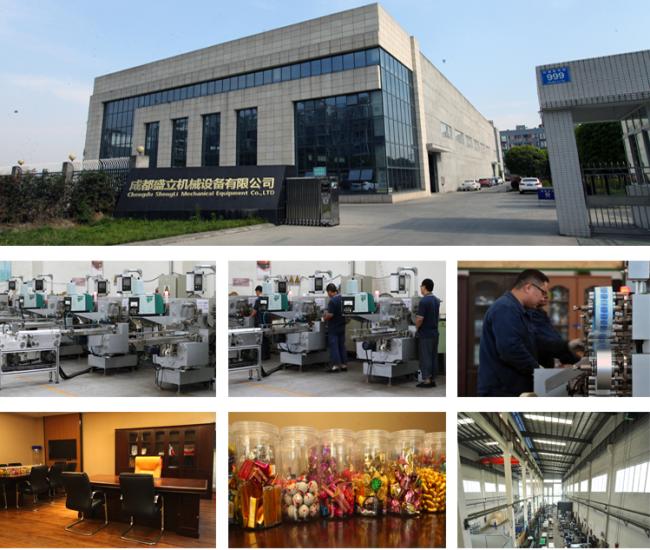

Chengdu Shengli Machinery Equipment Co., Ltd. is committed to the design, development, production, and sales of food machinery, providing customers with professional services and solutions for more than 16 years. (Company predecessor is Chengdu WealthRise Complete Mechanical Engineering Co., Ltd).
| Standard Export Wooden Case | |||
| Item | Dimensions | Volume | Gross Weight |
| Packing Machine | 2970*1520*2200mm | 10CBM | 1600KG |
| Vibration Feeder SL-SBVF | 1160*870*1560mm | 1.5CBM | 200KG |
|
| Total: | 11.5CBM | 1800KG |
Q1: What’s the payment term you accept?
A1: By T/T or L/C.
Q2: What's your delivery time?
A2: Normal time is 60 days for a single packing machine, except for custom packing machines. 35 days for stocks.
Q3: How do you pack your machine for shipment?
A3: The machine is overwrapped with plastic film and then packed in fully closed standard wooden cases with a strong bottom pallet.
Q4: How to control your machine quality?
A4: Before delivery, we will send you the pictures and videos for you to check the machine quality. And also you can arrange for quality checking by yourself or by your contacts in China.
Q5: Which countries have you ever exported your machines to?
A5: Malaysia, Belgium, Korea, Russia, Hungary, USA(California), Mexico, India, Turkey, Tajikistan, Uzbekistan, Ukraine, Vietnam, Ecuador, Algeria, California, and Ukraine.
Q6: What’s the language used for the operating system?
A6: English, Chinese, As required.
Q7: What’s the warranty period?
A7: One year guarantee for the quality, if components are damaged naturally, we will replace them freely. If Manually damaged, the client's Response for the costs.
Q9: What about after-sales service?
A9: Quick response for the after-sales service. When necessary, we will send our technician to the customer’s factory for installing, debugging, and operating the machines, as well as free technical training service. But, our customer shall bear the service cost for a visa, round-trip ticket, meal, hotel, and a daily allowance of usd100.
