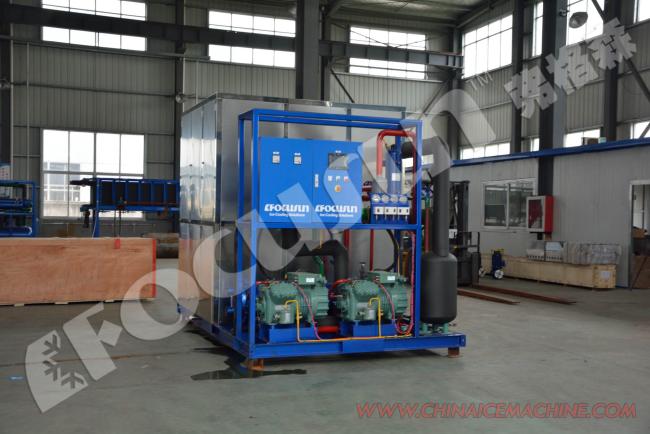

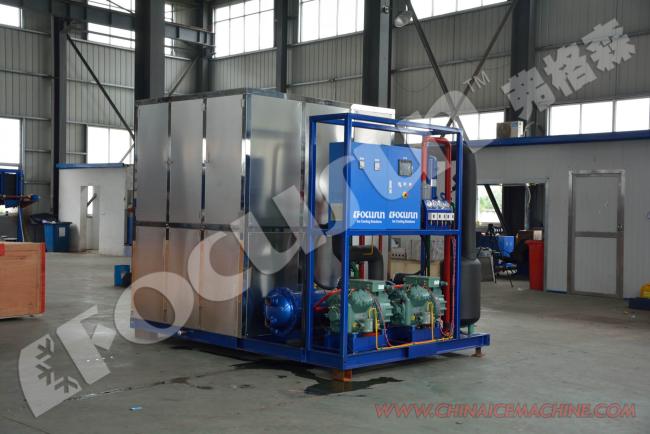

FOCUSUN Domestic 20t Plate Ice Machine 43000*2300*2500mm 72KW Installation Power

Features of Focusun plate ice :

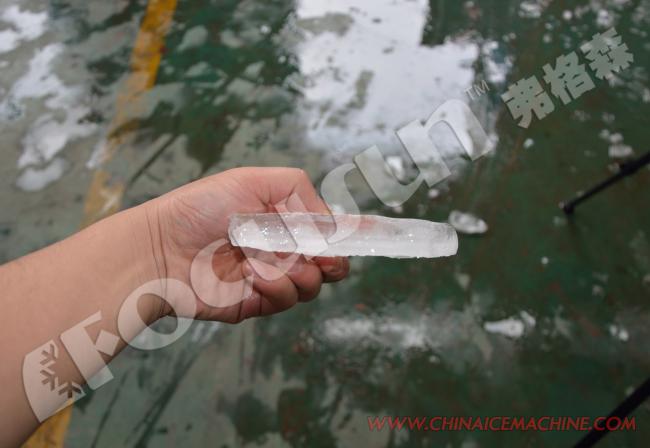

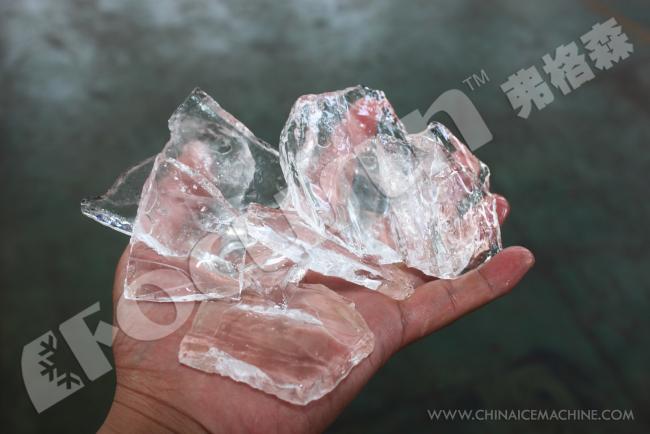

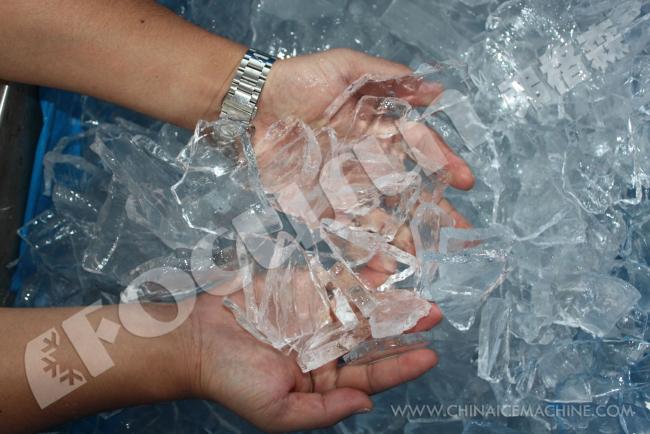

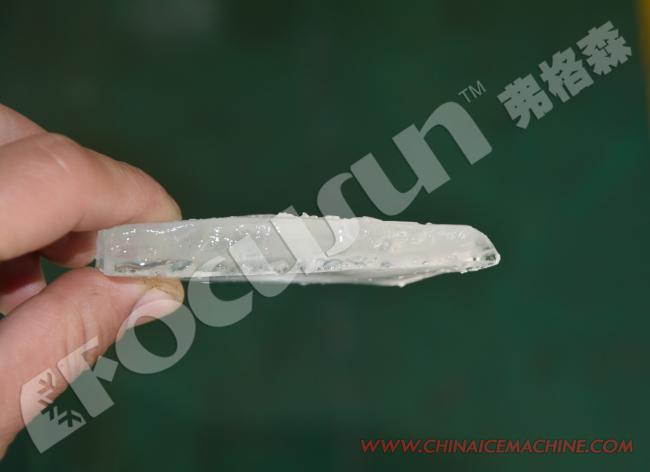

Plate Ice irregular transparent sheet ice, size around of 40×40mm to 80×80mm, which dimension is adjustable on request. Ice thickness is between 10~15mm, and it reaches to 20mm by Focusun tailor-made plate ice machine. The thickness of plate ice makes it suitable for long storage..

High density, small surface area and good cool storage effect.

Even cooling effect, good ventilation performance, and constant refrigerating temperature,

suitable for refrigeration of aquatic products.

Advantages:

Focusun Plate Ice Machine Features
Plate ice making machine use hot gas to make ice fall off fast and the whole process takes only 120 seconds;
After plate ice falls off, the water of low temperature is used for ice-making to save energy consumption and increase the iceproduction volume;
Add function of evacuating the remainder of the water in the cold water tank so that ice can be more clean and transparent;
The use of stainless steel evaporator meet the health and safety requirements;
Laser welding technology ensures minimum possibility of evaporator deform;
Evaporator plate is free to increase or decrease so there are more styles of products;
Time control can adjust the thickness of the plate ice;
Integrated modular equipment facilitates installation and maintenance on spot;
Touch screen, reserve function, Focusun mobile app remote video monitoring are available on request;

If the ice storage is full,the plate ice machine will switch automatically into the water tank control mode to make sure the cold water inside the cold water tank always be at the set level. If the ice level inside the ice storage is again going down, the ice plate machine will switch again automatically ino the ice makin mode. During perids in which the plate ice plant is not producing, the plant automatically controls the water temperatue of the cold water using the recrcuation mode.

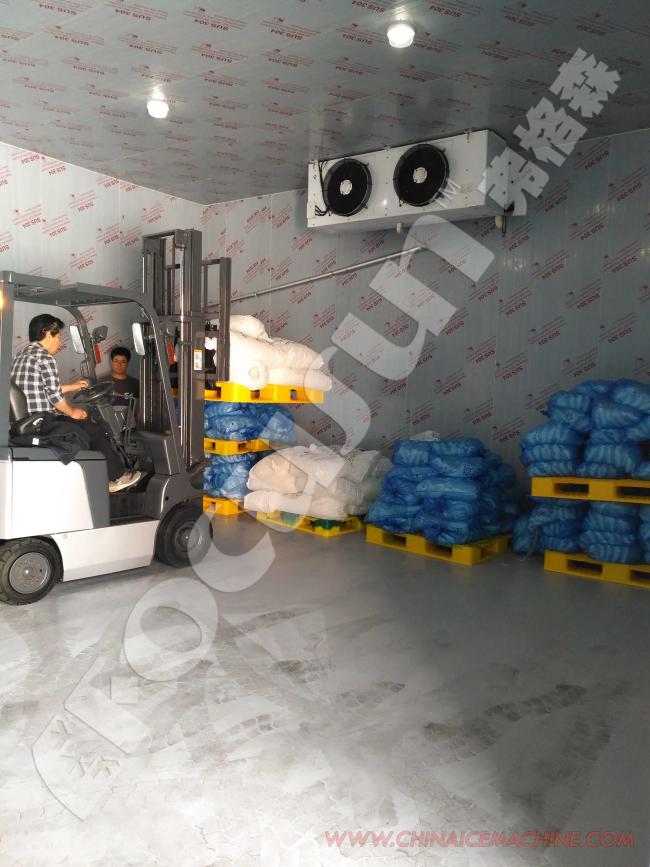

Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.

You could choose any models you like:
