Lowest 1T 2T 3T 5T 10T 20T Block Ice Machine for Fresh Food Fishery Vegetables and Fruits
FOCUSUN SUPPLY 5 DIFFERENT KINDS OF ICE MACHINES INCLUDING BLOCK ICE MACHINE, TUBE ICE MACHINE, FLAKE ICE MACHINE, CUBE ICE MACHINE AND OTHER RELATIVE COOLING PROJECTS. If you need to build one ice plant, contact us for technical questions.
Cheap Price of 10Ton/D Direct Refrigeration Block Ice Machine
Technical specification
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 10000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | Deg C | 35 |
| Waterinlet temperature | Deg C | 20 | |
| Operating power | Total running power | Kw | 39.83 |
| Installment power | Kw | 50 | |
| Cooling tower fan | Kw | 1.1 | |
| Cooling water pump | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 86.6 | |
| Operating power | Kw | 35.98 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25×2sets | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 1800×1000×1450 | |
| Number of evaporator | 2 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D.×H)(mm) | 2000×2410 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 1680 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |
1.Application:
a.Ice factory
b.Fresh preservation, seafood, fish industry
c.Ice weight, small block ice or big block ice as you need
d.Edible ice, for hotels, restaurant
e. Comparing to other forms of ice, block ice longest storage time

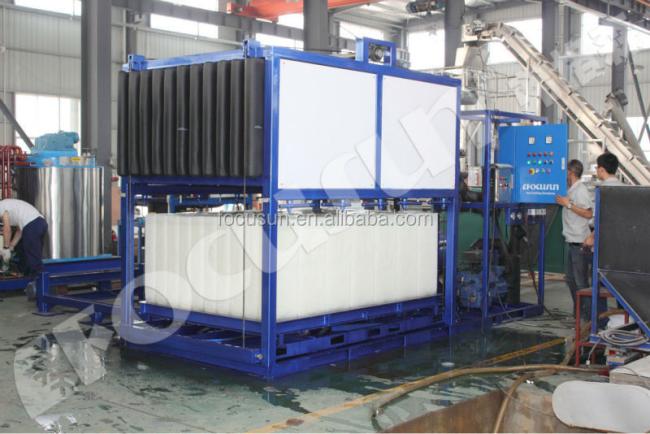

2. Direct Refrigeration Block Ice Machine ( Eatable block ice)
-
1. The evaporator adopts special aluminium alloy plate which is more durable and reaches food hygiene requirements.
- 2. Ice thawing and ice doffing are fully automatic. No manual work is needed and the process is time-saving thus more efficient.

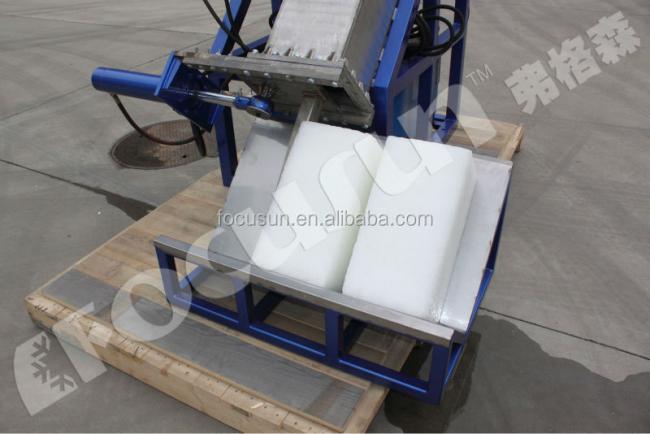

- 3. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.
- 4. The whole batch of ice blocks can be moved by forklift. Quick and convenient.
- 5. Module design makes the ice maker easy to transport, move and install.
- 6. Every direct refrigeration block ice machine can be designed and produced according to your specific requirements.

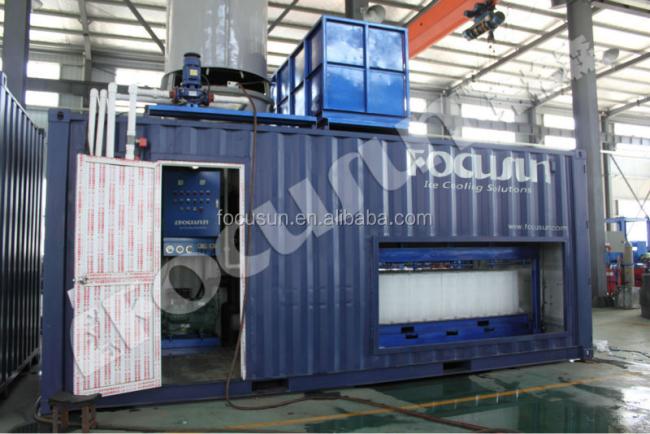

- 7. The direct refrigeration block ice maker machine can be installed in 20ft or 40ft brand new container with other relevant equipments.
- 8. Bitzer refrigeration system to guarantee performance;
- 9. Good heat isulation for water tank;
- 10. Focusun block ice machine is Good appearance,easy opeartion and maintenance.
- 11. Machine can be made into containerized model
3. Block ice compactor
a. To get block ice, you can also buy our ice compactor, which is used to compact flake ice into different size block ice.
1. For LCL, packaged by wood crate.
