450KG Ice Storage Capacity Plate Ice Machine Perfect for Fresh-keeping 5 Ton Per Day
Focusun 5000kgs per day Plate Ice Making Machine

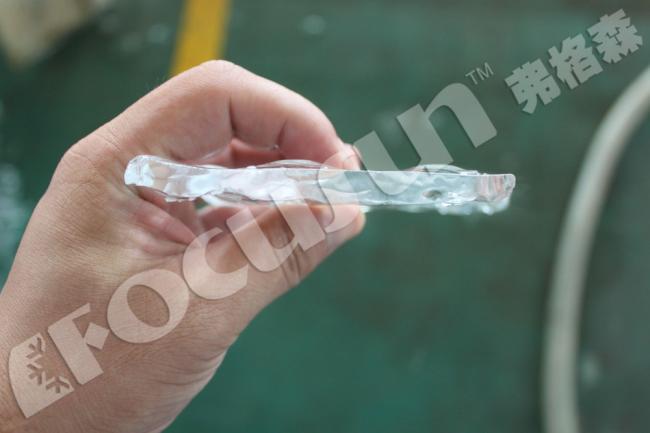

Plate ice introduction: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.
Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.
| Ice making process introduction: | |||||
| When the refrigeration system begins operating normally, the water in the tank below is transported from the cold water tank to the cold water sprinkler by the cold water pump. It is then evenly sprinkled on the surface of the evaporator. Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle. After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle. |
- By using water and heat Fluorine, the whole ice off process only needs 120 seconds.
- Ice making time adopts time control, which can be set to adjust the thickness of the ice.
- It conforms to the sanitary security requirements by adopting stainless steel SUS304, aluminum alloy plate chip evaporator.
- Ice dump and water drainage function makes ice more clean and transparent.
- It is convenient to install and maintain because of its modular equipment.
All modules are proper for container shipping.
| Model | Capacity | Refrigerant | Electricity consumption | Installment power | Operating weight | Dimension |
|---|---|---|---|---|---|---|
| -- | Ton/D | -- | Kw | Kw | Kg | mm |
| FIP-80 | 8 | R22/R404A | 29.25 | 35 | Unit:670 | 1200×800×1650 |
| Evaporator:1356 | 2200×1400×2200 | |||||
| Cooling tower:540 | 1500×2205 | |||||
| FIP-100 | 10 | R22/R404A | 39.07 | 48 | Unit:1150 | 1600×1200×1800 |
| Evaporator:1460 | 2200×1700×2200 | |||||
| Cooling tower:670 | 2000×2410 | |||||
| FIP-120 | 12 | R22/R404A | 44.47 | 55 | Unit:1250 | 1600×1250×1800 |
| Evaporato:1560 | 2200×1900×2200 | |||||
| Cooling tower:670 | 2000×2410 | |||||
| FIP-160 | 16 | R22/R404A | 56.35 | 70 | Unit:1450 | 1750×1250×1800 |
| Evaporato:1760 | 2200×2100×2200 | |||||
| Cooling tower:1120 | 2175×2565 | |||||
| FIP-200 | 20 | R22/R404A | 84.00 | 100 | Unit:2150 | 2450×1600×1800 |
| Evaporato:2680 | 3800×2200×2450 | |||||
| Cooling tower:1300 | 2650×2565 | |||||
| FIP-240 | 24 | R22/R404A | 100.10 | 125 | Unit:2450 | 2700×2200×2200 |
| Evaporato:3250 | 4500×2200×2450 | |||||
| Cooling tower:1300 | 2650×2565 | |||||
| FIP-320 | 32 | R22/R404A | 124.00 | 150 | Unit:2550 | 2700×2200×2200 |
| Evaporato:3760 | 3200×2200×2450 | |||||
| Cooling tower:1630 | 3050×2780 | |||||
| FIP-400 | 42 | R22/R404A | 154.70 | 200 | Unit:2850 | 3200×2200×2200 |
| Evaporato:5460 | 3800×2200×2450 | |||||
| Cooling tower:2730 | 3300×2785 | |||||
| FIP-480 | 48 | R22/R404A | 189.10 | 230 | Unit:3210 | 3200×2200×2200 |
| Evaporato:5040 | 3200×2200×2450 | |||||
| Cooling tower:3640 | 3770×3490 | |||||
| Standard condition: Dry bulb temperature is 33℃ and water inlet temperature is 20℃. | ||||||
| Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months. Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost. | |
| Process: | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: |
|
| A | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| B | Have a negotiation of the compensation and sign agreements |
| C | Our After-Sales Department will perform the duties as the agreement |
