Automatic Ice Tube Making Machine for Sales in Philippines 2000kgs Daily Production
Price:
$6,888.00/units
MOQ:
1pc
Delivery Time:
Negotiable
Brand:
FOCUSUN
Product Description
Product Overview

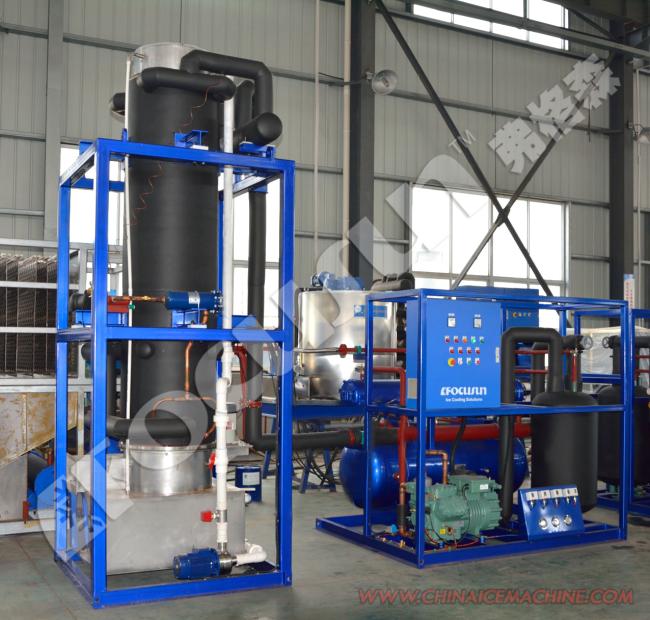

Focusun Automatic Tube Ice Machine
Focusun, with over 80 years’ experience in refrigeration technology, is one of the world’s leading manufactures and suppliers of ice machines. Focusun has provided full sets of refrigeration solutions for over ten thousands of clients around the world, and won their widely acclaim and trust.
Tube ice features：Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.
Application: Daily eating, keeping vegetable and seafood fresh, laboratory and medical applications and concrete cooling and
mixing, etc.
System solutions：Fully-automatic ice packing machine，semi-automatic ice packing machine，ice storage room，ice crusher
Application: Daily eating, keeping vegetable and seafood fresh, laboratory and medical applications and concrete cooling and
mixing, etc.
System solutions：Fully-automatic ice packing machine，semi-automatic ice packing machine，ice storage room，ice crusher
Tube Ice Spacification
THREE ICE DIAMETER FOR CHOICE
Tube ice is a kind of hollow cylindrical ice with external diameter ø221、ø28、ø34mm and length 35～50mm. The hole diameter is usually ø5～10mm and it can be adjusted according to ice making time.
99%Transparent Tube Ice
No | Item | Data |
1 | Operating Power | 35kw |
2 | Installation Power | 50kw |
3 | Condenser Capacity | 112kw |
4 | Operating Weight | 2.8MT |
5 | Equipment Size | 440x1600x3553(LxWxH mm) |
6 | Refrigerant | R404a/R22 |
7 | Transformer | 80KVA |
8 | Generator | 150KVA |
Durable，good quality stainless steel material insurance！
Smooth ice outlet feeling， 15~20 minutes per production!
Detailed Images
Machine Parts
Name: Evaporator module
The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .
Main Features：
Safe, Hygeian： The materials of the evaporator are all process by SUS304,PE, alluminum alloy and etc. By using over-rounded design, there is no blind spot inside the machine through cleaning, which meets the health requirements.
Machine Parts
Name: Ice generator
The main part of the tube ice machine is the ice generator, a vertical shell-and-tube vessel surrounded by a water tank. Special
water distributors on top of each tube control an even,spiral supply of water down the inside of the tubes.Water is collected in a tank beneath the ice generator and pumped back up to the tank at the top .
Ice Application
Tube ice is widely used in hotels, restaurants, bars, flight kitchens, catering, concrete cooling, chemical industry processing, food production processing, fishing industry and a variety of laboratory and medical applications.
Smart APP
Foucusun Direct Refrigeration Block Ice Machine is equipped with the smart APP,which can be an unique design in the Ice Making Machine.It will be much more convenient to operate the machine.
Focusun Inte-star Control System APP includes the following features：
1.Check all running data and working status of the machine anytime and anywhere.
2.Realize remote on/off operation and improve work efficiency.
3.Realize one-click report when find features,24hours fast response.
4.Regular maintenance warning to protect your machine.
Product Configuration
Bitzer compressor
Simens PLC
Danfoss Controller
Focusun Certificates
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with
reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with
reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
Customer Site
On-set Installation in India
On-set Installation in Mali
On-set Installation in Oman
