Sealing Bag Packing Machine for 1kg 5kg 10kg Ice Cubes Tubes Video Outgoing-Inspection
Price:
$30,000.00 - $42,800.00/units
MOQ:
1pc
Delivery Time:
Negotiable
Product Description
Detailed Images
FIP-01A-Ⅰ
Hygiene, high quality SUS04;
Full functions of feeding, weighing, packing, filling, sealing, printing, punching(optional), counting etc;
The maximum hourly capacity is 3 tons;
The weighing device can be set at 0.2-5kg per bag as per your requirements;
Big ice inlet hopper realizes no ice loss;
PVC and stainless steel 304 conveyor belt, pollution prevents and keep bags clean. Its length can be adjusted.
Full functions of feeding, weighing, packing, filling, sealing, printing, punching(optional), counting etc;
The maximum hourly capacity is 3 tons;
The weighing device can be set at 0.2-5kg per bag as per your requirements;
Big ice inlet hopper realizes no ice loss;
PVC and stainless steel 304 conveyor belt, pollution prevents and keep bags clean. Its length can be adjusted.
FIP-01A-Ⅱ
Stainless Steel 304 covered, totally compliant with food-grade level;
Fully-automated ice bagging equipment saves manual labor;
Compact design and space-saving;
The maximum hourly capacity is 5 tons;
The weighing device can be set at 5-20kg per bag;
Equipped with PVC adjustable conveyor belt.
Fully-automated ice bagging equipment saves manual labor;
Compact design and space-saving;
The maximum hourly capacity is 5 tons;
The weighing device can be set at 5-20kg per bag;
Equipped with PVC adjustable conveyor belt.
Technical Parameters
Model | Capacity | Measurement | Metering | Speed | Power consumption | ||||
FIP-01A-Ⅰ | 3000Kg/hr | 3500*2005*5400mm | 200g-5kg | 6-10bags/min | 6kw | ||||
FIP-01A-Ⅱ | 5000Kg/hr | 2100*1000*2600mm | 5kg-20kg | 5-8bags/min | 3.8kw | ||||
Main Components

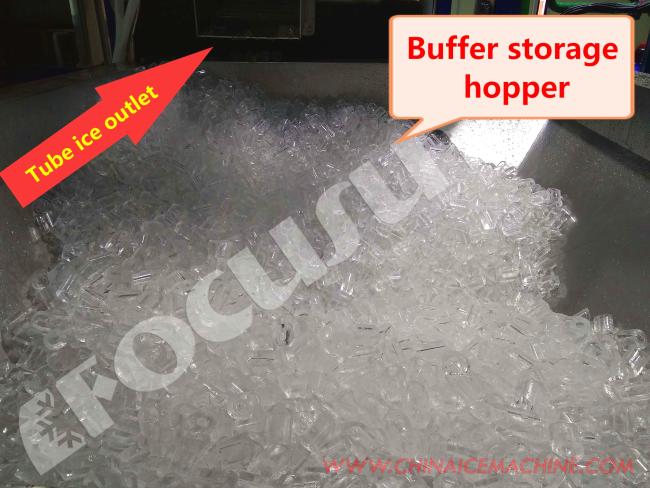

Ice from ice outlet to buffer storage hopper of fully-automatic ice packing machine.

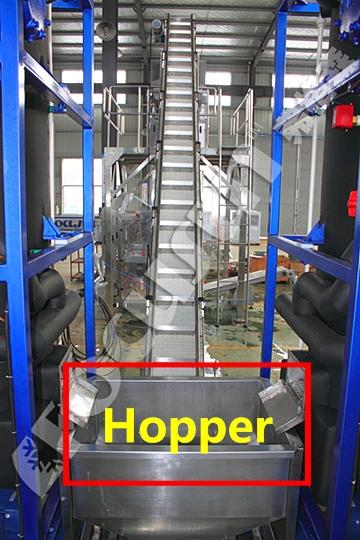

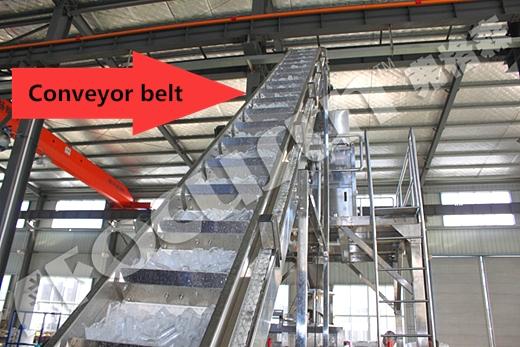

Stainless steel elevator lifts ice into hopper of weigher through elevator.

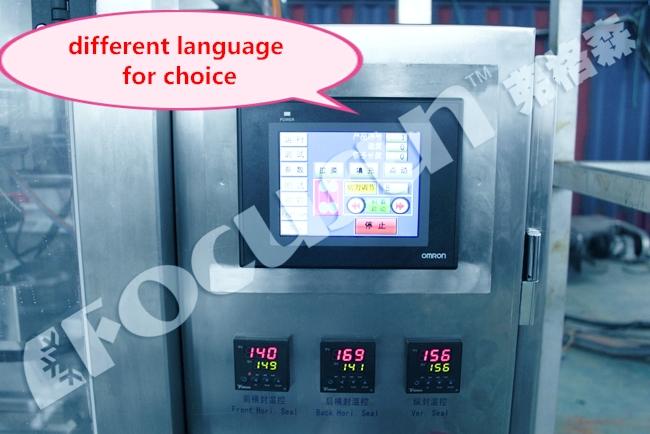

Machine Touch Screen:Preset the parameters on touch screen of weighing machine. After ice delivery in the storage hopper, weighing and filling begin automatically.

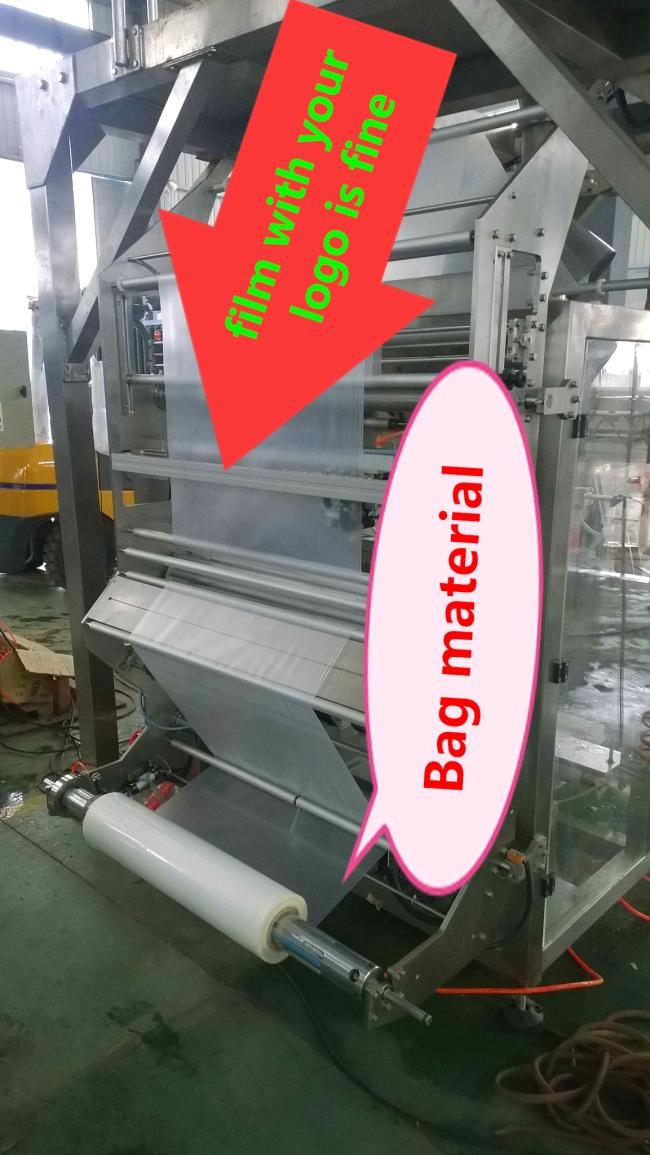

Ice filled in the FIP-01A-I packing machine through the bag former. FIP-01A-I begin to bag –making, filling, packing, sealing, date coding, cutting, etc

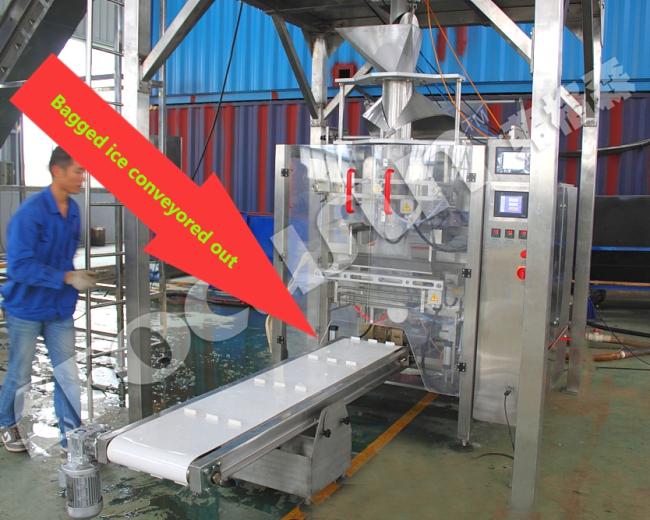

The finished products will be conveyed out by this belt conveyor, height can be adjusted.
