sino-holyson HSE-60/38 20-110mm HDPE Pipe Extrusion Production Line / PE Pipe Manufacturing Machine

HSE-60/38 HDPE Pipe Extrusion Production Line

Diameter:20-110mm

General Introduction:

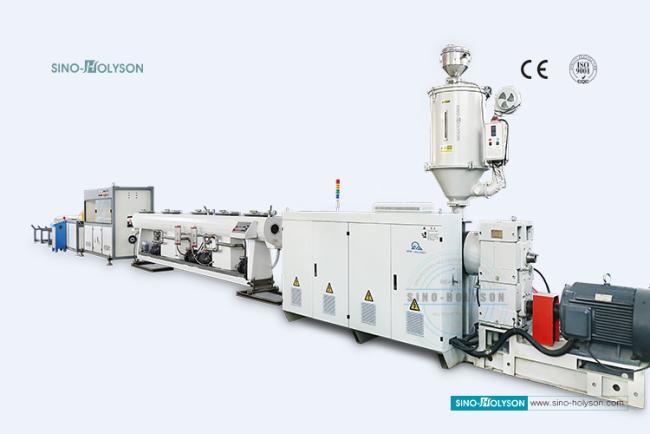

HSE-60/38 HDPE Pipe Extrusion Production Line

This machine is mainly designed for manufacturing HDPE/PP Pipes, which mainly used in irrigation, water supply area. The extruder can process PP/HDPE granules(Both virgin and Recycled, even with chalk-filled composite).

The mounted mould on this line is 20-110mm, full set of mould will include every detailed sized mandrel and sizing sleeve. The whole production line mechanical designing max. 150-200kg/h.

MOULD Design: Diameter:φ20-110mm, customized according to the Sample

TWO DIFFERENT MODELS

There are totally two different models for your choice based on diameter. Please match your sample size, choose a right model machine

Product Paramenters

Main Components of a full plant

The following machine units composed one production line.

Only Joecky Extruders are at your optional choice.

Detail Images

HSE-60/38 Single Screw Extruder

This 60/38 Single Screw Extruder is installed with 55kw driving motor,for processing PP/HDPE granules specially.

Gear reducer will use from top brand Guomao ZLYZ-225 model, with a reliable connection, and higher efficiency distribution, the extruder output can reach upto150-200kg/hr.

Need HSJ-65/33 Model

The following model for size 20~63mm, HSJ-65/33(22/30kw optional)

Click the picture for detailed explanation

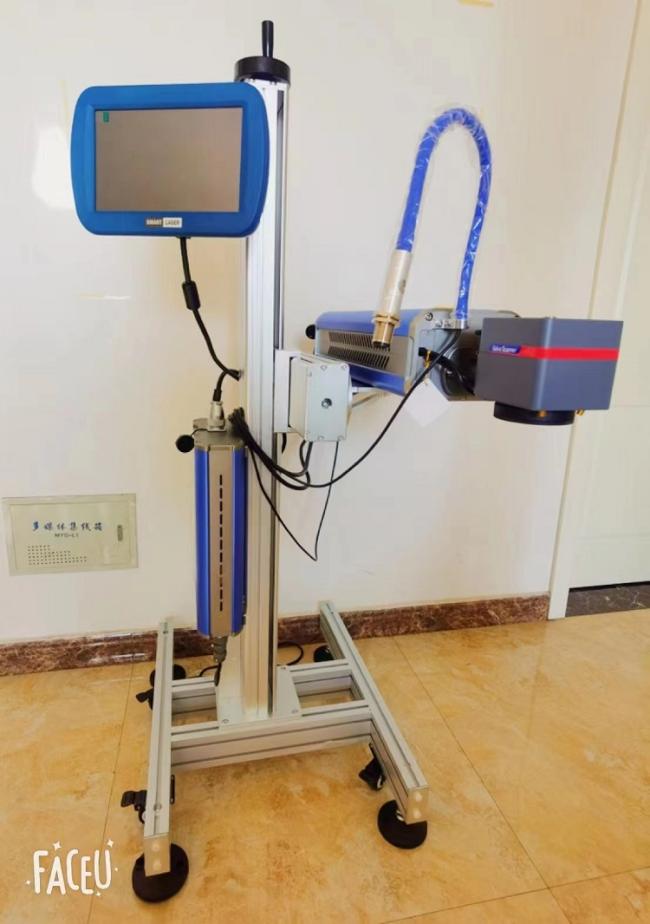

Fiber Laser Printer

Key benefits over traditional laser printers include faster print speeds up to 10-20 meters per minute, finer detail and resolution, and the ability to print on more durable and specialized substrates.

Extrusion Die Head

Model: GM-110mm

Mould adopts alloy structural steel, which can greatly improve the strength of the parts.

Under high temperature and high load,the mould still has good dimensional stability,

ensure the service life of mould and pipe quality.

The surface of the runner is treated with nitride or hard chromium plating to ensure wear resistance

and corrosion resistance and prolong the service life of the die.

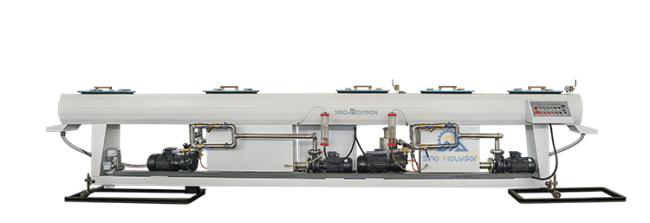

Vacuum Sizing Cooling Water Tank

Vacuum Sizing Cooling Water Tank main role is to set the pipe diameter, shape, cooling and guaranteed,

the roundness of the pipes, installed with water channel system and a bypass loop access road.

It also has an automatic monitoring system on water level and water temperature.

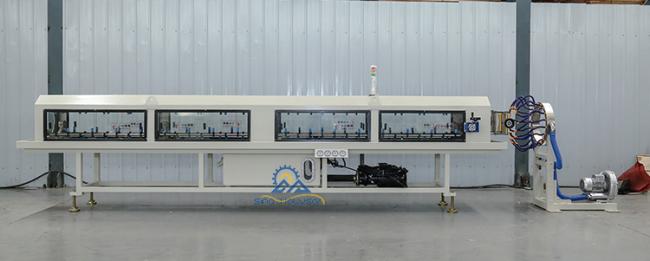

Spraying Water Cooling Tank

The Spraying Cooling Water Tank will improve the cooling effect greatly, and improve the production speed accordingly. By another side, it especially guarantees the straightness of the PE,PPR pipes.

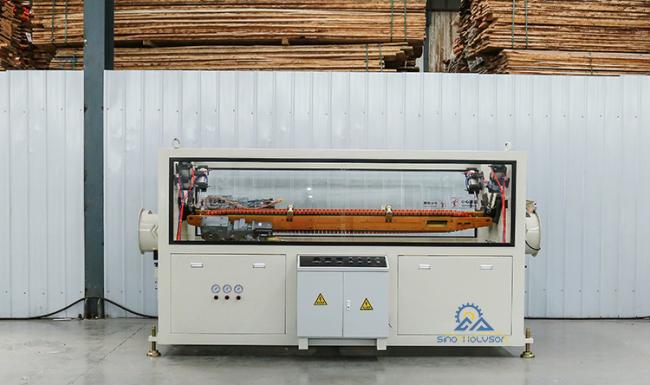

Double Claw Traction Machine

Also called by Two-Caterpillars Traction/ Haul off machine, with each crawler driven by frequency motor,

can automatically change its working speed synchronous with the whole production line speed.

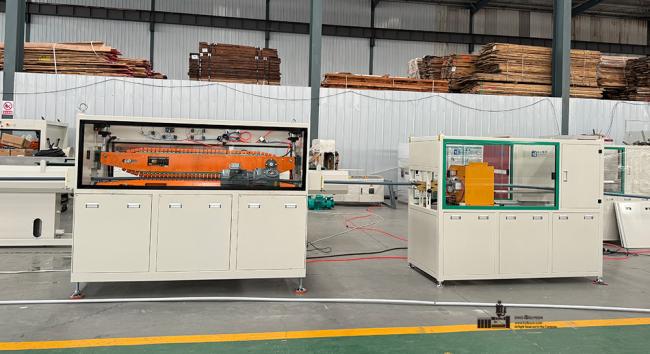

Non-dust Cutting Machine

The movement of length is controlled by cylinder;

ensure that the longitudinal speed synchronized with the production line.

Horizontal cutting machine with circular saw blades cutting and lateral movement with chain-belt transmission,

mobile speed can be adjusted, cutting a smooth.
