Rated Current 1.0A Nema 8 Spining Rotary Actuator Stepping Motor for Glue Machine
Price:
$27.96/pieces 5-99 pieces
MOQ:
5 pieces
Delivery Time:
Negotiable
Brand:
UMot
Product Description

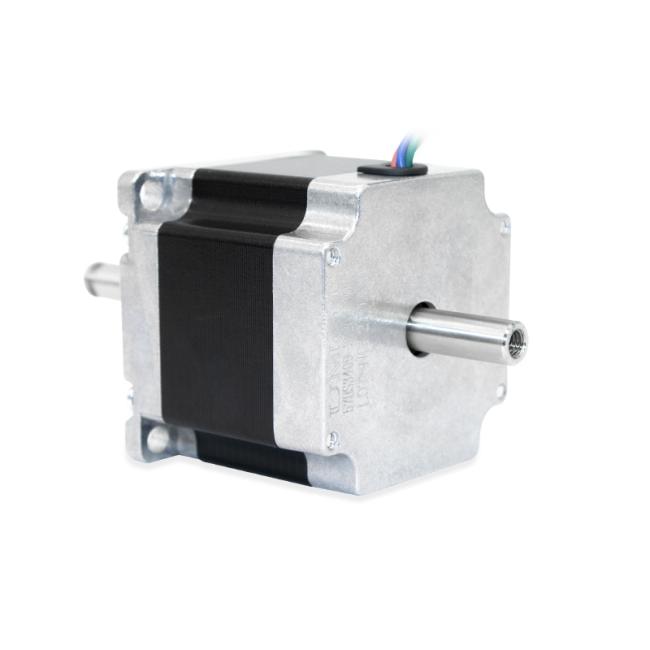

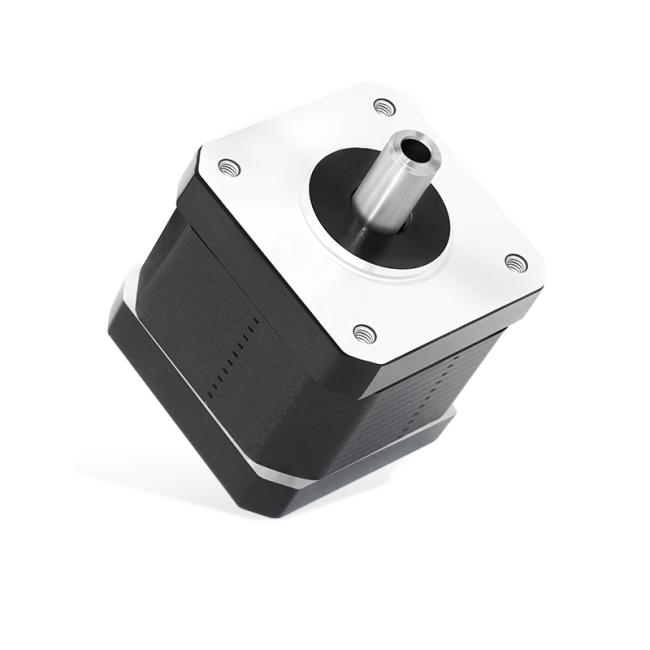

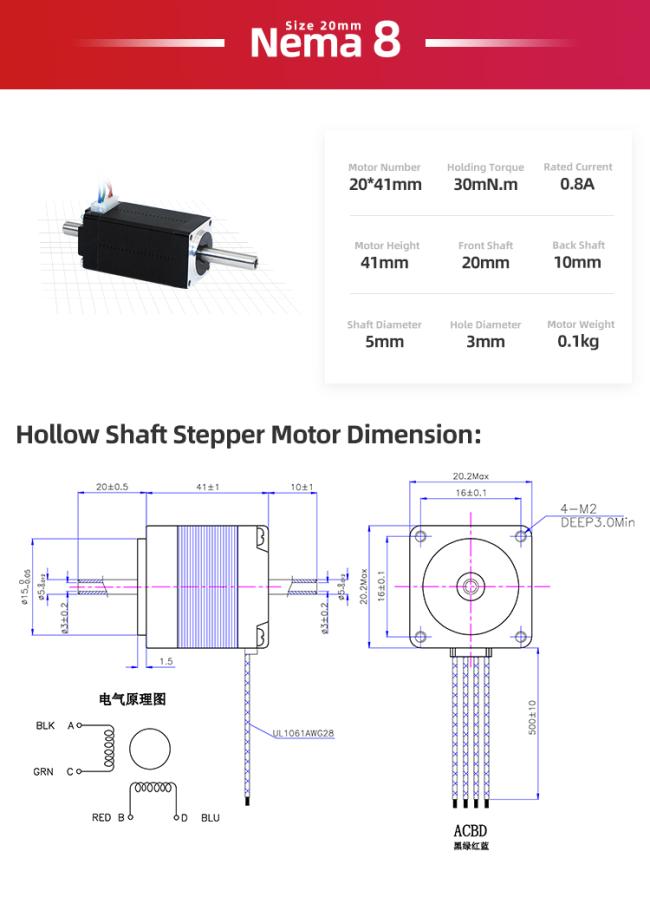

Hybrid Hollow Shaft Micro Nema 8 11 14 17 23 Spining Rotary Actuator Stepping Hollow Shaft Stepper Motor For Glue Machine
Item | Value |
Product Name | Hollow Shaft Stepper Motor |
Brand Name | UMot |
Motor Size | Nema 8/ 11/ 14/ 17/ 23 |
Step Angle | 1.8° |
Phase Number | 2 Phase |
Motor Height | 41/ 32/ 32/ 40/ 51mm |
Holding Torque | 30/ 60/ 170/ 400/ 1100mN.m |
Rated Current | 0.8/ 0.67/ 1.0/ 1.68/ 2.8A |
Front Shaft | 20/ 14/ 14/ 15/ 37mm |
Back Shaft | 10/ 10/ 7/ 10/ 20mm |
Shaft Diameter | 5/ 8/ 8/ 8/ 8mm |
Motor Weight | 0.1/ 0.14/ 0.15/ 0.3/ 0.6kg |
Temperature Rise | 80°C Max(Rated Current, 2 Phase Power) |
Ambient Temperature | -20°C-+120°C |
Insulation Resistance | 100MΩMin, 500VDC |
Radial Runout | 0.02 Max.(450g Load) |
Axial Runout | 0.08 Max.(450g Load) |
