BJJ-20-AHDY Small Mini Caravan Diesel Kerosene Fuel Dispenser
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
FIMETER
Product Description
Product Description
Product Application
Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of fuel dispenser is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion fuel dispenser owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.
Our design is much more compact, layout is more reasonable,increasing the operation efficiency.
|
SPECIFICATIONS FOR GASOLINE FUEL DISPENSER
|
|
|
|
|||
|
Model No.:
|
AHDY
|
Accuracy:
|
±0.2%
|
|||
|
Flow range:
|
20-80L/min
|
Max.pressure:
|
4 Bar
|
|||
|
Voltage:
|
12v/24v/220v/380v
|
Single Range:
|
0.0-99999.9L
|
|||
|
Suction/Lift:
|
25m/25m
|
Accumulative Range:
|
0-99999L
|
|||
|
Total weight:
|
78.5kg
|
Range of Price:
|
0.00-$99.99
|
|||
|
Temperature range:
|
-20°c-50°c
|
Total Amount Range:
|
0-$99999
|
|||
|
Inhalation caliber:
|
25mm
|
Measure Minimum:
|
5L
|
|||
|
Discharge caliber:
|
20mm
|
Size:
|
550*485*720mm
|
|||
|
Medium
|
Gasoline, Petrol, Diesel, Kerosene, Water, Methanol and other liquid.
|
|
|
|||
Main Features
For the reason that our First generation mechanical fuel dispenser has been copied, our company updated the products series with 10 updated points under the price not increased.
1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature: 50℃ Test;
4. With functions of integer and non integer quantitative refueling;
5.The standard of excellent accuracy measuring accuracy can reach 0.2%;
6. Professional All of our fuel dispenser are Anti-Explosion type design;
7. Two way control valves to ensure the precise control of a small amount of fuel;
8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.
Factory Show
Canton Fair
120th Canton Fair
Meet every year of Canton Fair
121th Canton Fair
and Still to be continued......
122th Canton Fair

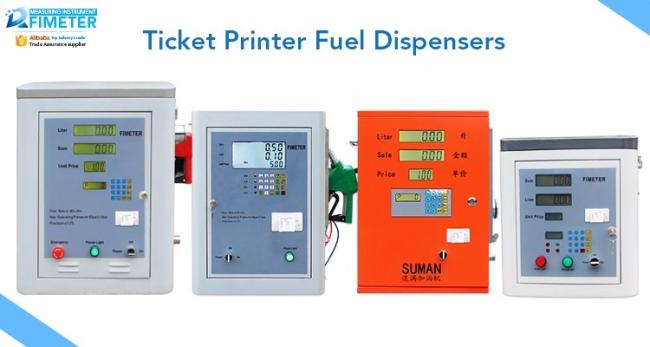

Detailed Images
Gasoline Ticket Printer Fuel Dispensers
20-80 Liter/min;
Accuracy is 0.2%;
Anti-Explosion Type;
Ticket Printer with English words and number;
Also can design for diesel, kerosene, water and other liquid.
Kerosene Ticket Printer Fuel Dispensers
20-65 Liter/min;
Accuracy is 0.2%;
Noiseless Refueling Type;
Ticket Printer with English words and number;
Also can design for diesel, kerosene, water and other liquid.
Accuracy is 0.2%;
Noiseless Refueling Type;
Ticket Printer with English words and number;
Also can design for diesel, kerosene, water and other liquid.
Diesel Ticket Printer Fuel Dispensers
20-80 Liter/min;
Accuracy is 0.3%;
Noiseless Refueling Type;
Ticket Printer with English words and number;
Also can design for diesel, kerosene, water and other liquid.
Water Ticket Printer Fuel Dispensers
20-45 Liter/min;
Accuracy is 0.5%;
Noiseless Refueling Type;
Ticket Printer with English words and number;
Also can design for diesel, kerosene, water and other liquid.
Standard Configuration
1 Set Manual;
5M Inlet Pipe;
5M Output Pipe;
1 Set 11A Automatic Fuel Nozzle.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
61 * 75 * 100 CM
|
|
|
Weight
|
109 KGS
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated. Package also can according to customer special requirements.
|
|
|
By Sea
|
Delivery from Any seaport of China if customer has special requirements
|
|
|
||
|
By Air
|
Departure from Any Airport of China if customer has special requirements
|
|
|
||
|
By Express
|
By any Express of China if customer has special requirements
|
|
|
||
Payment
|
|
T/T
|
EXW
|
100% T/T in advance
|
|
|||
|
|
|
FOB
|
30% T/T in advance, paid the balance before shipment
|
|
|||
|
|
|
CFR
|
30% T/T in advance, paid the balance against copy of B/L
|
|
|||
|
|
|
CIF
|
30% T/T in advance, paid the balance against copy of B/L
|
|
|||
|
|
L/C
|
L/C amount above 10,000 usd, we can accept L/C at sight
|
|
|
|||
|
|
West Union
|
Amount lower than 5000 usd
|
|
|
|||
|
Delivery Time
|
7~10 working days after receiving payment for one container
|
|
|
|
|||
We welcome use Trade Assurance, you'll enjoy:
100% Product quality protection;
100% On-time shipment protection;
100% Payment protection for your covered amount.
