16A/32A Rated Frequency EV Charging Cable with Shielded Copper Insulation and Durable
Price:
$0.05/meters >=10000 meters
MOQ:
10000 meters
Delivery Time:
Negotiable
Brand:
ExactCables
Product Description
Product Description
Specification

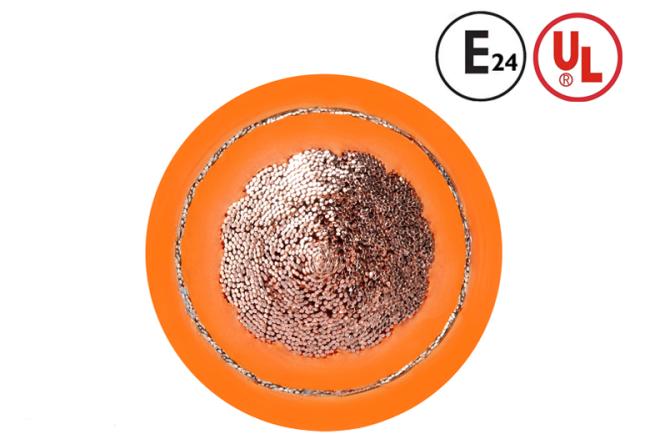

Construction | Features |
1,Conductor | 1,Rated Temperature:-40ºC-+125ºC |
Material: Bare Copper | 2,Rated Voltage:Optional 1000V AC or 1500V AC |
2,Insulation | 3,Aging:158ºC*168h,comply with UL 758 |
Material: XLPE | 4,Dielectric Voltage:3000V AC*1min |
Color:Orange | 5,Deformation Test:121ºC*4h,comply with UL 758 |
3,Shielded | 6,Flame Test:VW-1,comply with UL 758 |
Material:Tinned Copper | 7,Cold Bend Test:-40ºC*4h,comply with UL 758 |
4,Sheath | 8,Environmental Requirements:Compliant with RoHS 2.0 and REACH |
Material: XLPE | 9,Anti-tear Performance:>20N/mm |
Color:Orange | 10,Min Bending Radius:4*OD |
Material: TPU | Environmental Requirements:Compliant with RoHS 2.0 and REACH |
Product Series | Size | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20ºC | Permissible ampacity A (Ref.) | Over diameter mm (Ref.) | |||||
UL 30088 for 1000V | 16AWG | 1.5 | 14.1 | 15 | 5.6 | |||||
15AWG | 1.7 | 11.2 | 20 | 5.7 | ||||||
14AWG | 1.9 | 8.88 | 24 | 5.8 | ||||||
13AWG | 2.1 | 7.02 | 28 | 5.8 | ||||||
12AWG | 2.8 | 5.58 | 34 | 6.7 | ||||||
11AWG | 3.0 | 4.43 | 39 | 6.9 | ||||||
10AWG | 3.3 | 3.51 | 45 | 7.2 | ||||||
9AWG | 3.7 | 2.78 | 53 | 7.6 | ||||||
8AWG | 4.2 | 2.23 | 64 | 8.8 | ||||||
7AWG | 4.8 | 1.77 | 75 | 9.4 | ||||||
6AWG | 5.4 | 1.40 | 85 | 10.0 | ||||||
5AWG | 6.0 | 1.11 | 100 | 12.1 | ||||||
4AWG | 6.6 | 0.882 | 115 | 12.2 | ||||||
3AWG | 7.4 | 0.7 | 135 | 13.0 | ||||||
2AWG | 8.4 | 0.555 | 160 | 13.6 | ||||||
1AWG | 9.4 | 0.44 | 175 | 15.0 | ||||||
The specification, size, structure of above product may be changed due toTechnical progress, similar specifications are available according to customer's requirements | ||||||||||
Product Series | Size | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20ºC | Permissible ampacity A (Ref.) | Over diameter mm (Ref.) | |||||
UL 3820 for 1000V or UL 3886 for 1500V | 16AWG | 1.5 | 14.1 | 15 | 3.4 | |||||
15AWG | 1.7 | 11.2 | 20 | 3.5 | ||||||
14AWG | 1.9 | 8.88 | 24 | 3.6 | ||||||
13AWG | 2.1 | 7.02 | 28 | 3.8 | ||||||
12AWG | 2.8 | 5.58 | 34 | 4.5 | ||||||
11AWG | 3.0 | 4.43 | 39 | 4.7 | ||||||
10AWG | 3.3 | 3.51 | 45 | 5.0 | ||||||
9AWG | 3.7 | 2.78 | 53 | 5.4 | ||||||
8AWG | 4.2 | 2.23 | 64 | 6.6 | ||||||
7AWG | 4.8 | 1.77 | 75 | 7.2 | ||||||
6AWG | 5.4 | 1.40 | 85 | 7.8 | ||||||
5AWG | 6.0 | 1.11 | 100 | 8.4 | ||||||
4AWG | 6.6 | 0.882 | 115 | 9.0 | ||||||
3AWG | 7.4 | 0.7 | 135 | 9.4 | ||||||
2AWG | 8.4 | 0.555 | 160 | 10.8 | ||||||
1AWG | 9.4 | 0.44 | 175 | 12.4 | ||||||
The specification, size, structure of above product may be changed due toTechnical progress, similar specifications are available according to customer's requirements | ||||||||||
