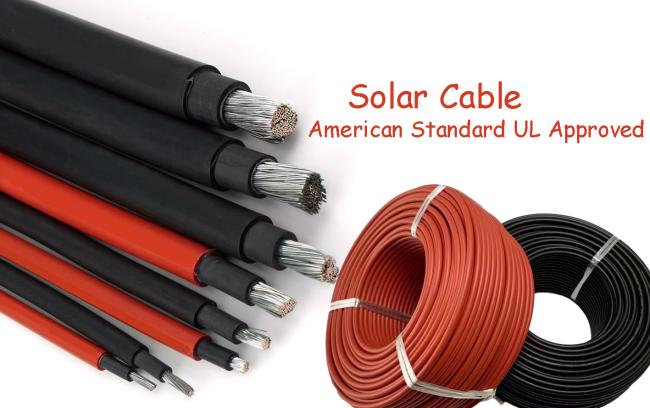

Polyolefin Copolymer Electron-Beamcross-Linked Insulation Power Cable for Solar Energy
Price:
$0.50/meters >=10000 meters
MOQ:
10000 meters
Delivery Time:
Negotiable
Brand:
ExactCables
Product Description
APPLICATION
Flexible cables suitable for PV solar DC current systems.The max allowable DC voltage 1.8 kV(Conductor to conductorsystem without
earth).Used at security level lI location.These cables are allowed to be connected in a multi-structural manner.The cable is
designed for operation at temperature up to 90°ºC.

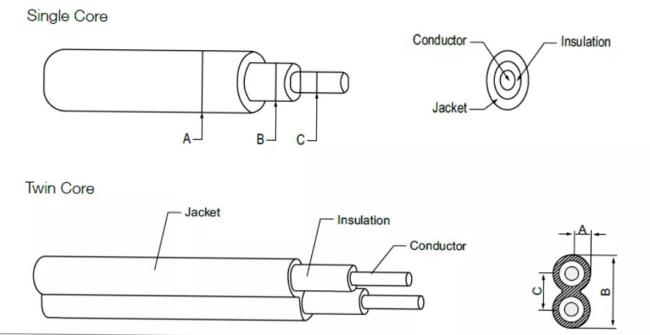

STRUCTURE
Conductor: Tinned copper flexible conductor of Class 5 in 2Pfg1169
Insulation: LSZH electron-beam cross-linked Polyolefin(125ºC)
Sheath: LSZHelectron-beamcross-linked Polyolefin(125°ºC)
Color: red or black
TECHNICAL INDICATORS
Nominalvoltage: U0/U0.6/1KV(AC)1800DC(non-load)
Testvoltage: AC65KV/5min(20°ºC±0.5) or DC15KV/5min(20°±0.5)withoutbreakdown
Ambienttemperature: -40°C~+90°ºC
Conductor maximumtemperature: 120°ºC
Maximum short circuittemperature≤250°C/5S
Expected service life: 25 years
Bending radius: ≥4D
CHARACTERISTICS COMPLIANCE
Fire-resistanceEN60332-1-2
Acid and alkalisolution: EN60811-2-1
Halogen determination: EN50267/EN60684
Weatherresistance/UVresistanceHD605/A1
Compliance certification: ROHSTUV
Executive standard: 2 Pfg1169/08.2007
Flexible cables suitable for PV solar DC current systems.The max allowable DC voltage 1.8 kV(Conductor to conductorsystem without
earth).Used at security level lI location.These cables are allowed to be connected in a multi-structural manner.The cable is
designed for operation at temperature up to 90°ºC.
STRUCTURE
Conductor: Tinned copper flexible conductor of Class 5 in 2Pfg1169
Insulation: LSZH electron-beam cross-linked Polyolefin(125ºC)
Sheath: LSZHelectron-beamcross-linked Polyolefin(125°ºC)
Color: red or black
TECHNICAL INDICATORS
Nominalvoltage: U0/U0.6/1KV(AC)1800DC(non-load)
Testvoltage: AC65KV/5min(20°ºC±0.5) or DC15KV/5min(20°±0.5)withoutbreakdown
Ambienttemperature: -40°C~+90°ºC
Conductor maximumtemperature: 120°ºC
Maximum short circuittemperature≤250°C/5S
Expected service life: 25 years
Bending radius: ≥4D
CHARACTERISTICS COMPLIANCE
Fire-resistanceEN60332-1-2
Acid and alkalisolution: EN60811-2-1
Halogen determination: EN50267/EN60684
Weatherresistance/UVresistanceHD605/A1
Compliance certification: ROHSTUV
Executive standard: 2 Pfg1169/08.2007
No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Sheath thickness | Nominal Overall diameter | Nominal Cable weight | Max.Resistance of conductor at 20ºC | Current Carrying Capacity | |||||||
PV Single core Solar cable | ||||||||||||||
No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) | A | |||||||
1 x 1,5 | 30 x 0,25 | 0,8 | 0,8 | 4.8 | 38 | 13,7 | 30 | |||||||
1 x 2,5 | 50 x 0,25 | 0,85 | 0,9 | 5.4 | 46 | 8,21 | 41 | |||||||
1 x 4 | 56 x 0,30 | 0,85 | 1,0 | 6.1 | 61 | 5,09 | 55 | |||||||
1 x 6 | 84 x 0,30 | 0,9 | 1,1 | 7.0 | 90 | 3,39 | 70 | |||||||
1 x 10 | 80 x 0,40 | 0,9 | 1,2 | 8.2 | 131 | 1,95 | 98 | |||||||
1 x 16 | 128 x 0,40 | 0,9 | 1,2 | 9.3 | 187 | 1,24 | 132 | |||||||
1 x 25 | 200 x 0,40 | 0,9 | 1,2 | 10.7 | 278 | 0,795 | 176 | |||||||
1 x 35 | 280 x 0,40 | 0,9 | 1,2 | 12.4 | 374 | 0,565 | 218 | |||||||
PV Twin core Solar cable | ||||||||||||||
No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) | A | |||||||
2 x 1,5 | 30 x 0,25 | 0,8 | 0,8 | 4.8x9.6 | 76 | 13,7 | 30 | |||||||
2 x 2,5 | 50 x 0,25 | 0,85 | 0,9 | 5.4x10.8 | 92 | 8,21 | 41 | |||||||
2 x 4 | 56 x 0,30 | 0,85 | 1,0 | 6.1x12.2 | 122 | 5,09 | 55 | |||||||
2x 6 | 84 x 0,30 | 0,9 | 1,1 | 7.0x14.0 | 180 | 3,39 | 70 | |||||||
2x 10 | 80 x 0,40 | 0,9 | 1,2 | 8.2x16.4 | 262 | 1,95 | 98 | |||||||
2 x 16 | 128 x 0,40 | 0,9 | 1,2 | 9.3x18.6 | 374 | 1,24 | 132 | |||||||
2 x 25 | 200 x 0,40 | 0,9 | 1,2 | 10.7x21.4 | 556 | 0,795 | 176 | |||||||
2x 35 | 280 x 0,40 | 0,9 | 1,2 | 12.4x24.8 | 748 | 0,565 | 218 | |||||||
