Chip Uwb Pcb Antenna 600MHz-10GHz 9dBi 120x120x1mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Outdoor waterproof directional Antenna UWB antenna PCB antenna 600MHz-10GHz 9dBi 120x120x1
1. Specification
| A. Electrical Characteristics | |||
| Frequency | 600-960MHz | 1710-8500MHz | 8500-10000MHz |
| S.W.R. | <4.0 | <2.5 | <3.0 |
| Antenna Gain | 1.6dBi | 9dBi | 7.6dBi |
| Polarization | Vertical | Vertical | Vertical |
| Horizontal Beamwidth | 95°- 115° | 20°- 360° | 25°- 75° |
| Vertical Beamwidth | 93°- 150° | 50°- 180° | 60°- 90° |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W | 50W |
| B. Material & Mechanical Characteristics | |||
| Connector Type | SMA connector | ||
| Dimension | 120*120*1.0mm | ||
| Weight | 0.035Kg | ||
| C. Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Operation Humidity | ＜95% | ||
2. Antenna - S Parameter Test Data

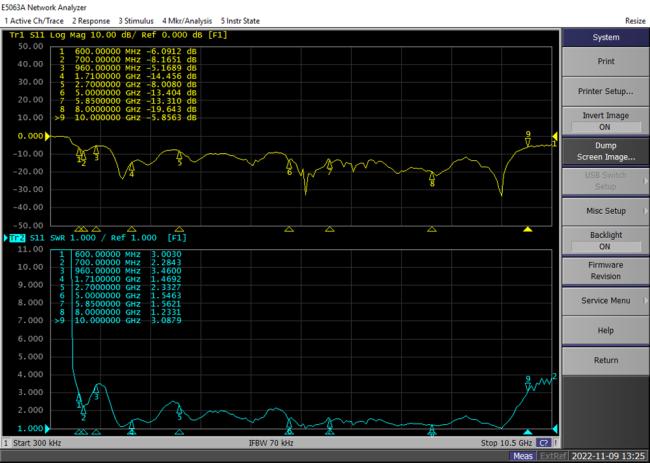

2.1 VSWR
2.2 Total Efficiency & Gain:
| 600-7000MHz | ||||||
| Frequency(MHz) | Gain(dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 600.0 | 0.15 | 49.71 | 3400.0 | 7.40 | 78.16 | |
| 630.0 | 0.18 | 44.32 | 3500.0 | 7.90 | 77.09 | |
| 660.0 | 0.72 | 49.57 | 3600.0 | 7.63 | 80.42 | |
| 690.0 | 0.79 | 54.08 | 3700.0 | 7.40 | 78.48 | |
| 720.0 | 1.17 | 69.59 | 3800.0 | 7.84 | 83.95 | |
| 750.0 | 1.58 | 78.87 | 3900.0 | 8.48 | 84.80 | |
| 780.0 | 1.16 | 71.79 | 4000.0 | 8.02 | 87.32 | |
| 810.0 | 0.92 | 60.78 | 4100.0 | 8.13 | 88.97 | |
| 840.0 | 1.19 | 60.82 | 4200.0 | 8.01 | 88.79 | |
| 870.0 | 0.50 | 57.04 | 4300.0 | 8.00 | 84.22 | |
| 900.0 | 0.37 | 53.04 | 4400.0 | 7.78 | 82.22 | |
| 930.0 | 0.03 | 57.47 | 4500.0 | 7.94 | 82.59 | |
| 960.0 | -0.48 | 51.24 | 4600.0 | 8.10 | 79.53 | |
| 1000.0 | 0.55 | 60.06 | 4700.0 | 8.20 | 76.46 | |
| 1100.0 | -0.31 | 57.52 | 4800.0 | 8.21 | 77.22 | |
| 1200.0 | 1.14 | 57.10 | 4900.0 | 8.58 | 83.48 | |
| 1300.0 | 2.09 | 68.45 | 5000.0 | 8.53 | 82.04 | |
| 1400.0 | 3.80 | 76.21 | 5100.0 | 8.77 | 85.42 | |
| 1500.0 | 4.28 | 81.56 | 5200.0 | 8.28 | 84.01 | |
| 1600.0 | 4.49 | 79.20 | 5300.0 | 8.69 | 87.05 | |
| 1700.0 | 4.12 | 76.43 | 5400.0 | 9.07 | 86.73 | |
| 1800.0 | 4.25 | 78.89 | 5500.0 | 8.65 | 84.92 | |
| 1900.0 | 4.26 | 75.25 | 5600.0 | 8.32 | 82.68 | |
| 2000.0 | 4.89 | 78.99 | 5700.0 | 7.99 | 81.88 | |
| 2100.0 | 5.01 | 80.42 | 5800.0 | 7.93 | 78.43 | |
| 2200.0 | 5.64 | 81.72 | 5900.0 | 7.58 | 76.62 | |
| 2300.0 | 5.53 | 78.89 | 6000.0 | 7.07 | 75.29 | |
| 2400.0 | 5.86 | 71.18 | 6100.0 | 6.49 | 71.49 | |
| 2500.0 | 5.84 | 69.17 | 6200.0 | 6.70 | 73.13 | |
| 2600.0 | 6.84 | 75.93 | 6300.0 | 6.76 | 73.18 | |
| 2700.0 | 7.12 | 80.92 | 6400.0 | 6.11 | 68.60 | |
| 2800.0 | 7.40 | 84.96 | 6500.0 | 6.00 | 71.08 | |
| 2900.0 | 7.40 | 87.84 | 6600.0 | 5.42 | 67.12 | |
| 3000.0 | 7.48 | 86.40 | 6700.0 | 5.86 | 69.74 | |
| 3100.0 | 7.50 | 84.21 | 6800.0 | 5.70 | 67.23 | |
| 3200.0 | 7.43 | 80.46 | 6900.0 | 5.56 | 72.95 | |
| 3300.0 | 6.93 | 74.90 | 7000.0 | 5.57 | 69.93 | |
| 7100-10000MHz | ||||||
| Frequency(MHz) | Gain(dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 7100.0 | 5.25 | 63.23 | ||||
| 7200.0 | 5.56 | 64.31 | ||||
| 7300.0 | 5.71 | 62.45 | ||||
| 7400.0 | 6.43 | 66.84 | ||||
| 7500.0 | 5.81 | 59.10 | ||||
| 7600.0 | 5.33 | 56.39 | ||||
| 7700.0 | 4.99 | 53.14 | ||||
| 7800.0 | 4.95 | 56.46 | ||||
| 7900.0 | 5.16 | 55.72 | ||||
| 8000.0 | 4.62 | 51.67 | ||||
| 8100.0 | 5.33 | 50.17 | ||||
| 8200.0 | 6.04 | 51.34 | ||||
| 8300.0 | 6.04 | 57.25 | ||||
| 8400.0 | 6.32 | 60.62 | ||||
| 8600.0 | 7.13 | 65.62 | ||||
| 8700.0 | 7.59 | 70.96 | ||||
| 8800.0 | 7.66 | 74.35 | ||||
| 8900.0 | 7.72 | 78.68 | ||||
| 9000.0 | 6.71 | 80.12 | ||||
| 9100.0 | 6.60 | 81.95 | ||||
| 9200.0 | 6.09 | 78.94 | ||||
| 9300.0 | 6.08 | 81.56 | ||||
| 9400.0 | 5.64 | 83.61 | ||||
| 9500.0 | 5.11 | 82.17 | ||||
| 9600.0 | 5.76 | 84.16 | ||||
| 9700.0 | 5.32 | 79.25 | ||||
| 9800.0 | 5.54 | 79.04 | ||||
| 9900.0 | 4.84 | 63.94 | ||||
| 10000.0 | 4.54 | 64.21 | ||||

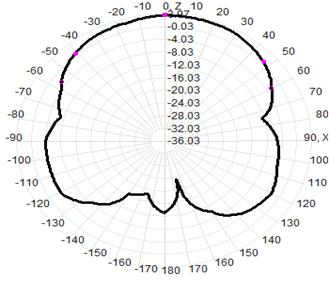

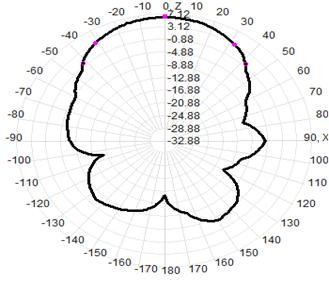

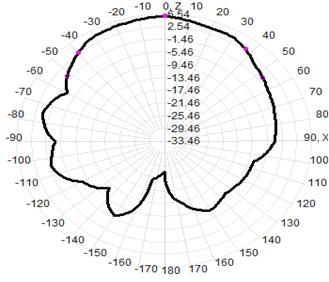

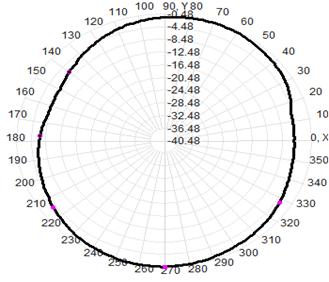

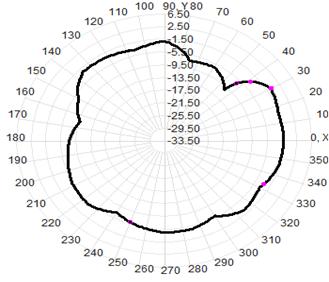

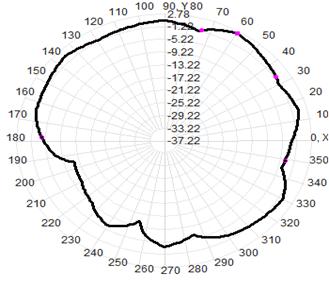

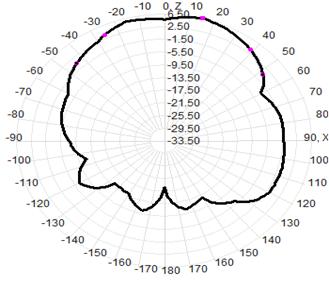

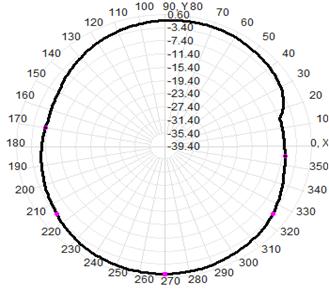

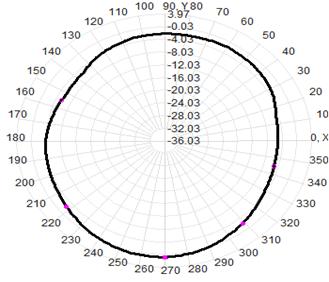

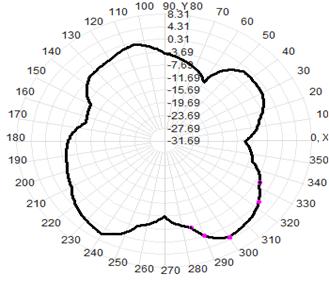

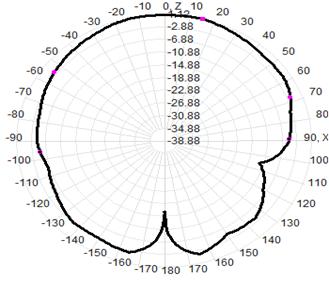

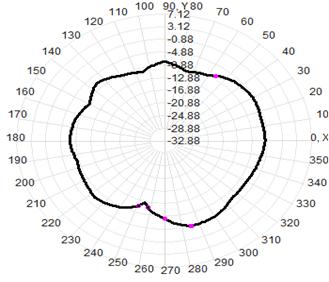

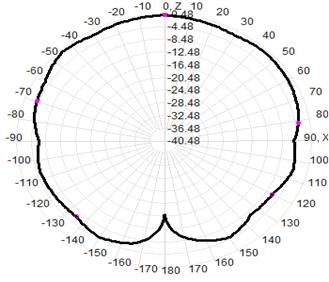

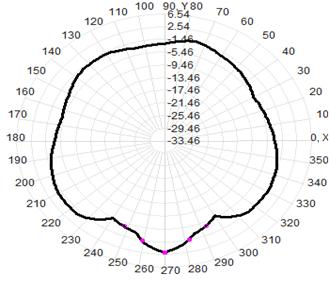

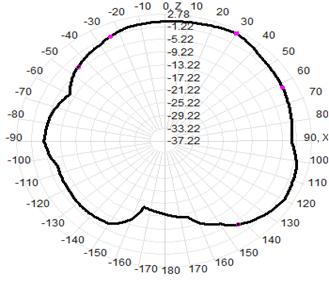

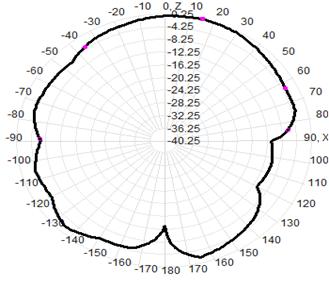

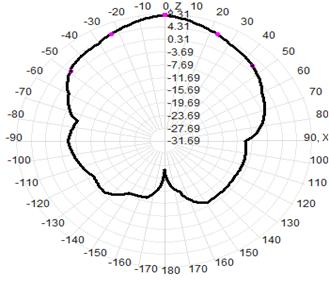

2.3 Radiation Pattern
| 3D | Horizontal | Vertical | |
| 600MHz |  |
 |
 |
| 780MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | Horizontal | Vertical | |
| 1700MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
| 3D | Horizontal | Vertical | |
| 6200MHz |  |
 |
 |
| 8500MHz |  |
 |
 |
| 10000MHz |  |
 |
 |
