Outdoor Uwb Pcb Antenna Design Flat Panel Antenna 3700-4200MHz 18dBi N Connector 260x260x35mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 18 dBi N connector 260x260x35
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 18dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 17-19° |
| Vertical Beamwidth | 15-19° |
| F/B | >31dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 260*260*35mm |
| Radome material | ABS |
| Weight | 0.97Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity |
36.9m/s
|
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 3700 | 17.076 |
| 3750 | 17.297 |
| 3800 | 17.646 |
| 3850 | 17.63 |
| 3900 | 18.095 |
| 3950 | 18.289 |
| 4000 | 18.696 |
| 4050 | 18.517 |
| 4100 | 18.773 |
| 4150 | 18.804 |
| 4200 | 18.979 |

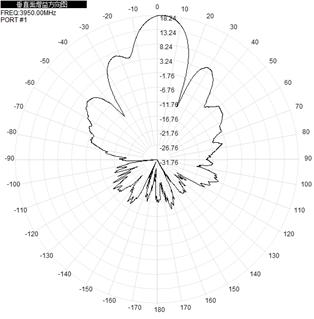

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3700MHz |  |
 |
 |
| 3950MHz |  |
 |
 |
| 4200MHz |  |
 |
 |
