Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 900-930MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.5 |
| Gain | 2dBi |
| Efficiency | ≈85% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 70°±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ16*200mm |
| Weight | 0.09Kg |
| Radome Materials | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

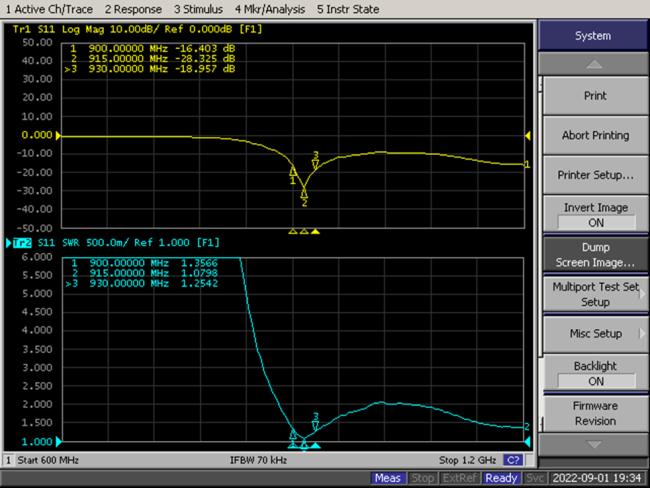

2.1 VSWR

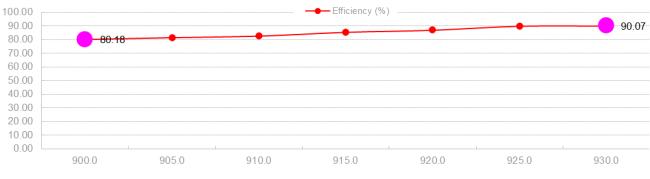

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 900.0 | 905.0 | 910.0 | 915.0 | 920.0 | 925.0 | 930.0 |
| Gain (dBi) | 1.84 | 2.01 | 2.10 | 2.23 | 2.24 | 2.34 | 2.34 |
| Efficiency (%) | 80.18 | 81.53 | 82.65 | 85.44 | 86.96 | 89.95 | 90.07 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 900MHz |  |
 |
 |
| 915MHz |  |
 |
 |
| 930MHz |  |
 |
 |
