Fiberglass 5 Dbi Omnidirectional Antenna 700-6000MHz
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 700-960MHz | 1710-6000MHz |
| S.W.R. | <2.0 | <2.0 |
| Efficiency | ≈70% | ≈80% |
| Antenna Gain | 3dBi | 5dBi |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 27-32° | 27-80° |
| Impedance | 50 Ohm | 50 Ohm |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ95*142mm | |
| Weight | 0.375Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | DC Ground | |
2. Antenna - S Parameter Test Data

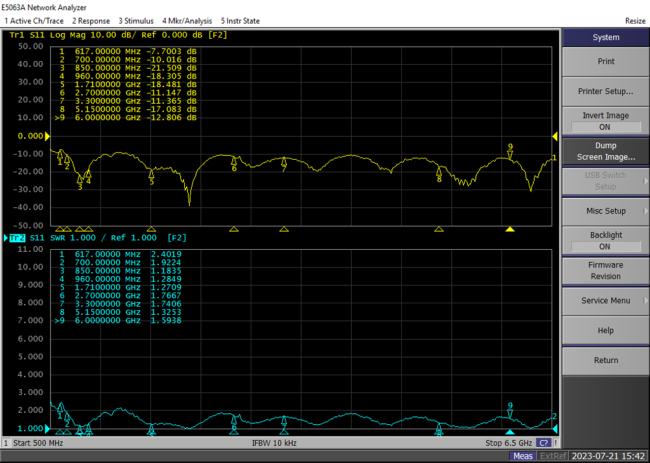

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency (MHz) | Gain (dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 617.0 | 2.7 | 54.8 | 3100.0 | 4.9 | 72.8 | |
| 618.0 | 2.7 | 54.5 | 3200.0 | 4.9 | 74.5 | |
| 619.0 | 2.6 | 53.8 | 3300.0 | 4.2 | 76.3 | |
| 620.0 | 2.6 | 53.1 | 3400.0 | 4.2 | 79.2 | |
| 630.0 | 3.1 | 56.8 | 3500.0 | 3.4 | 73.5 | |
| 660.0 | 2.5 | 57.0 | 3600.0 | 4.1 | 83.7 | |
| 690.0 | 3.4 | 61.7 | 3700.0 | 4.8 | 81.2 | |
| 720.0 | 3.3 | 71.7 | 3800.0 | 4.9 | 85.7 | |
| 750.0 | 2.8 | 79.3 | 3900.0 | 5.0 | 84.5 | |
| 780.0 | 2.9 | 83.7 | 4000.0 | 5.0 | 88.0 | |
| 810.0 | 3.0 | 83.9 | 4100.0 | 4.8 | 82.8 | |
| 840.0 | 2.9 | 76.5 | 4200.0 | 4.7 | 84.6 | |
| 870.0 | 3.0 | 71.3 | 4300.0 | 4.6 | 86.7 | |
| 900.0 | 3.2 | 70.6 | 4400.0 | 4.6 | 85.5 | |
| 930.0 | 3.3 | 77.0 | 4500.0 | 4.8 | 85.4 | |
| 960.0 | 3.2 | 80.2 | 4600.0 | 4.7 | 88.8 | |
| 1700.0 | 3.3 | 73.5 | 4700.0 | 4.1 | 86.6 | |
| 1800.0 | 3.0 | 68.2 | 4800.0 | 4.0 | 91.7 | |
| 1900.0 | 3.6 | 73.3 | 4900.0 | 3.3 | 83.8 | |
| 2000.0 | 4.3 | 79.5 | 5000.0 | 3.5 | 82.7 | |
| 2100.0 | 4.1 | 81.6 | 5100.0 | 3.4 | 79.4 | |
| 2200.0 | 3.9 | 79.5 | 5200.0 | 2.9 | 77.0 | |
| 2300.0 | 3.2 | 76.7 | 5300.0 | 4.3 | 83.3 | |
| 2400.0 | 3.1 | 80.2 | 5400.0 | 4.0 | 75.8 | |
| 2500.0 | 3.3 | 77.9 | 5500.0 | 4.5 | 77.2 | |
| 2600.0 | 3.8 | 71.0 | 5600.0 | 4.5 | 75.5 | |
| 2700.0 | 3.8 | 67.1 | 5700.0 | 4.8 | 79.0 | |
| 2800.0 | 4.2 | 73.3 | 5800.0 | 4.7 | 78.9 | |
| 2900.0 | 3.8 | 75.1 | 5900.0 | 4.8 | 82.6 | |
| 3000.0 | 4.6 | 72.3 | 6000.0 | 4.7 | 89.2 | |

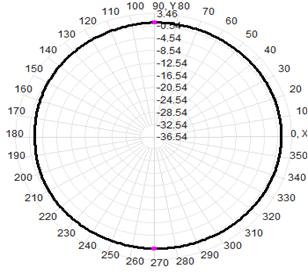

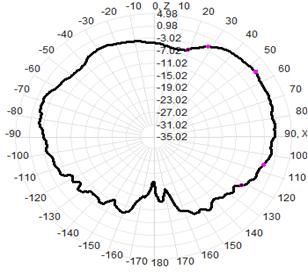

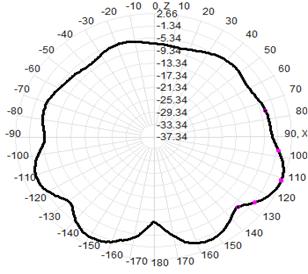

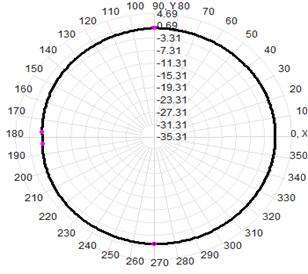

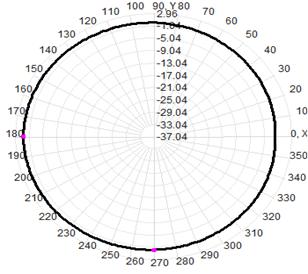

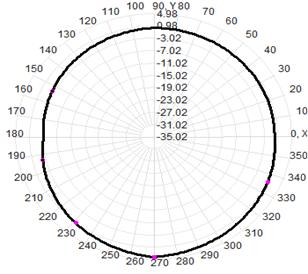

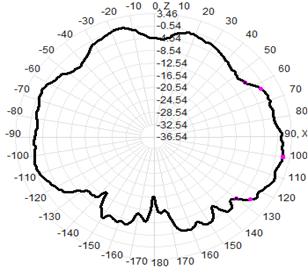

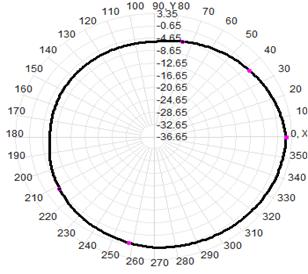

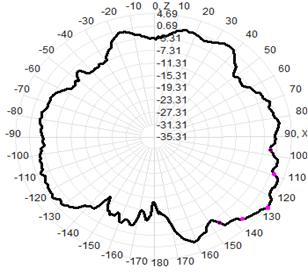

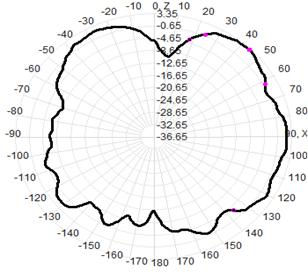

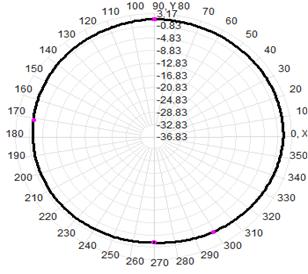

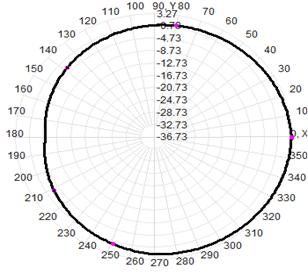

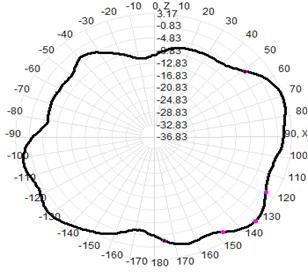

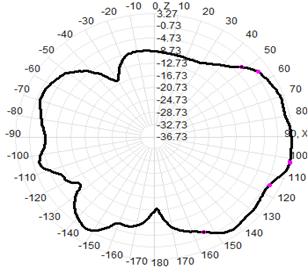

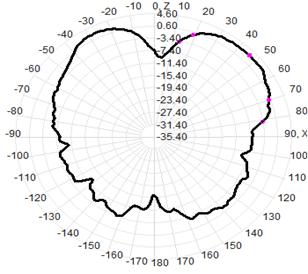

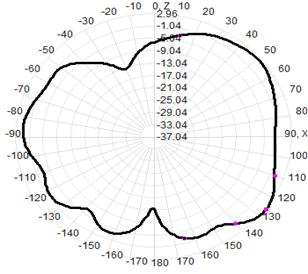

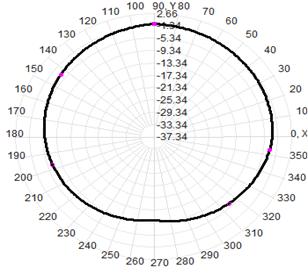

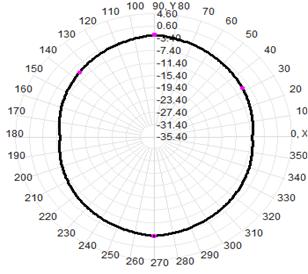

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 617MHz |  |
 |
 |
| 810MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 3000MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 4000MHz |  |
 |
 |
| 5000MHz |  |
 |
 |
| 6000MHz |  |
 |
 |
