Fiberglass Outdoor Omnidirectional Antenna 5G 600-6000MHz 3.5-6dB 20x300
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 617-960MHz | 1710-6000MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <3.0 | <3.0 |
| Gain | 3.5dBi | 6dBi |
| Efficiency | ≈58% | ≈71% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 56°@800MHz | 35°@1980MHz |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ20*300mm | |
| Weight | 0.134Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data

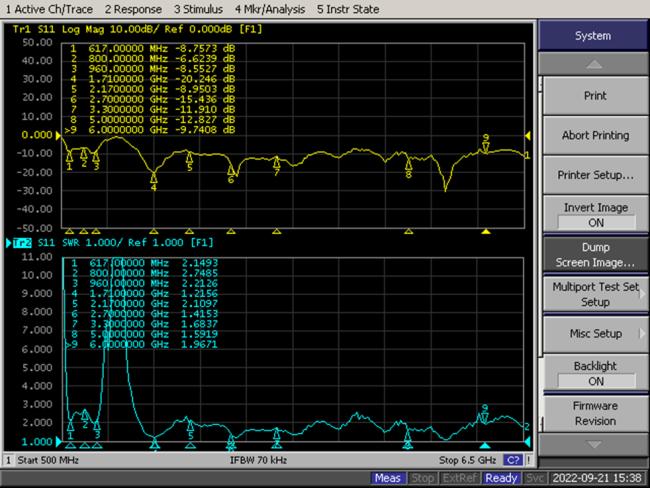

2.1 VSWR

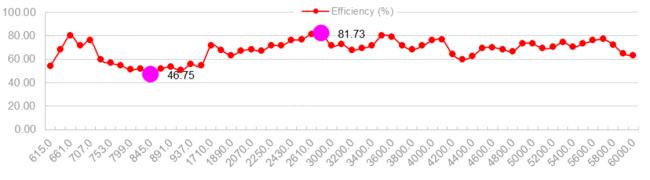

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 615 | 638 | 661 | 684 | 707 | 730 | 753 | 776 | 799 | 822 | 845 | 868 | 891 | 914 | 937 | 960 |
| Gain (dBi) | 0.02 | 1.22 | 2.02 | 1.78 | 2.07 | 1.09 | 1.07 | 1.17 | 1.05 | 1.35 | 1.34 | 2.04 | 2.21 | 2.28 | 2.99 | 3.54 |
| Efficiency (%) | 54.38 | 68.07 | 80.29 | 71.40 | 76.10 | 59.73 | 56.78 | 54.89 | 51.16 | 51.85 | 46.75 | 52.03 | 53.60 | 50.56 | 55.97 | 54.62 |
| Frequency(MHz) | 1710 | 1800 | 1890 | 1980 | 2070 | 2160 | 2250 | 2340 | 2430 | 2520 | 2610 | 2700 |
| Gain (dBi) | 4.43 | 3.69 | 3.01 | 2.62 | 2.98 | 2.96 | 3.46 | 3.27 | 3.53 | 3.79 | 3.86 | 4.00 |
| Efficiency (%) | 71.85 | 67.94 | 63.35 | 67.31 | 68.53 | 67.02 | 71.95 | 71.63 | 76.17 | 76.95 | 81.57 | 81.73 |
| Frequency(MHz) | 3000 | 3100 | 3200 | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 | 4100 | 4200 | 4300 | 4400 | 4500 |
| Gain (dBi) | 3.13 | 2.62 | 2.82 | 3.45 | 4.05 | 4.97 | 4.88 | 4.39 | 4.15 | 4.23 | 4.75 | 5.16 | 4.47 | 4.99 | 5.11 | 5.54 |
| Efficiency (%) | 71.44 | 72.92 | 67.88 | 69.56 | 71.94 | 80.32 | 79.11 | 71.89 | 68.36 | 71.43 | 76.04 | 76.65 | 64.20 | 59.83 | 62.70 | 69.64 |
| Frequency(MHz) | 4600 | 4700 | 4800 | 4900 | 5000 | 5100 | 5200 | 5300 | 5400 | 5500 | 5600 | 5700 | 5800 | 5900 | 6000 |
| Gain (dBi) | 5.52 | 5.42 | 5.01 | 4.77 | 5.68 | 6.01 | 5.33 | 5.45 | 4.60 | 4.67 | 4.88 | 5.10 | 4.98 | 4.53 | 4.60 |
| Efficiency (%) | 70.21 | 68.54 | 66.84 | 73.62 | 73.19 | 69.21 | 70.30 | 74.63 | 70.50 | 73.28 | 75.93 | 77.20 | 72.41 | 64.81 | 63.33 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 615MHz |  |
 |
 |
| 800MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |
 |
 |
| 3500MHz |  |
 |
 |
| 6000MHz |  |
 |
 |
