2.4 Ghz Omnidirectional Outdoor Antenna Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 200x300mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 200x300mm
1. Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2. Antenna - S Parameter Test Data

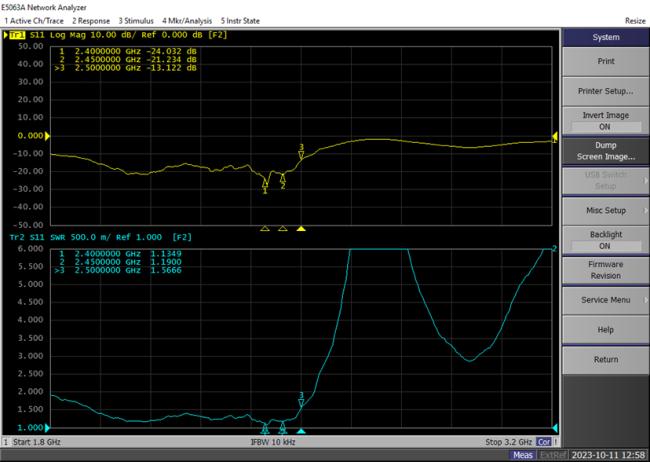

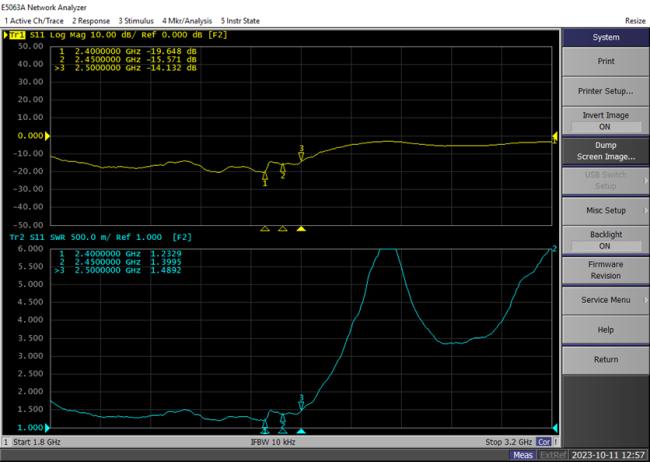

2.1 VSWR
Port1
Port2
Port3
Port4
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||||
| Frequency(MHz) | Gain(dBi) | Efficiency(%) | Frequency(MHz) | Gain(dBi) | Efficiency(%) | |
| 2400 | 8.3 | 89.5 | 2400 | 7.8 | 84.8 | |
| 2410 | 7.5 | 81.5 | 2410 | 7.1 | 78.3 | |
| 2420 | 8.1 | 87.0 | 2420 | 7.7 | 83.3 | |
| 2430 | 8.4 | 90.8 | 2430 | 8.1 | 89.1 | |
| 2440 | 8.5 | 91.1 | 2440 | 8.1 | 87.9 | |
| 2450 | 8.7 | 93.0 | 2450 | 8.1 | 88.6 | |
| 2460 | 8.7 | 94.9 | 2460 | 8.2 | 91.1 | |
| 2470 | 8.8 | 96.1 | 2470 | 8.6 | 94.7 | |
| 2480 | 9.0 | 94.8 | 2480 | 8.7 | 93.8 | |
| 2490 | 8.9 | 91.2 | 2490 | 8.7 | 90.0 | |
| 2500 | 9.0 | 92.4 | 2500 | 8.7 | 89.7 | |
| Port 3 | Port 4 | |||||
| Frequency(MHz) | Gain(dBi) | Efficiency(%) | Frequency(MHz) | Gain(dBi) | Efficiency(%) | |
| 5150 | 6.9 | 47.9 | 5150 | 4.6 | 33.1 | |
| 5200 | 7.6 | 51.8 | 5200 | 6.7 | 41.7 | |
| 5250 | 8.5 | 55.3 | 5250 | 7.9 | 50.6 | |
| 5300 | 9.3 | 63.3 | 5300 | 9.1 | 62.5 | |
| 5350 | 9.9 | 73.0 | 5350 | 9.5 | 68.7 | |
| 5400 | 10.0 | 73.3 | 5400 | 9.6 | 68.2 | |
| 5450 | 10.3 | 78.5 | 5450 | 9.9 | 72.9 | |
| 5500 | 10.1 | 83.1 | 5500 | 10.1 | 79.2 | |
| 5550 | 9.3 | 85.7 | 5550 | 9.6 | 83.1 | |
| 5600 | 8.4 | 83.4 | 5600 | 9.0 | 83.4 | |
| 5650 | 7.5 | 79.3 | 5650 | 8.9 | 81.4 | |
| 5700 | 7.2 | 74.2 | 5700 | 9.4 | 78.4 | |
| 5750 | 8.5 | 78.7 | 5750 | 9.7 | 79.1 | |
| 5800 | 8.7 | 74.4 | 5800 | 9.8 | 80.3 | |
| 5850 | 8.4 | 71.5 | 5850 | 9.2 | 71.2 | |

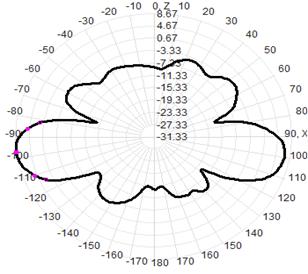

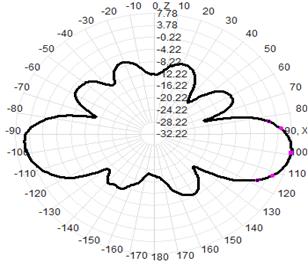

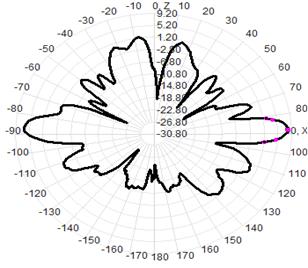

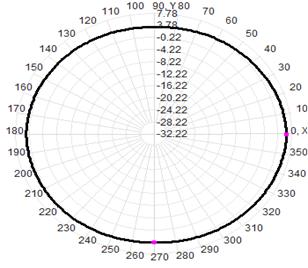

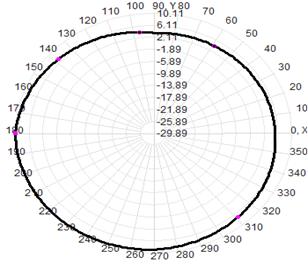

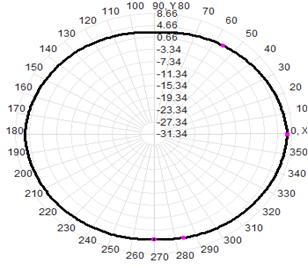

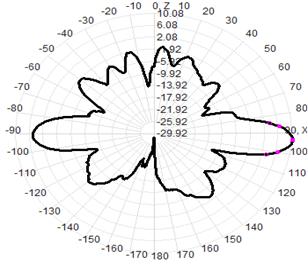

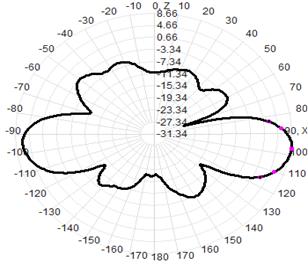

2.3 Radiation Pattern
| Port1 | 3D | 2D-Horizontal | 2D-Vertical |

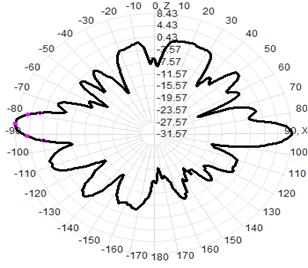

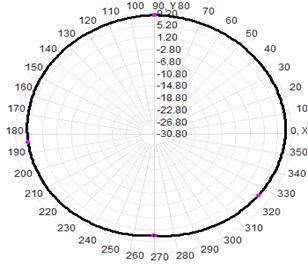

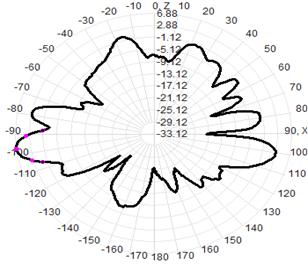

| 2400MHz |  |
 |
 |

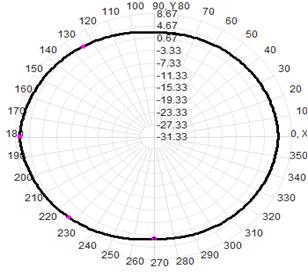

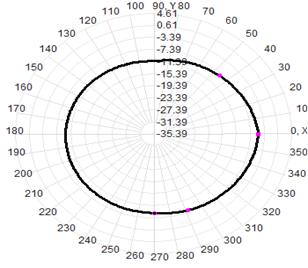

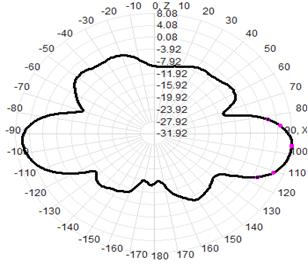

| 2450MHz |  |
 |
 |

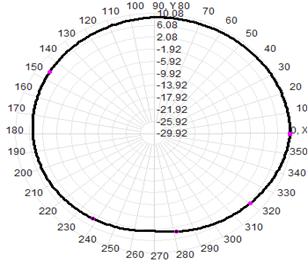

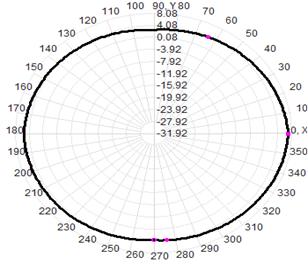

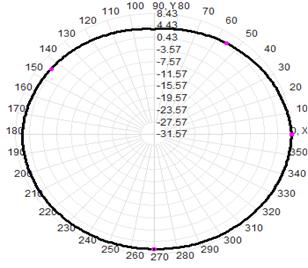

| 2500MHz |  |
 |
 |
| Port2 | 3D | 2D-Horizontal | 2D-Vertical |

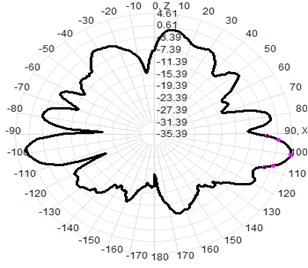

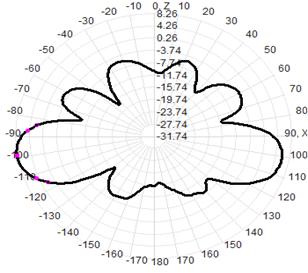

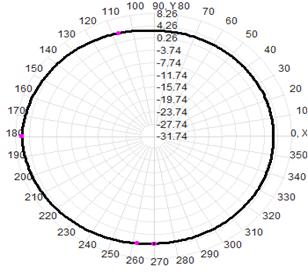

| 2400MHz |  |
 |
 |

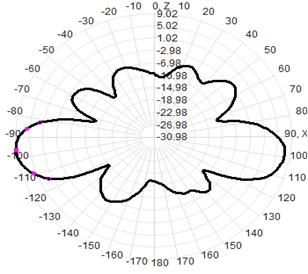

| 2450MHz |  |
 |
 |

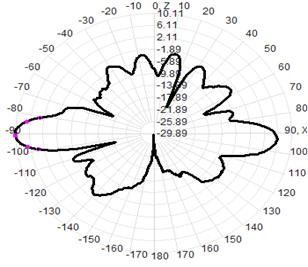

| 2500MHz |  |
 |
 |
| Port3 | 3D | 2D-Horizontal | 2D-Vertical |

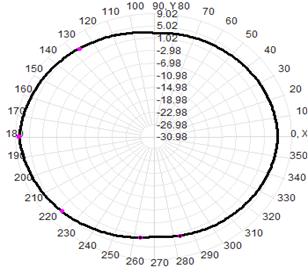

| 5150MHz |  |
 |
 |

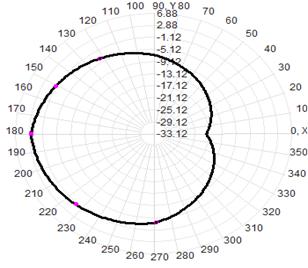

| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
| Port4 | 3D | 2D-Horizontal | 2D-Vertical |
| 5150MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
