868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 824-894MHz Antenna 868MHZ Antenna 2dBi 20x250
1. Specification
| A. Electrical Characteristics | |
| Frequency | 824-894MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2 |
| Gain | 2dBi |
| Efficiency | ≈76% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 83-93° |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ20*250mm |
| Weight | 0.28Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

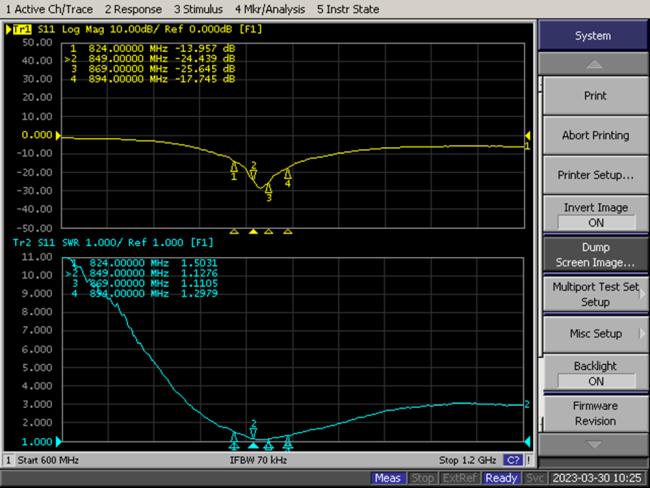

2.1 VSWR

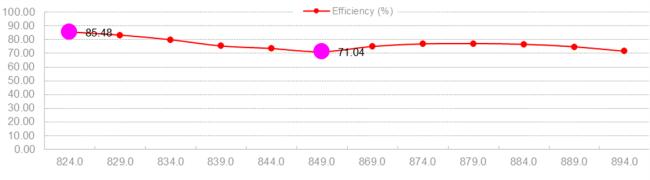

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 824.0 | 829.0 | 834.0 | 839.0 | 844.0 | 849.0 |
| Gain (dBi) | 1.88 | 1.73 | 1.55 | 1.33 | 1.24 | 1.14 |
| Efficiency (%) | 85.48 | 83.22 | 79.87 | 75.30 | 73.43 | 71.04 |
| Frequency(MHz) | 869.0 | 874.0 | 879.0 | 884.0 | 889.0 | 894.0 |
| Gain (dBi) | 1.68 | 1.85 | 1.91 | 1.92 | 1.85 | 1.72 |
| Efficiency (%) | 74.95 | 76.83 | 77.04 | 76.49 | 74.71 | 71.43 |

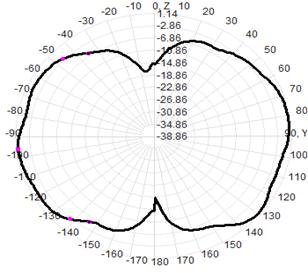

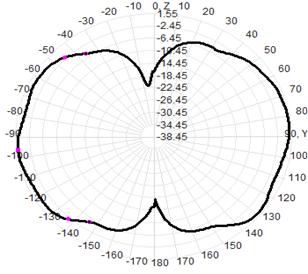

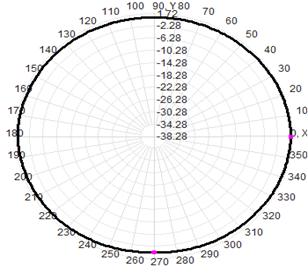

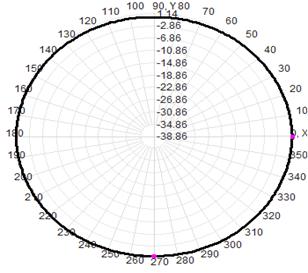

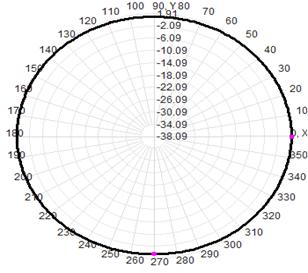

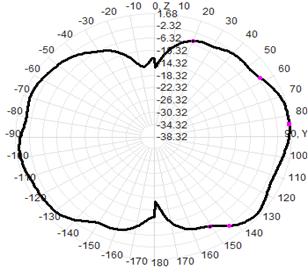

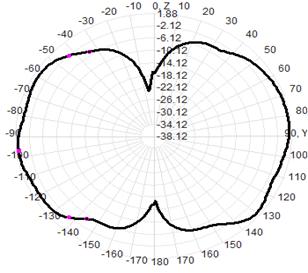

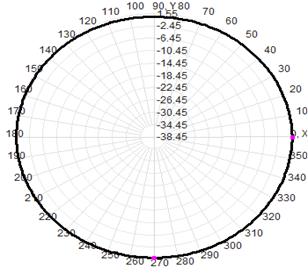

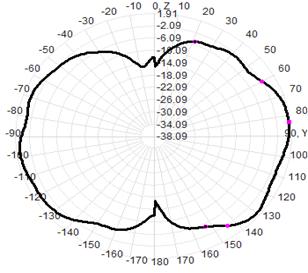

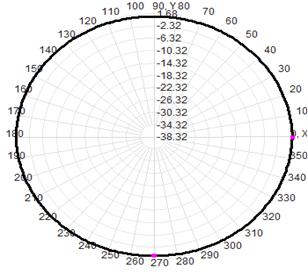

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 824MHz |  |
 |
 |
| 834MHz |  |
 |
 |
| 849MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 869MHz |  |
 |
 |
| 879MHz |  |
 |
 |
| 894MHz |  |
 |
 |
