High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Indoor Antenna External Antenna Rubber Duck Antenna Multi Band 4G 5G Antenna 600-6000MHz 4dBi 10x135
1. Specification
| A. Electrical Characteristics | |
| Frequency | 617-960MHZ, 1575-2690MHZ, 3300-6000MHz |
| S.W.R. | <= 3.0 |
| Antenna Gain |
2.0dBi @ 617-960MHZ 2.0dBi @ 1575-2690MHZ 2.5dBi @ 3300-6000MHZ |
| Efficiency | ≈65% |
| Polarization | Linear |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA Plug |
| Dimension | 10*135.6mm |
| Weight | 0.01Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

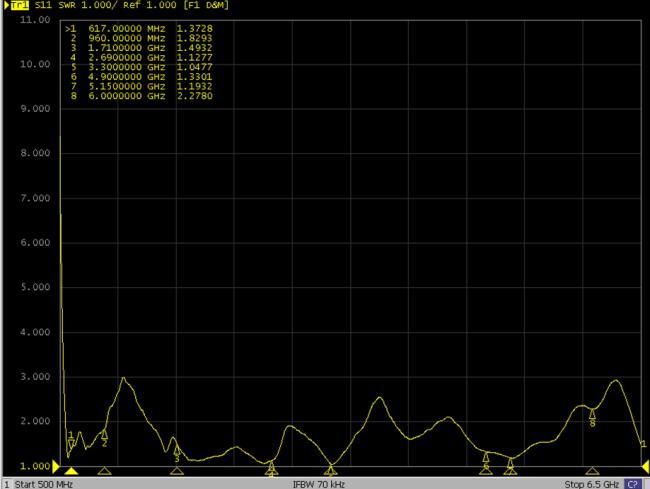

2.1 VSWR
2.2 Total Efficiency & Gain

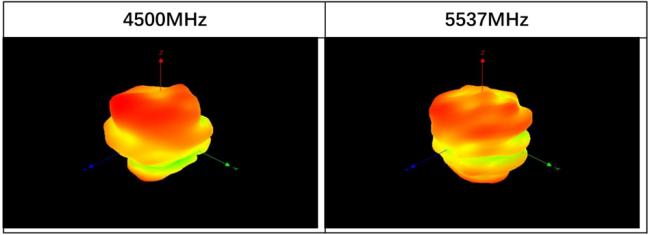

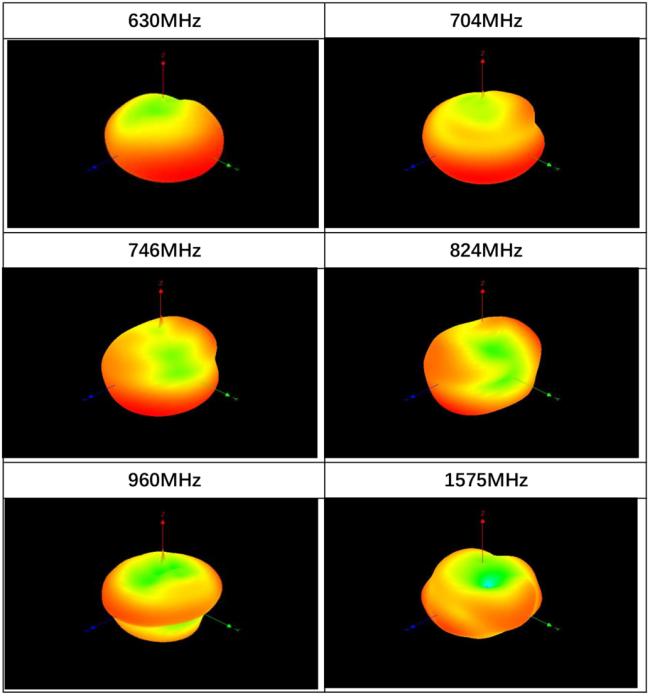

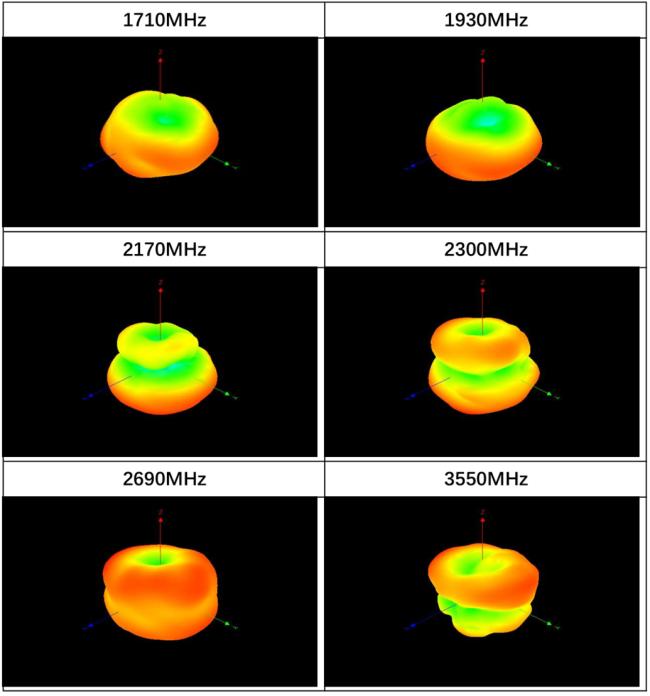

2.3 Radiation Pattern
