High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
Indoor Antenna External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 340-370MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 1.5dBi |
| Efficiency | ≈70% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 44-84° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | TNC connector |
| Dimension | Φ20*800mm |
| Weight | 0.278Kg |
| Radome Materials | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

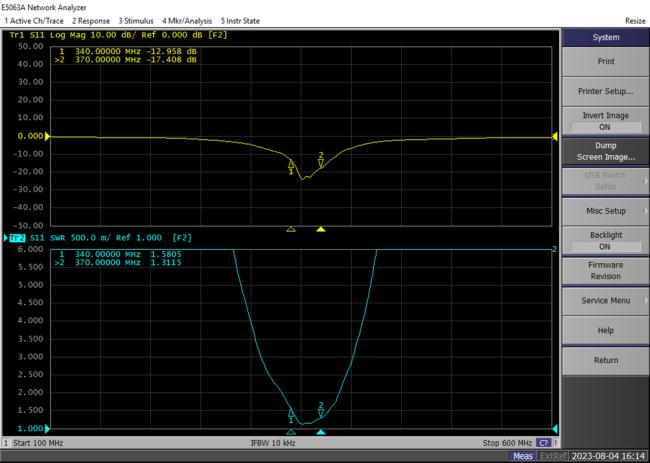

2.1 VSWR

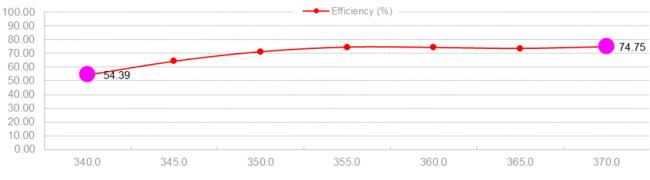

2.2 Total Efficiency & Gain
| Frequency(MHz) | 340.0 | 345.0 | 350.0 | 355.0 | 360.0 | 365.0 | 370.0 |
| Gain (dBi) | 1.42 | 1.69 | 1.51 | 1.40 | 1.28 | 1.20 | 1.17 |
| Efficiency (%) | 54.39 | 64.33 | 71.20 | 74.51 | 74.25 | 73.59 | 74.75 |

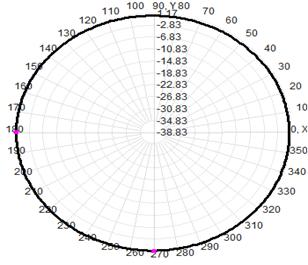

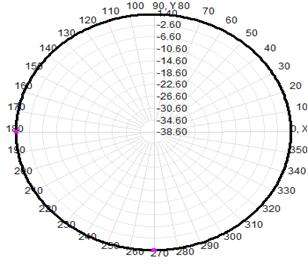

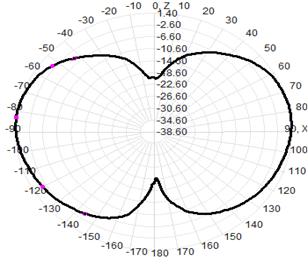

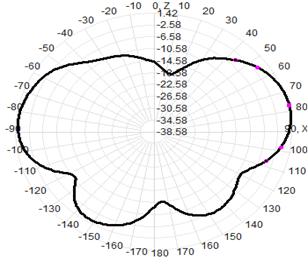

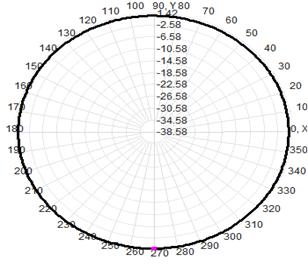

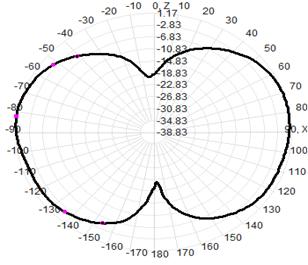

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 340MHz |  |
 |
 |
| 355MHz |  |
 |
 |
| 370MHz |  |
 |
 |
