RoHs Flat Panel RFID Outdoor Directional Antenna 902-928 MHz 9dBi 290x205x40
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 902-928MHz |
| S.W.R. | <1.5 |
| Antenna Gain | 9dBi |
| Polarization | DHCP |
| Horizontal Beamwidth | 75-79° |
| Vertical Beamwidth | 60-63° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 290*205*40mm |
| Radome material | ABS |
| Weight | 1.25Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

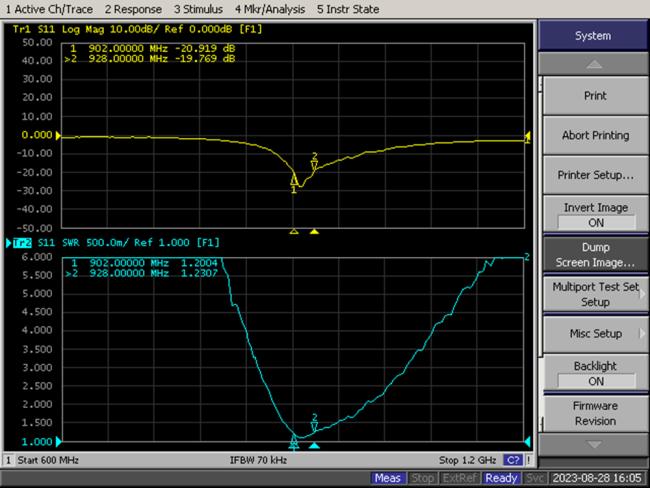

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 900 | 7.9 |
| 902 | 8.0 |
| 904 | 8.2 |
| 906 | 8.3 |
| 908 | 8.5 |
| 910 | 8.6 |
| 912 | 8.6 |
| 914 | 8.7 |
| 916 | 8.7 |
| 918 | 8.8 |
| 920 | 8.8 |
| 922 | 8.8 |
| 924 | 8.7 |
| 926 | 8.8 |
| 928 | 8.9 |
| 930 | 9.0 |

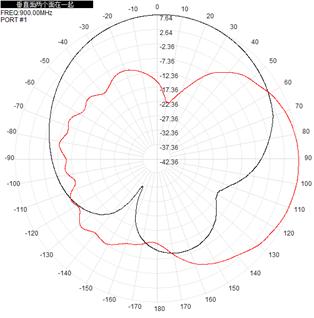

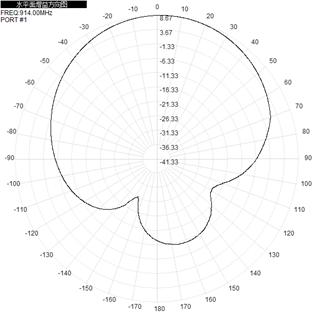

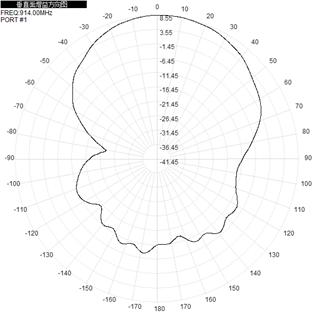

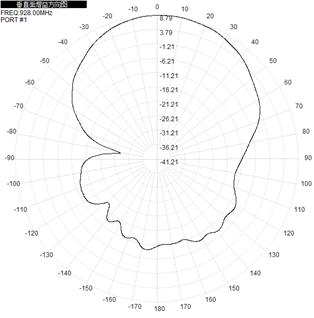

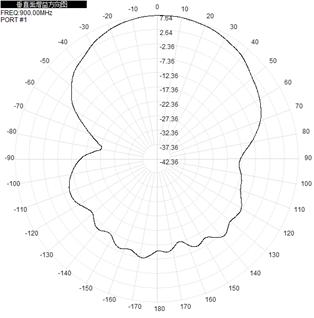

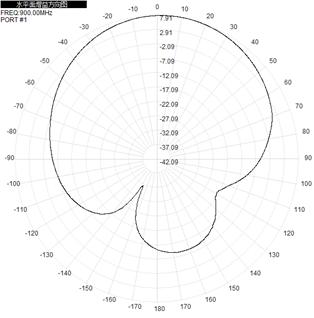

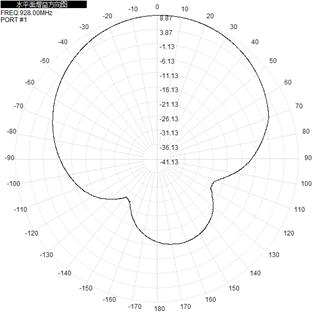

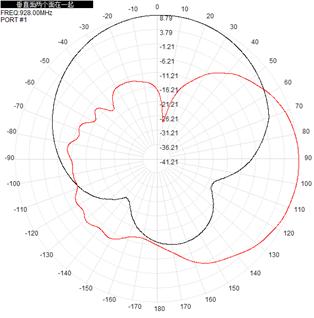

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 902MHz |  |
 |
 |
| 915MHz |  |
 |
 |
| 928MHz |  |
 |
 |
