Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 902-928MHz |
| S.W.R. | <1.5 |
| Antenna Gain | 9dBi |
| Polarization | DHCP |
| Horizontal Beamwidth | 66-68° |
| Vertical Beamwidth | 63-65° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 260*260*35mm |
| Radome material | ABS |
| Weight | 1.235Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

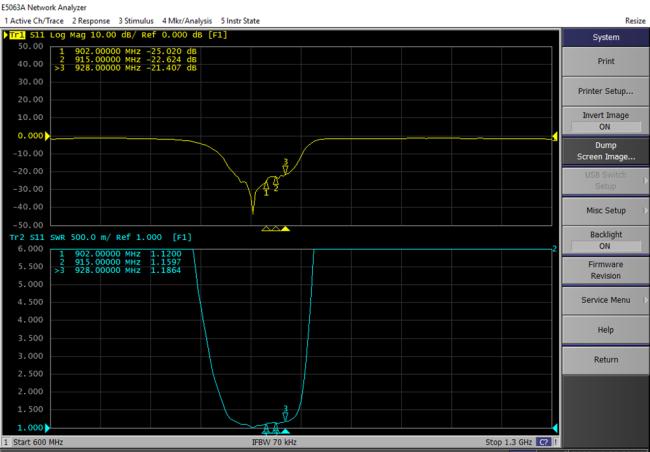

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 900 | 9.3 |
| 905 | 9.2 |
| 910 | 9.1 |
| 915 | 9.0 |
| 920 | 9.1 |
| 925 | 8.9 |
| 930 | 9.2 |

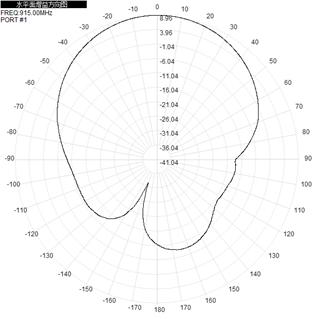

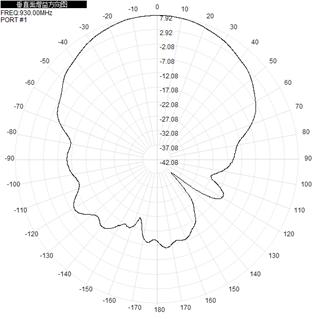

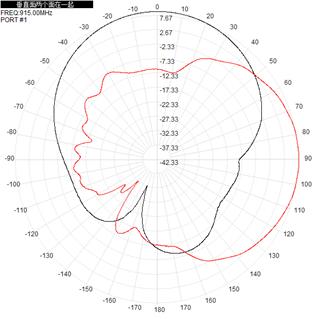

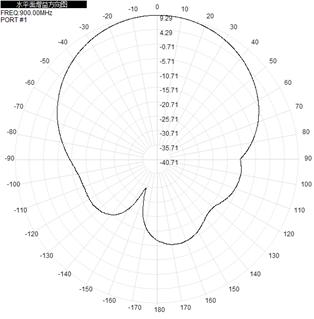

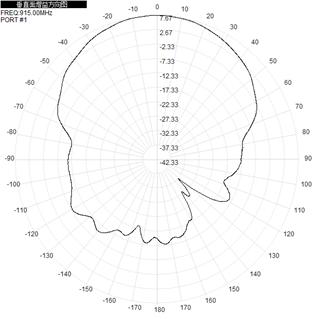

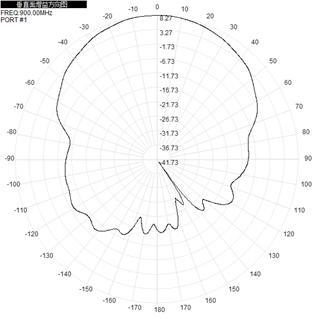

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 900MHz |  |
 |
 |
| 915MHz |  |
 |
 |
| 930MHz |  |
 |
 |
