Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | ||
| Port | Port1 | Port2 |
| Frequency | 902-928MHz | 902-928MHz |
| S.W.R. | <2.0 | <2.0 |
| Antenna Gain | 9dBi | 9dBi |
| Polarization | +45° | -45° |
| Horizontal Beamwidth | 60-65° | 65-66° |
| Vertical Beamwidth | 66-68° | 66-68° |
| F/B | >18dB | >18dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 340*280*80mm | |
| Radome material | UPVC | |
| Weight | 2.3Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
2. Antenna - S Parameter Test Data
2.1 VSWR

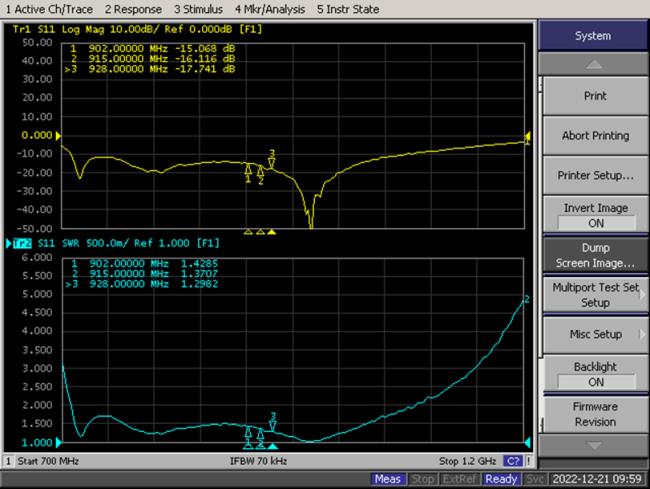

Port1 +45°
Port2 -45°
2.2 Total Efficiency & Gain:
| Port 1 +45° | Port 2 -45° | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 902 | 9.1762 | 902 | 8.9848 | |
| 904 | 9.1623 | 904 | 8.9836 | |
| 906 | 9.2145 | 906 | 9.0329 | |
| 908 | 9.3154 | 908 | 9.1358 | |
| 910 | 9.4156 | 910 | 9.2406 | |
| 912 | 9.4843 | 912 | 9.296 | |
| 914 | 9.5353 | 914 | 9.3349 | |
| 916 | 9.6105 | 916 | 9.4001 | |
| 918 | 9.6878 | 918 | 9.4748 | |
| 920 | 9.7453 | 920 | 9.5304 | |
| 922 | 9.7272 | 922 | 9.5167 | |
| 924 | 9.7226 | 924 | 9.5067 | |
| 926 | 9.7119 | 926 | 9.5041 | |
| 928 | 9.7102 | 928 | 9.5192 | |
2.3 Radiation Pattern

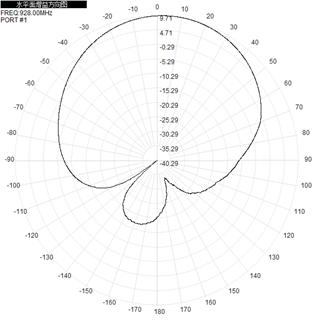

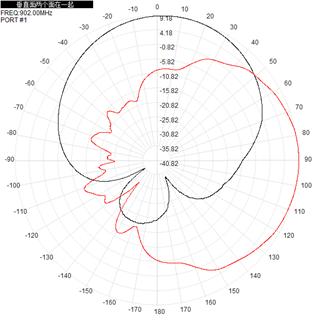

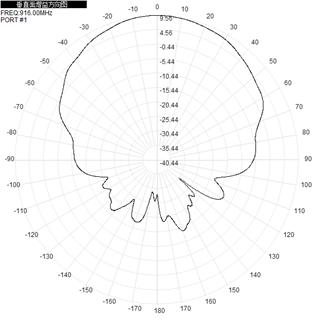

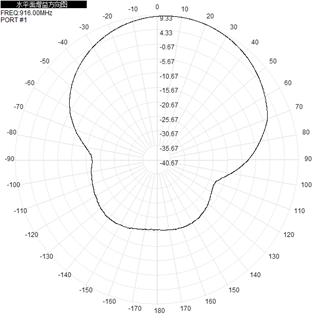

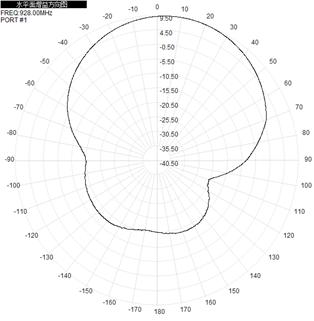

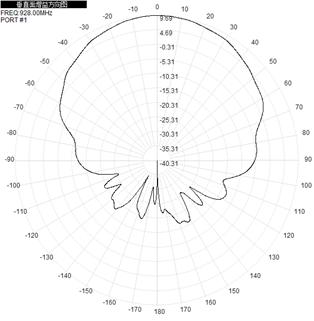

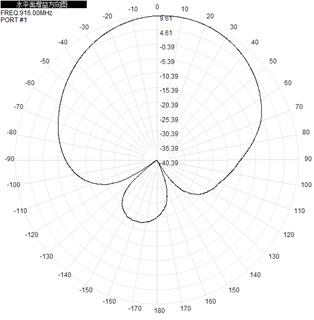

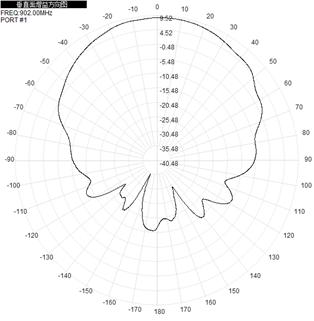

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

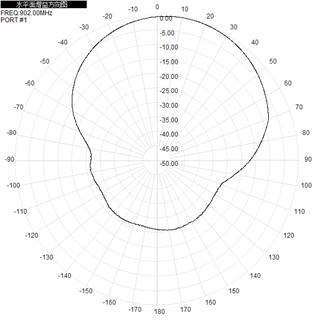

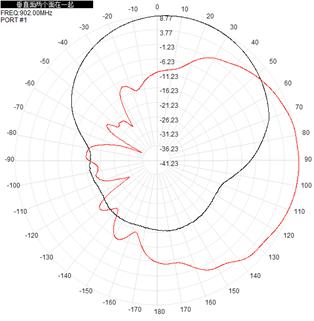

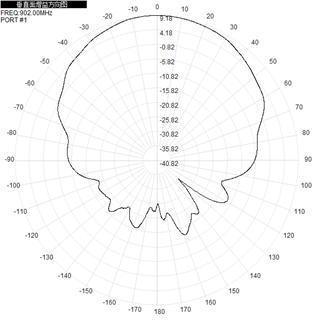

| 902MHz |  |
 |
 |

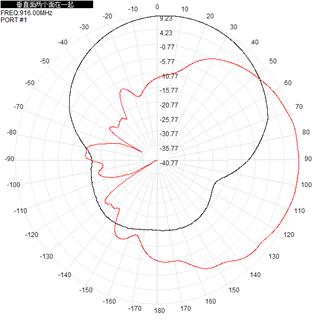

| 916MHz |  |
 |
 |

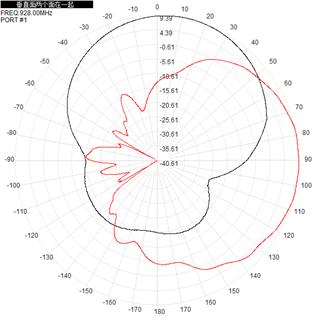

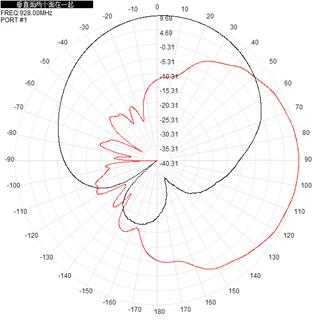

| 928MHz |  |
 |
 |
| Port2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 902MHz |  |
 |
 |
| 916MHz |  |
 |
 |
| 928MHz |  |
 |
 |
