Flat Panel Outdoor Directional Antenna 470-510M 6dBi 256x256x40
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 470-510MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 115° |
| Vertical Beamwidth | 104° |
| F/B | >5.6dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 256*256*40mm |
| Radome material | ABS |
| Weight | 1.0Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

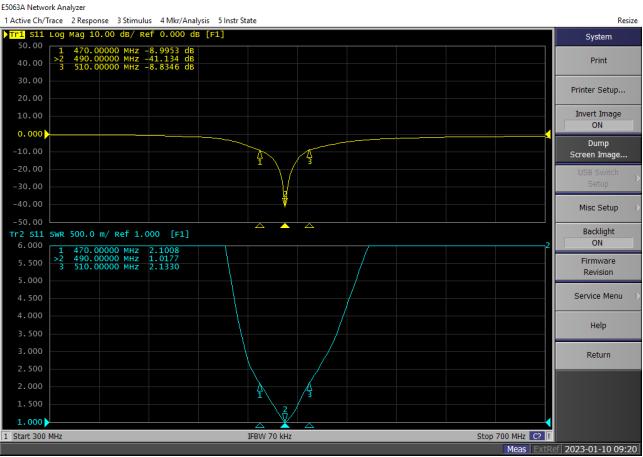

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 470 | 6.0514 |
| 475 | 6.0442 |
| 480 | 6.0179 |
| 485 | 6.0226 |
| 490 | 6.2337 |
| 495 | 6.1859 |
| 500 | 6.0933 |
| 505 | 6.0566 |
| 510 | 6.0425 |

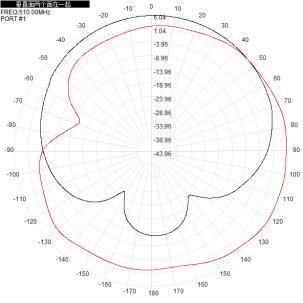

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

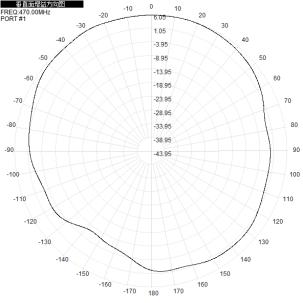

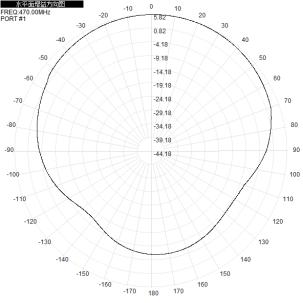

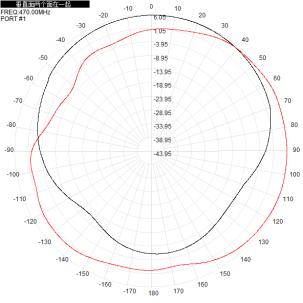

| 470MHz |  |
 |
 |

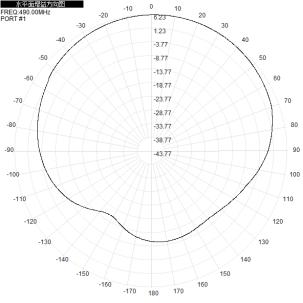

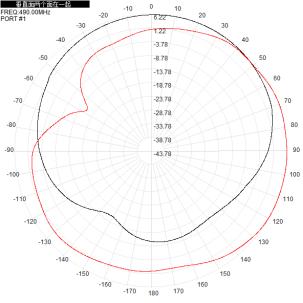

| 490MHz |  |
 |
 |

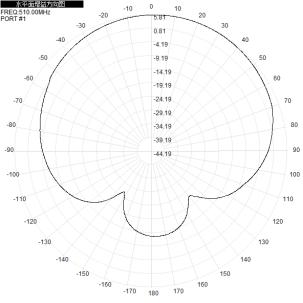

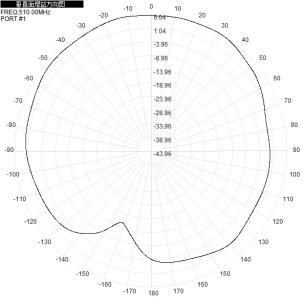

| 510MHz |  |
 |
 |
